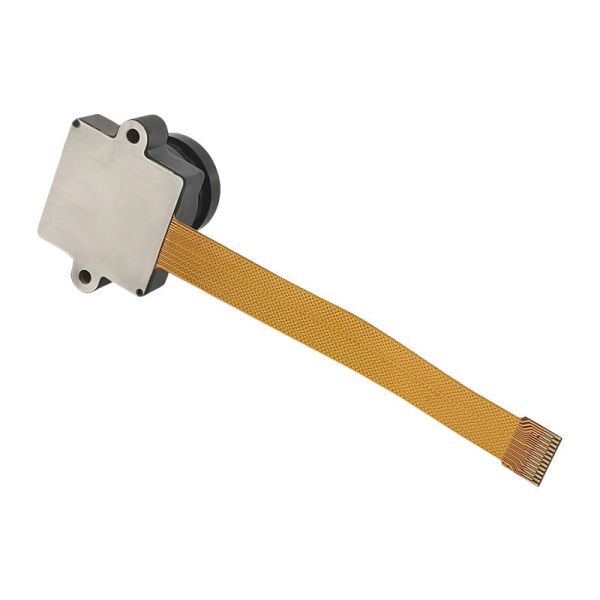

OS08A20 MIPI Camera Module 8 Million 4K 2K NIR HDR With Wide Angle Lens

OS08A20 NIR MIPI CSI-2 Camera Module:

TYS-08MA20-V1 MIPI camera module adopting a 1/1.8 inch OS08A20 NIR CMOS image sensor with 8 million pixels, it can achieve ultra-high resolution image capture of 3840 × 2160 4K 60fps, which can meet the demanding requirements of high-definition monitoring, high-end photography and other application scenarios for image quality. It is suitable for scenes that require a wide field of view and high image accuracy requirements, such as surveillance systems, robot vision, etc.

Low light night vision: MIPI FPC S08A20 camera module 3840*2160 8MP high resolution NIR nyxel technology enhances the near-infrared quantum efficiency of 850/940nm by three times, combined with an F2.0 large aperture wide-angle lens, achieving starlight level 0.01Lux low light imaging, and night monitoring without the need for supplementary lights.

HDR dynamic range: Support customized 4K 2K 60fps NIR HDR FF no distortion lens camera module with MIPI CSI-2 interface. Through four in one pixel triple exposure or 2-frame interleaved HDR, it preserves light and dark details in strong backlit scenes (such as tunnel entrances and exits, highly reflective objects), avoiding overexposure or underexposure.

Specification:

Technical & Mechanical:

• Analog: 2.8V, Core: 1.2V, I/O:1.8V
• Power requirements:Active: 240mA, XSHUTDOWN:＜10 uA
• Operating Temperature: -30°C to +85°C
• Stable image: 0°C to +60°C
• Support 2*2 binning mode
• Support for FSIN

More details of 4K 2K MIPI CSI-2 camera module:

1/1.8inch OS08A20 4K 2K 60fps MIPI camera module with RK3588 SOC board 4K high-speed imaging for Professional monitoring systems and law enforcement recorders. with its Nyxel technology, it can capture bright and clear ultra high definition 4K videos and images under various lighting conditions. It can effectively monitor larger areas and reduce the need for external light sources, thus lowering power consumption.

Professional manufacturer OS08A20 NIR 3840*2160 HDR low light FF wide angle lens UAV drone surveying and industrial inspection camera module with MIPI interface.Near infrared imaging helps identify ground features, power lines, and other targets, and can complete surveying tasks even at night, or inspect transmission lines, oil pipelines, etc. to detect abnormal situations in a timely manner.

MIPI CSI-2 camera module 1/1.8 inch OS08A20 4K 2K 60fps NIR with FF lens can be used for smart cat eyes, smart home monitoring cameras, and other devices. At night or in low light conditions, it can automatically switch to near-infrared mode to capture clear images of the situation outside or inside the door.
