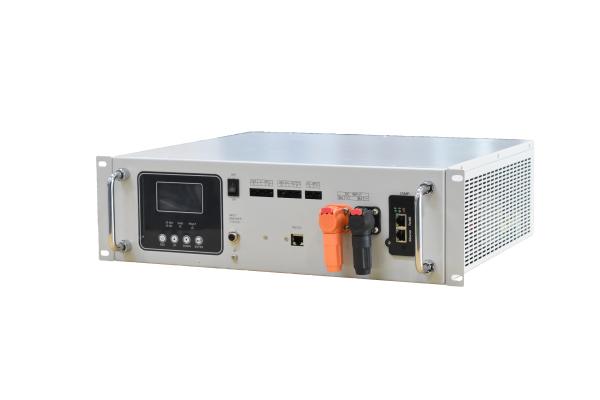

24V / 48V Rack Mount Inverter 3.5KW / 5.5KW Power Supply For CCTV Camera / Telecom
24V / 48V Rack Mount Inverter 3.5KW / 5.5KW Power Supply For CCTV Camera / Telecom
24V / 48V Rack Mount Inverter 3.5KW / 5.5KW Power Supply For CCTV Camera / Telecom
24V / 48V Rack Mount Inverter 3.5KW / 5.5KW Power Supply For CCTV Camera / Telecom
Specifications
Brand Name :
Rack Mount Inverter
Model Number :
3.5KW/5.5KW
Certification :
CE
Place of Origin :
MADE IN CHINA
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Export Standard Package
Input voltage :
230v
Output frequency :
50/60Hz
Output voltage :
24V / 48V
Application :
CCTV Camera,telecom,Communication,LED Lighting
Type :
Rack Mount
Color :
Black White
Product name :
Rack Mount Inverter
Efficiency :
> 95%(Rated load, battery full charged)
Capacity :
3.5KW/5.5KW
Warranty :
1 Year
Working temperature :
-10~50℃
Size :
300 x 110 x 475(mm)
Weight :
10~11.5kgs
Description
Rack Mount Inverter 3.5KW / 5.5KW Power Supply Rack Mount Solar Charger And Battery
Rack Mount Inverter Product Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers
user- configurable and easy-accessible button operation such as battery charging current, mains/solar
charger priority, and acceptable input voltage based on different applications.
Rack Mount Inverter Features :
  1. Pure sine wave inverter.
  2. Configurable mains input voltage range for home appliances and personal computers via load requirements.
  3. Configurable battery charging current based on load requirements.
  4. Configurable Mains/Solar Charger priority via LCD setting.
  5. Compatible to mains input and generator input.
  6. Auto restart while mains is recovering.
  7. Overload/Over temperature/ short circuit protection.
  8. Smart battery charger design for optimized battery performance.
  9. Cold start function.
  10. Remote monitor function via SNMP Card(optional).
Basic System Architecture
The following illustration shows basic application for this solar inverter. It also includes following devices
to have a complete running system:
  • Generator or Mains.
  • PV modules.
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type
appliances such as tube light, fan, refrigerator and air conditioner.

Function Key :

Function Key Description
ESC To exit setting mode
UP To go to previous selection
DOWN To go to next selection
ENTER To confirm the selection in setting mode or enter setting mode

Rack Mount Inverter Technical Parameter :

Model 3.5KW 5.5KW
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal Input Voltage 230Vac
Low Loss Voltage 170Vac±7V(UPS);90Vac±7V(Appliances)
Low Loss Return Voltage 180Vac±7V(UPS);100Vac±7V(Appliances)
High Loss Voltage 280Vac±7V
High Loss Return Voltage 270Vac±7V
Max AC Input Voltage 300Vac
Nominal Input Frequency 50Hz/60Hz(Auto detection)
Low Loss Frequency 40±1Hz
Low Loss Return Frequency 42±1Hz
High Loss Frequency 65±1Hz
High Loss Return Frequency 63±1Hz
Output Short CircuitProtection Circuit Breaker
Efficiency (Mains Mode) > 95%(Rated load, battery full charged)
Transfer Time 10ms typical(UPS);20ms(Appliances)

Model 3.5KW 5.5KW
Rated Output Power 3.5KW 5.5KW
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230Vac±5%
Output Frequency 50Hz
Peak Efficiency 93%
Overload Protection 5s@±150%load;10s @110%～150%load
Surge Capacity 2* rated power for 5 seconds
Nominal DC Input Voltage 24.0Vdc 48.0Vdc
Cold Start Voltage 23.0Vdc 46.0Vdc
Low DC Warning Voltageload<50%load≥50% 23.0Vdc 46.0Vdc
22.0Vdc 44.0Vdc
Low DC Warning ReturnVoltageload<50%load≥50% 23.5Vdc 47.0Vdc
23.0Vdc 46.0Vdc
Low DC Cut-off Voltageload<50%load≥50% 21.5Vdc 43.0Vdc
21.0Vdc 42.0Vdc
High DC Recovery Voltage 32.0Vdc 62.0Vdc
High DC Cut-off Voltage 33.0Vdc 63.0Vdc
No Load PowerConsumption <35W
