Specifications
Brand Name :
Hybrid Solar Inverter
Model Number :
CNS110 OFF-GRID INVERTER
Certification :
CE
Place of Origin :
MADE IN CHINA
Payment Terms :
T/T
Delivery Time :
2 weeks
Packaging Details :
Export Standard Package
Price :
Negotiable
Size :
300*110*462
Input Voltage Range :
90 – 280VAC (Suitable for household appliances),170-280VAC (suitable for personal computers)
Output voltage :
230VAC
Type :
Off-grid solar inverter
Model :
CNS110 3500-24, CNS110 5500-48
Nominal Capacity :
3.5KW/5.5KW
Nominal Voltage :
24VDC/48VDC
MPPT Operating Voltage Range :
120-450VDC
MPPT :
100A
Color :
Blue
Description

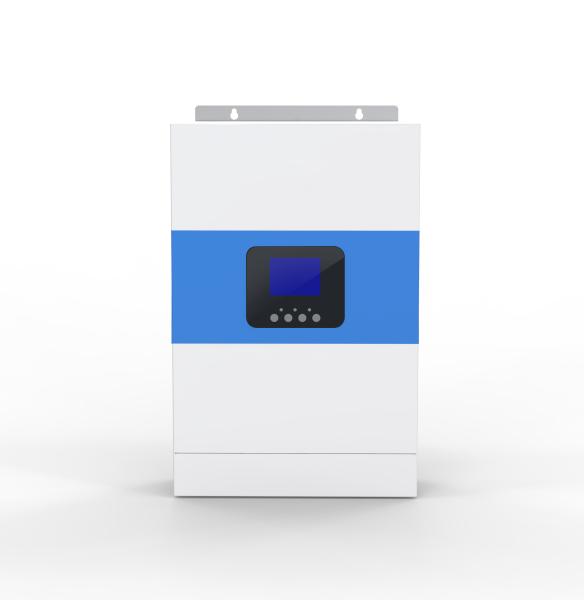

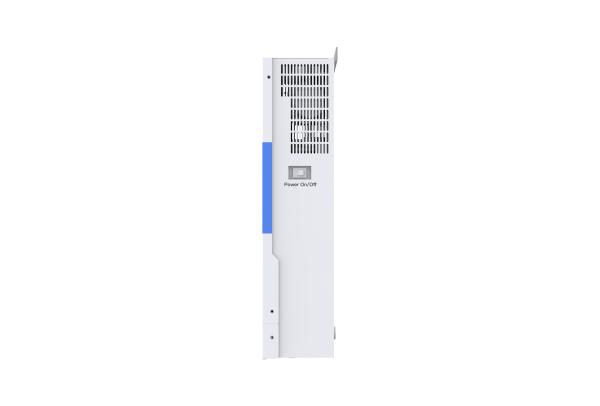

230VAC CNS110 OFF-GRID INVERTER

Hybrid Solar Inverter Product Description:

  1. Hybrid Solar Inverter optional Remote Control Panel available
  2. Hybrid Solar Inverter compatible to mains voltage or generator power - Overload and short circuit protection
  3. Hybrid Solar Inverter selectable charging current based on applications -Pure sine wave inverter
  4. Hybrid Solar Inverter smart battery charger design
  5. Hybrid Solar Inverter configurable AC/Solar input priority via LCD setting -Auto restart while AC is recovering -Built-in MPPT solar charge controller
  6. Hybrid Solar Inverter parallel operation with up to 6 units

Hybrid Solar Inverter :SCENARIOS

Hybrid Solar Inverter mainly used in household solar power generation, used to drive household small power load of electrical appliances.

Hybrid Solar Inverter Technical Parameter:

Model CNS110 3500-24 CNS110 5500-48
Rated power 3500VA/3000W 5500VA/5500W
Input
Voltage 230VAC
Voltage range 170-280VAC(suitable for personal computers)

90-280VAC(Suitable for household appliances)
Frequency range 50Hz/60Hz(Automatic adaptation)
Output
Grid voltage regulation(battery mode) 230VAC±5%
Surge power 7000VA 11000VA
Efficiency >93.6%
Switch time 10ms
Waveform Pure sine wave
Battery
Battery voltage 24VDC 48VDC
Float charge voltage 27VDC 54VDC
Overcharge protection 33VDC 63VDC
PV Charge &AC Charge
PV maximum open-circuit voltage 500VDC 500VDC
PV maximum power 5500W 5500W
Maximum grid 80A 80A
MPPT operating voltage range 120VDC-450VDC 120VDC-450VDC
PV maximum 100A 100A
charge current
Physical properties
Size 300*110*462
Net weight (kg) 10.5 11.5
Communication interface RS232
Environment
Humidity Relative humidity (non-condensing)
Operating temperature -10℃-50℃
Storage temperature -15℃-60℃
