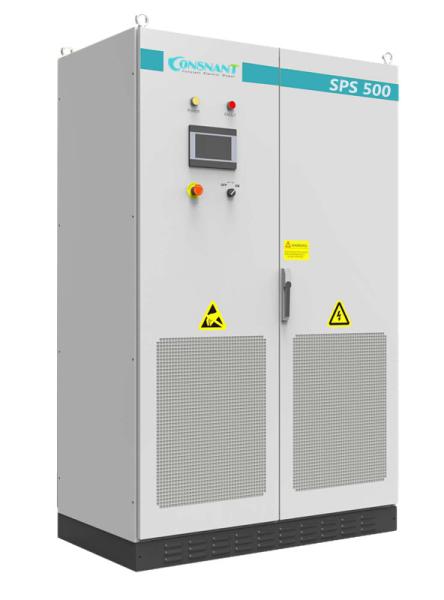

693kva 50-630KW Bidirectional Battery Inverter IP20 Solar Charger
693kva 50-630KW Bidirectional Battery Inverter IP20 Solar Charger
Specifications
Brand Name :
CONSNANT
Model Number :
Runner series
Certification :
CE,ISO9001/ISO14001
Place of Origin :
China
MOQ :
2Uint
Price :
Negotiable
Payment Terms :
L/C, T/T,,
Supply Ability :
5000 pieces per month
Delivery Time :
15 days after receiving 30% deposit
Packaging Details :
standard export package
Apparent power :
55-693kva
Rated power :
50-630kw
Rated voltage :
400V
Rated current :
72-909A
Rated frequency :
50/60HZ
THDI :
<3%
AC connection :
3/N/PE
Overload capacity :
110%-10min，120%-1min
Battery voltage :
600-700VDC
DC voltage range :
500-900V
Max. efficiency :
95.5-98.5%
Protection degree :
IP20
Weight :
450-900kg
Display :
Touch screen
Description
Bidirectional battery inverter from 50KW to 630KW,can be used alone or with solar charge and other accessories
Features
  • Flexible Configuration
Configured with solar charge controller, bypass cabinet or stand alone.
  • Programmable working mode
Pak-shaving, back-up, use the system however you want it
  • Scalable

Applicable in MW level system by paralleling multiple units

  • Touchscreen LCD

More convenient for parameter setting and maintenance

  • Dry contact output

Supports remote control of DG

Specification

CNS SPS50 CNS SPS100 CNS SPS 250 CNS SPS 500 CNS SPS 630
AC(grid-connected)
Apparent power 55kva 110kva 275kva 550kva 693kva
Rated power 50KW 100KW 250KW 500KW 630KW
Rated voltage 400V
Rated current 72A 144A 361A 722A 909A
Voltage rated 310V-450V
Rated frequency 50/60HZ
Frequency range 45-55/55-65HZ
THDI <3%
PF 0.8 lagging-0.8leading
AC connection 3/N/PE
AC(Off-grid)
Apparent power 55KVA 110KVA 275KVA 550KVA 693KVA
Rated power 50KW 100KW 250KW 500KW 630KW
Rated voltage 400V
Rated current 72A 144A 361A 722A 909A
THDU <=2%linear
Rated frequency 50/60HZ
Overload capacity 110%-10min 120%-1min
DC(battery and PV)
Rated power 50KW 100KW 250KW 500KW 630KW
Current regulation ±1%
Voltage regulation ±1%
Voltage ripple <3%
Current ripple <2%
Rated voltage 600VDC 600VDC 600VDC 700VDC 700VDC
Voltage range 500V-820V 600V-900V
Rated current 84A 167A 417A 714A 900A
General information
Max.efficiency 95.5% 97.1% 97.3% 98.5% 98.5%
Protection degree IP20
Noise emission <65db(A)@1m
Environment teperature -25℃…+55℃
Cooling Forced-air
Relative humidity 0-95%non-condensing
Max.altitude 6000m(derate over 3000m)
Dimension(W*H*D) 600*1630*800mm 1100*1890*850mm 1600*2080*850mm 1200*1900*800mm 1200*1900*800mm
Weight 450kg 820kg 1465kg 900kg 900kg
Build-in transfer Yes Yes Yes NO NO
Transfer between on/off grid Manual(default)Automatic(optional)<=10ms
Communication
Display Touch screen
Communication interface RS485/CAN
Certificate CE,MEA,PEA,EN,IEC
