LED Display Single Phase Online UPS Double Conversion Tower 2kva 3kva Standard Model
LED Display Single Phase Online UPS Double Conversion Tower 2kva 3kva Standard Model
Specifications
Brand Name :
CPSY
Model Number :
HP1102B & HP1103B
Certification :
CE
Place of Origin :
China （Shenzhen）
MOQ :
1pc
Price :
usd/pcs
Payment Terms :
T/T
Supply Ability :
2000pcs
Delivery Time :
30days
Packaging Details :
Brown carton
Phase :
Single Phase
Type :
On-line
Transfer time :
0 ms
Wave form :
Pure Sine Wave
Display :
LED
Warranty :
1 year
Description

Single phase in/out Tower online UPS

Model HP1101B HP1101H HP1102B HP1102H HP1103B HP1103H
rated power 1KVA/800W 2KVA/1600W 3KVA/2400W
Input and output modes Single phase in single phase out
Electrical Characteristics
Product topology On-line double conversion IGBT with micro-controller
Input voltage 220/230/240V
Input voltage range 122-300V Full power operation
Output Voltage / Output Distortion 220V/230V/240V ±1 %, THDU<3%
frequency range 50/60Hz, auto-detection
effectiveness Up to 90%(Online)
Overload capacity 105%-125% : 1min, 125%-150% : 30s; 150%-200% : >300ms.
Power factor 0.98
Conversion time Zero millisecond conversion
Battery voltage 24VDC 36VDC 48VDC 72VDC 72VDC 96VDC
Charging current 1A 6A 1A 7A 1A 7A
Battery type Valve regulated lead-acid battery
Standby time/min 〉7/14 / 〉11/31 / 〉5/16 /
(Full load / half load)
Communication
Communication port RS232
Scalable slots 1 pcs (Suitable for SNMP cards, ModBus-RTU cards, dry contact cards)
Operating environment, technical specifications and standards
Operating environment temperature and humidity 0 to 40°C / 20%~90% non-condensing
Noise <55dB
Safety IEC/EN 62040-1
EMC IEC/EN 62040-2
Certification TLC / radio certification / energy-saving certification
Physical parameters
W 146 146 193 193 193 193
L 515 530 327 327 327 327
H 608 455 400 400 400 400
Weight(kg) 10 6 18 9 24 9.5

Images

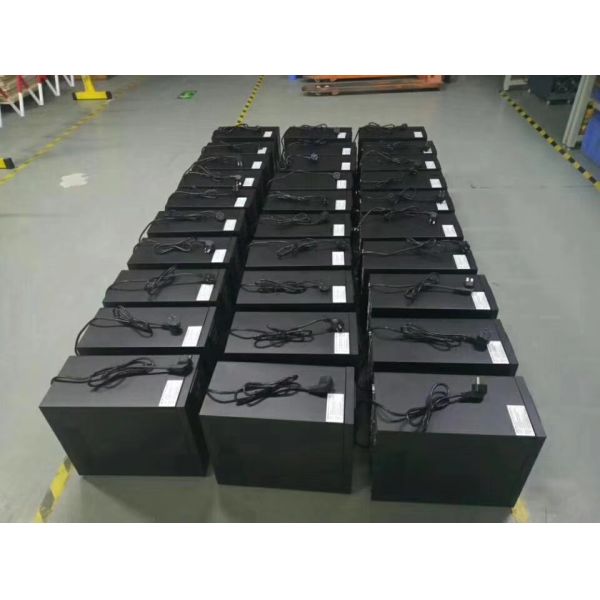

LED Display Single Phase Online UPS Double Conversion Tower 2kva 3kva Standard Model
