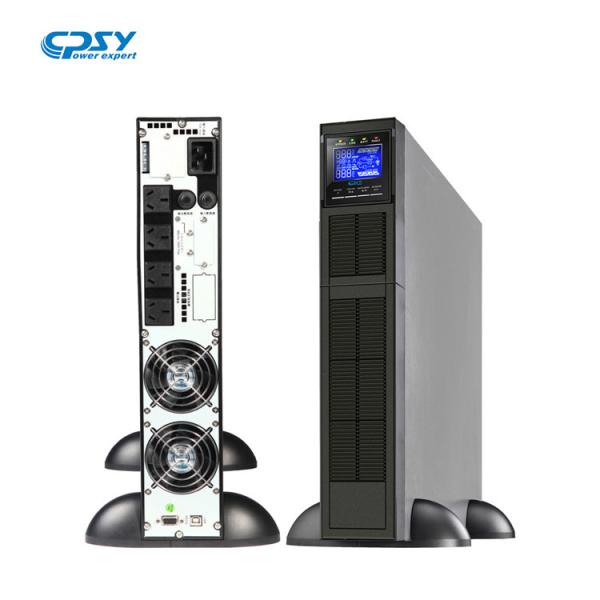

Pure Sinewave Rack Mount Server Power Supply 3kva/2400w For IT Infra Structure
Pure Sinewave Rack Mount Server Power Supply 3kva/2400w For IT Infra Structure
Specifications
Brand Name :
CPSY
Model Number :
HPR1103H
Certification :
CE & Rohs
Place of Origin :
China Shenzhen
MOQ :
1pc
Price :
usd/pcs
Payment Terms :
T/T
Supply Ability :
2000pcs
Delivery Time :
30-35days
Packaging Details :
brown carton
Phase :
Single Phase
Wave form :
Pure Sinewave
Input voltage range :
115-300VAC±5
Weight :
14.2kg
Type :
rack mount online ups
Display :
LCD
Description

3kva/2.4kw Rack mount single phase in/out online ups

Model HPR1101B HPR1101H HPR1102H HPR1103H
Phase Single phase and earth ground
Power ratting 1000VA/800W 1000VA/800W 2000VA/1600W 3000VA/2400W
INPUT
Voltage range 110-300VAC @ 50% load or 173-300VAC @ 100% load
Frequency Range 50Hz/60Hz (auto sensing)
Power factor ≧0.99 @ 100% load
OUTPUT
Norminal voltage 200/208220/230/240VAC
Voltage range ±1%
(battery mode)
Frequency range (Normal mode) 46Hz-54Hz or 56Hz-64Hz

Frequency range (battery mode) 50Hz±0.1Hz or 60Hz±0.1Hz
Waveform Distortion ≦3%THD(linear load),≦5%THD(non-linear load)
Power factor 0.8
Crest Factor 3:01
Transfer time 0ms
Waveform Pure Sine wave
EFFICIENCY
Normal Mode 89% 89% 89% 90%
BATTERY
Battery Type Sealed lead acid maintenance free battery
Quantity(pieces) 2 3 6 8
Charging Current(MAX) 1.0A 6.0A
DISPLAY
LCD Load, battery capacity, normal mode, battery mode, bypass,failure
WARMING
Battery mode Sounding every 4 seconds
Low battery Sounding every 1 seconds
Overload Sounding every second
Fault Contentiously Sounding
PHYSICAL characteristic
Dimension,D×W×H (mm) 410×438×88[2U] 310×438×88[2U] 410×438×88[2U]
Net Weight(KGS) 15.5 9 12 14.2
WORK ENVIRONMENT
Humidity 20~90% (Non-Condensing), 0~40℃ centigrade
Noise level less than 50dB @ 1m
MAINTENANCE
Modbus RS-232/RS485 Support Windows 2000/2003/XP/Vista/2008/7/8,Linux,Unix and MAC
Optional SNMP Power management from SNMP manager and Web browser
