High Quality HDPE Cross Laminated Strength Film 60F for Bitumen Waterproofing Membrane Sheet Blow Molding & Cutting

Specifications

Processing Service :

Cutting

Model Number :

Strength Cross Laminated Film 60F

Brand Name :

upasschina

Place of Origin :

Shanghai, China

Plastic Modling Type :

Blow Molding

Product name :

Strength Cross Laminated Film 60F

MOQ :

5000 Square Meter

Type Science and Technology :

Casting/Blow Molding

size :

100*55*55cm/roll

MOQ :

Description

Products Description

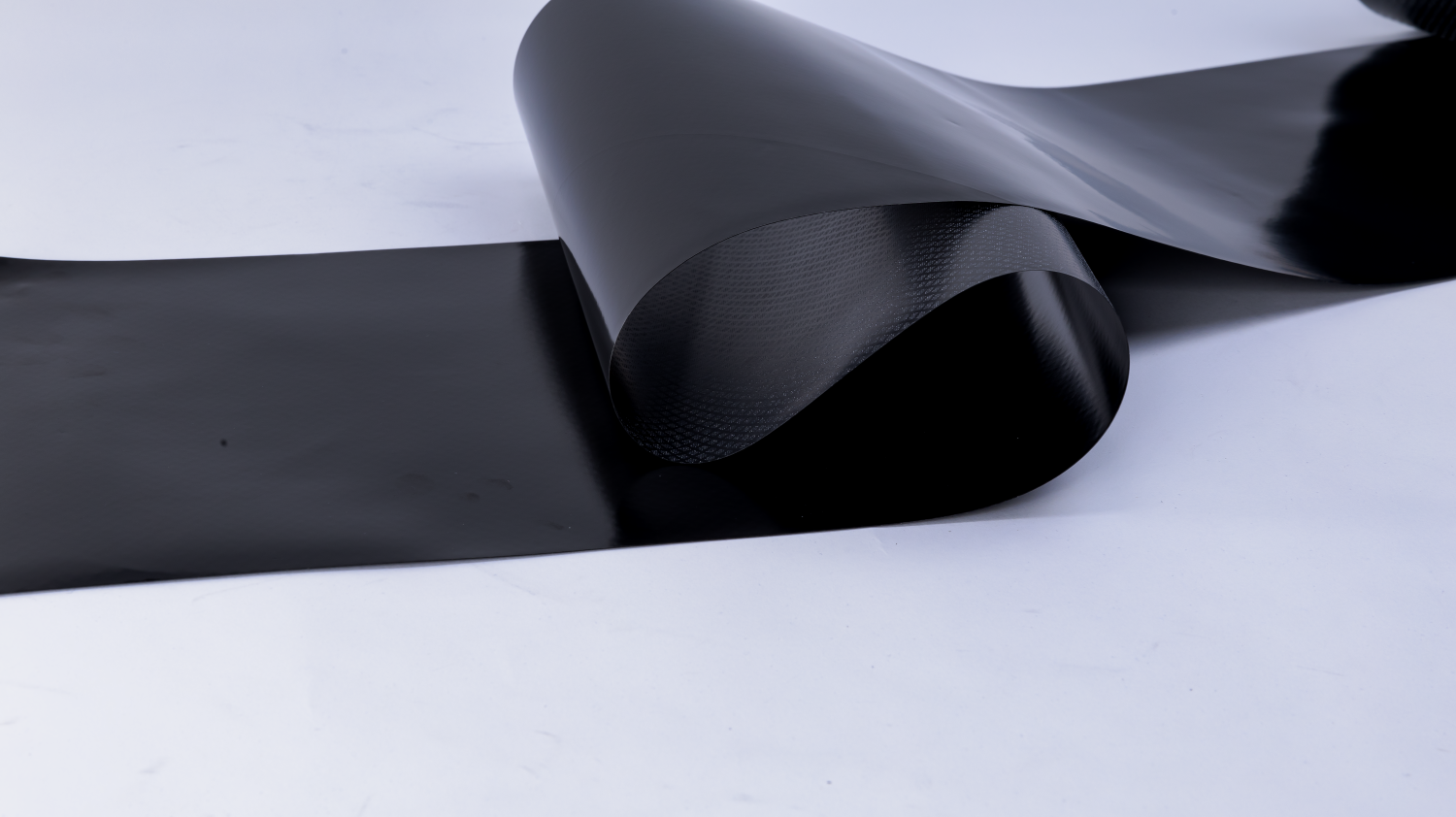

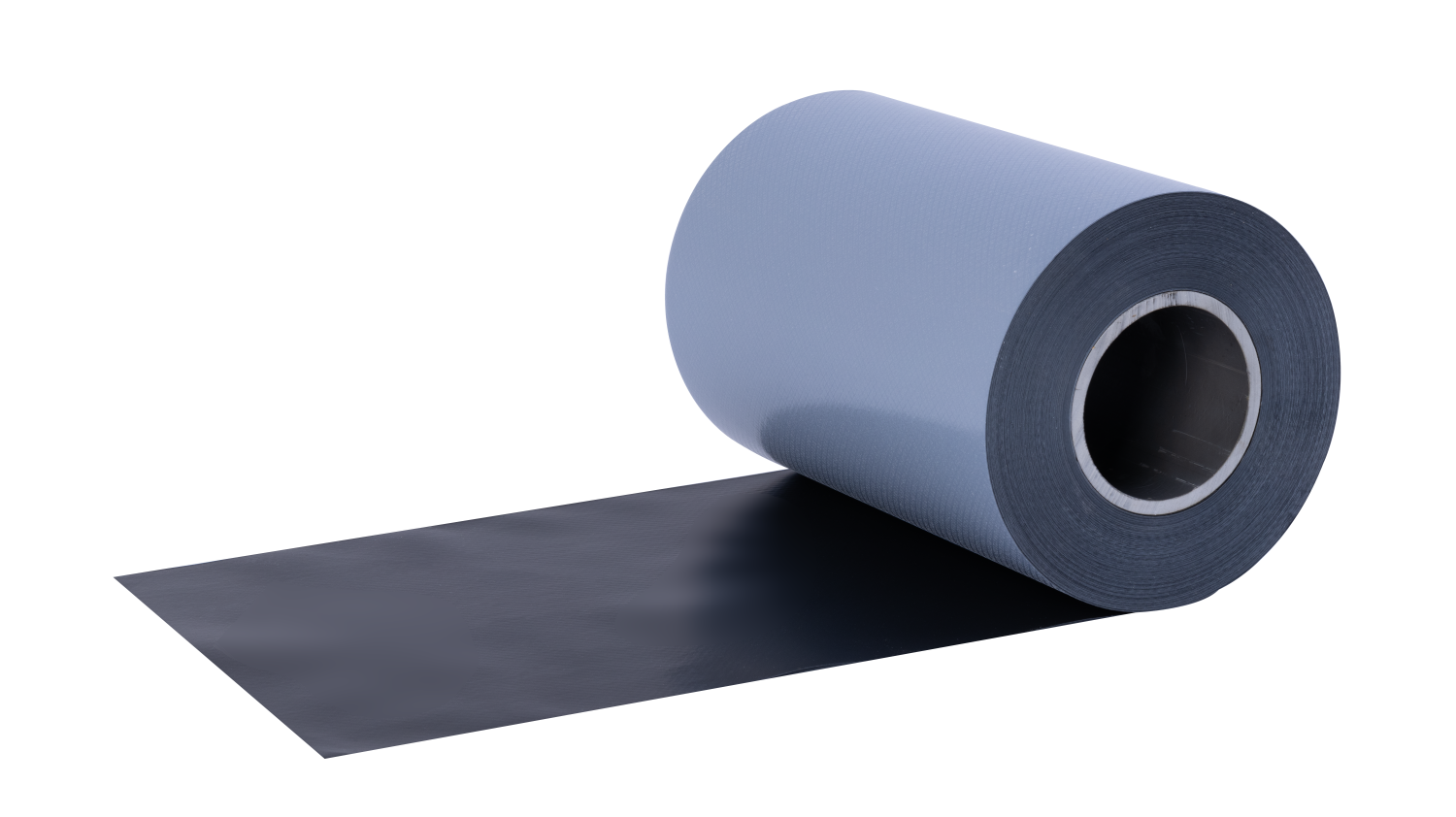

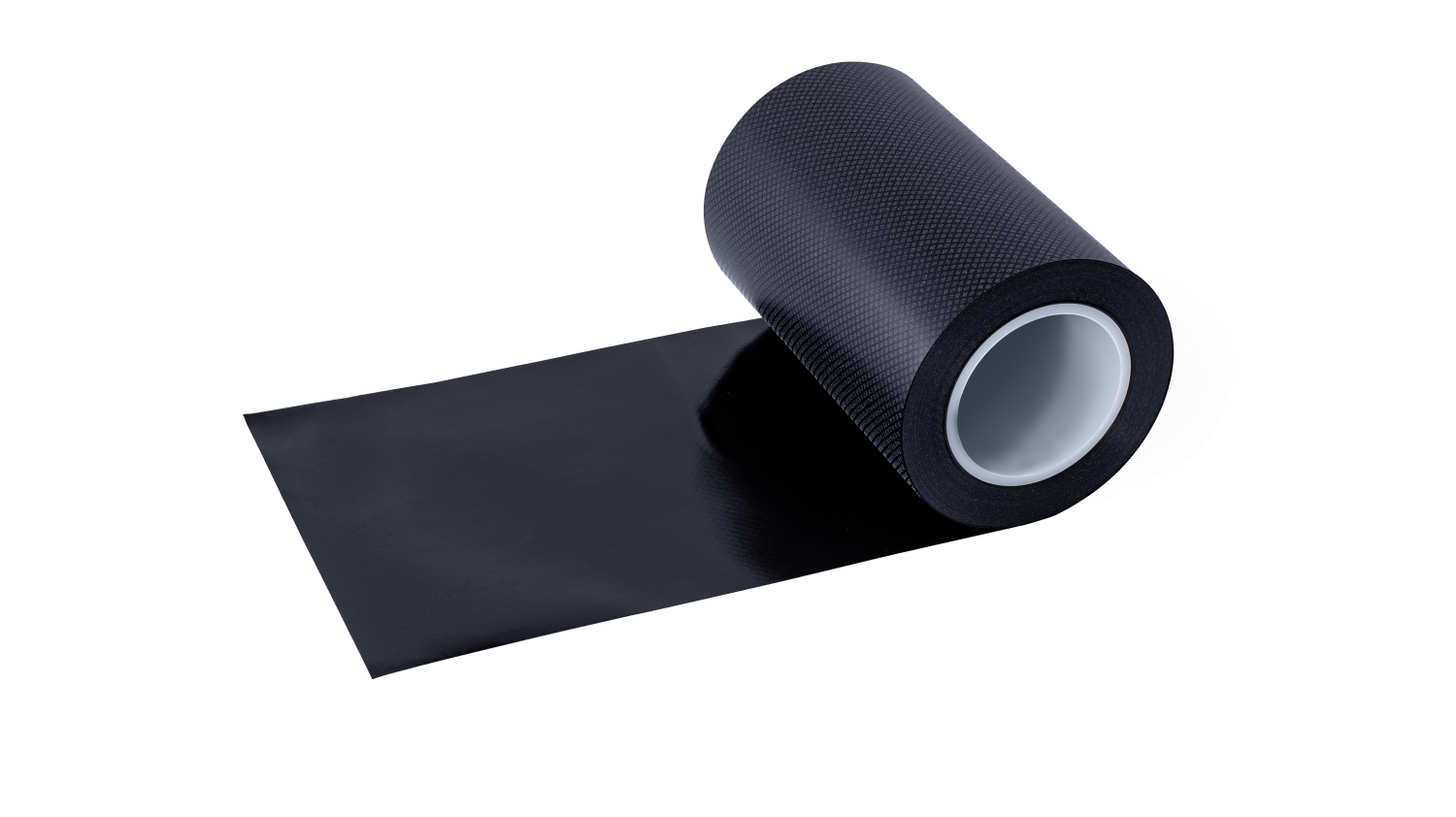

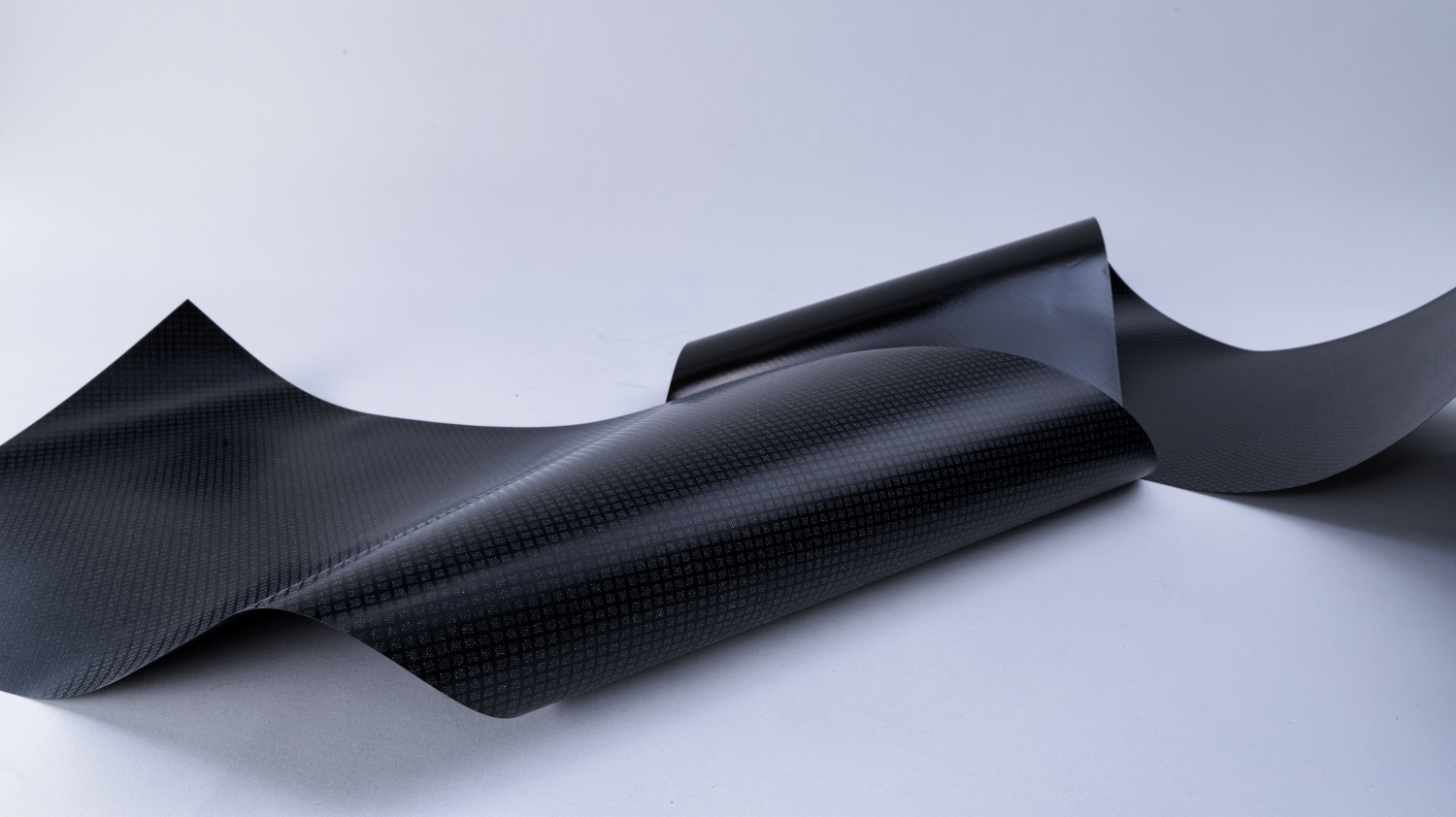

Strength Cross Laminated Film 60F

Material and Structure: High-density polyethylene(HDPE) with cross lamination Colors: blue, black, gray, white, green, etc Features: High Strength Cross Laminated HDPE Film – SDM-60F is an anti-slip cross laminated film, and the anti-slip layer can be made into various patterns according to customer requirements. At the same time, it also has the characteristics of a cross laminated film, which is stable and does not deform; High strength and high elongation; Tear resistance; High and low temperature resistance; Has unique puncture resistance; Self healing and sustained tear resistance, as well as excellent water tightness of the nail rod; Has the ability to resist ultraviolet radiation. Usage: Used as surface material for waterproofing membranes, tapes, underlayment, special packaging, label markets, etc. Advantages: 1.High tear performance, and have good printing effects. 2.The biggest advantage is anti-slip, suitable for waterproofing membranes on slopes and sloping roofs, and construction safety.

Data Sheet
Item			Unit	Performance Index
Thickness			mm	0.09-0.265
Width			mm	900-1200
Sleeve ID			mm	76
Frictional Coefficient			/	≥0.6
Tensile Properties	Tensile Strength	Mpa	≥50
	Maximum Tension	(N/50mm)	≥200
	Elongation at Maximum Tension	%	≥250
	Elongation at Break	%	≥250
Nail Rod Tear Strength			N	≥60
Dimensional Stability at 90 â„ƒ			%	≤1.5%
Tear Strength			N	≥25
Heat Resistance(70 â„ƒ, 24h)			â„ƒ	After applying asphalt, the maximum curling of the polymer film or tire base edge shall not exceed 1/4 of the edge length
Low Temperature Flexibility			â„ƒ	-30 â„ƒ, no cracks, no layering
Aging Test (70 â„ƒ, 7days)	Appearance		No bubbles, no layering
	Tensile Retention Rate	%	≥90
	Elongation Retention Rate	%	≥80

Recommend Products

Company Profile

Product packaging

FAQ

Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.

Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,we can offer 100-200m/roll for free, but shipping cost need you to paid.

Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is about 30 days for 20GP container.

Q4: How to pay for your goods?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).
