100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
Specifications
Model Number :
PP Release Film
Brand Name :
upasschina
Place of Origin :
Shanghai, China
Price :
$0.07-0.18/rolls
Processing Service :
Cutting
Plastic Modling Type :
Blow Molding
Product name :
PP Embossed Film
MOQ :
1 T
Type Science and Technology :
Casting/Blow Molding
size :
50MIC*1050cm/roll
Color :
Light gray black
Application :
Construction,Tape
Thickness :
0.03-0.15mm
Width :
100-2000mm
Description
Embossed Polypropylene Silicone Coated Release Liner
Embossed Polypropylene (PP) film combines excellent material properties with the physical advantages of embossed structure, making it an ideal surface material for high-performance waterproof membranes.
Key Advantages
  • High flexibility - creped surface easily conforms to curved and irregular shapes
  • Mechanical durability - textured surface enhances tensile strength
  • Silicone coating - enables easy release from adhesives
  • Chemical resistance - effective against oils, greases, tar, and water
  • Dimensional stability - remains flat and does not wrinkle during application
  • Customization options - available in various widths and colors to match production needs
Technical Specifications
Item Test Standard Performance Index
Thickness ASTM D3767 ±0.005mm | 0.035
g/sqm ASTM D638 35g/m² | 32
Max. Force ASTM D882 MD ≥600N/m | 760
TD≥600N/m | 730
Elongation @ Break ASTM D882 MD≥200% | 656
TD≥200% | 732
Peeling Force FTM10 ≤20g | 15
Subsequent Adhesion Rate Q/320585 UPA 01-2019 ≥80% | 87
Applications
  1. Industrial Tape Manufacturing
    Primary use in technical tapes including butyl tape release film for roof and façade sealing, insulating and transfer tapes for construction applications, ridge tapes for ventilation and chimney flashing, and polyurethane/bitumen-based tapes for waterproofing systems. The embossed film serves as protective liner, shielding adhesive layers from contamination and moisture while allowing smooth peeling without stretching or tearing.
  2. Construction and Roofing
    Ideal as separating and protective layer in torch-on roofing membranes, bitumen shingles, roofing and sealing tapes, and repair components for roofs and foundations. Performs exceptionally in challenging environments due to resistance to tar, moisture, and weather conditions.
  3. Technical and Automotive Industries
    Used as spacer or separator during assembly, protective film for delicate or painted surfaces, and carrier layer for laminates or self-adhesive components in vehicles.

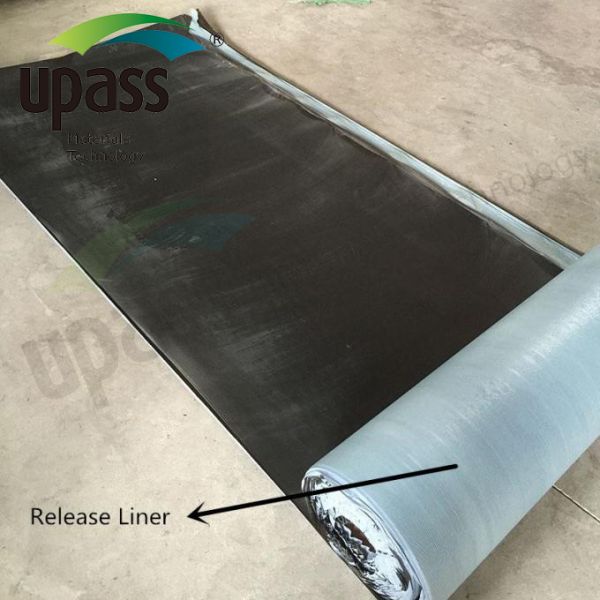

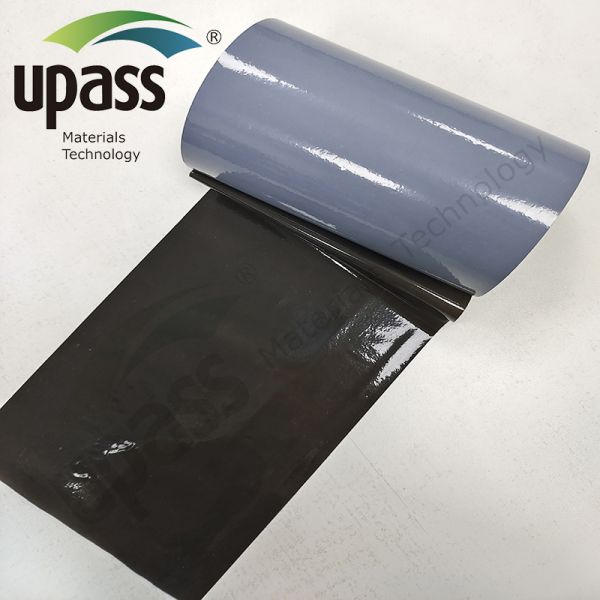

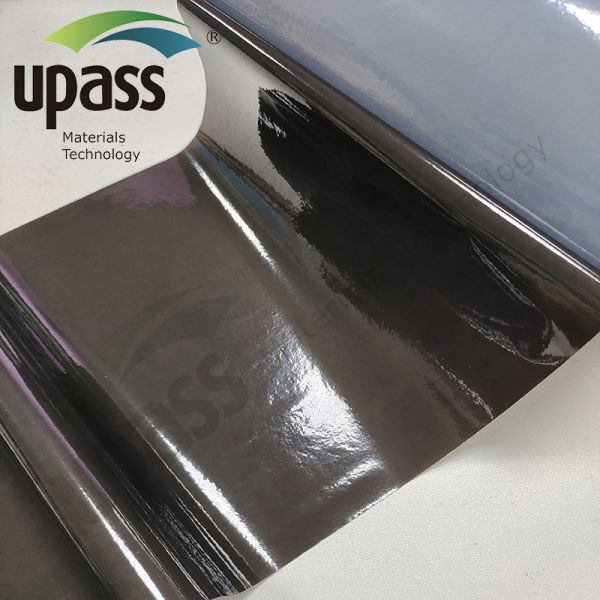

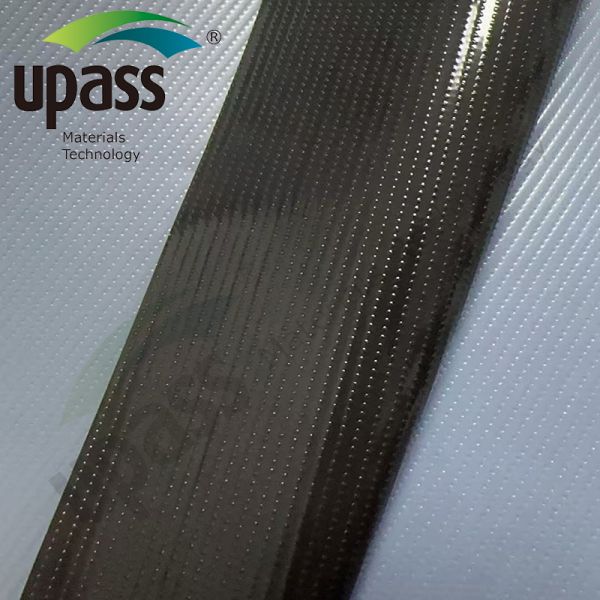

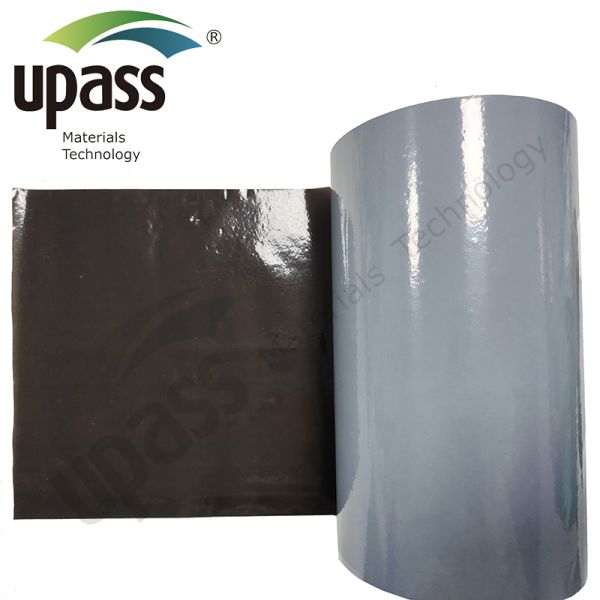

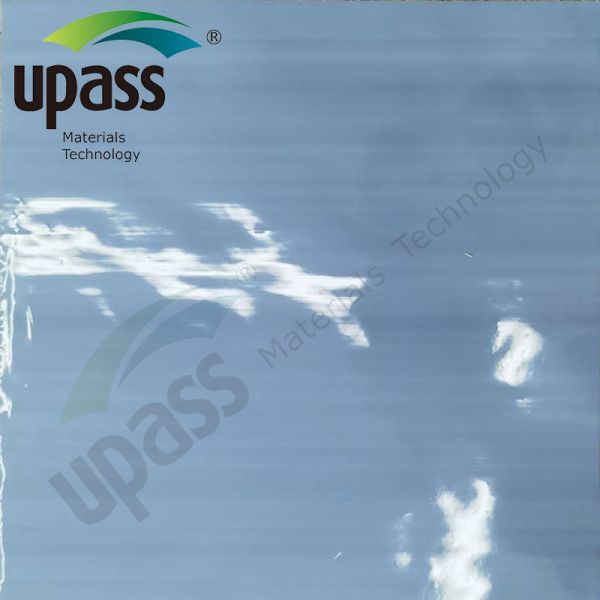

Product Images
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane

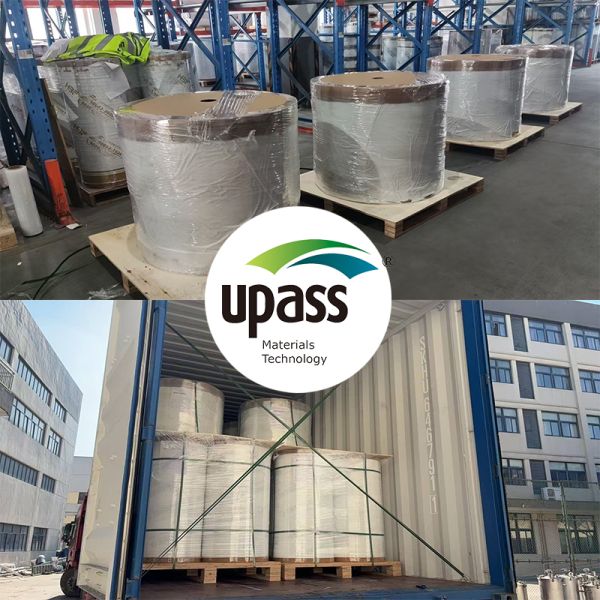

Packaging & Shipping
100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane 100-2000mm Width Embossed Polypropylene Silicone Coated Release Liner for Bitumen Waterproof Membrane
