150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
Specifications
Model Number :
VMPET Laminated Film
Brand Name :
UPASS
Place of Origin :
Shanghai, China
MOQ :
50000 square meters
Price :
$0.25/square meters 50000-499999999 square meters
Material :
Laminated Material
Type :
Barrier Film
Feature :
Moisture Proof
Grade :
Machine Grade
Hardness :
Semi-Rigid
Industrial Use :
Isolation Liner
length :
Other
Logo printing :
Custom
Width :
Other, 700μm,customized
Product Name :
VMPET Laminated Film
Application :
Moisture barrier, Insulation foil for shipping container 20
Thickness :
150μm,customized
Features :
Heat-sealed for a strong and high-strength finish
Description
Machine Grade Laminated Material
Extra Thick 150 Micron PE Plastic Film, Metalized Polyester VMPET Aluminum Moisture Proof
Product Overview
Insulation Material Customized Width Soft Moisture Proof Composited VMPET Metallized PET PE Laminate Film Heat Sealed Roll Packaging
The aluminum coating provides an extremely high water vapor barrier, effectively preventing "container rain" (condensation) from damaging goods during maritime transport or due to diurnal temperature variations. This is crucial for moisture-sensitive goods such as electronics, paper products, high-end furniture, textiles, and food.
Material Composition
Outer Layer: Aluminized PET Film - PET offers extremely high mechanical strength, excellent abrasion resistance, and rigidity. The aluminized layer provides superior barrier properties, effectively blocking water vapor, oxygen, and light.
Inner Layer: PE (Polyethylene) Film - Offers good flexibility, impact resistance, and excellent heat-sealing properties.
Key Advantages
  • Superior Moisture and Water Resistance: The aluminized layer provides an extremely high water vapor barrier, effectively preventing "container rain" (condensation) from damaging goods during sea transport or due to diurnal temperature variations.
  • Gas Barrier and Odor Preservation: Prevents external odors from intruding while also preventing the goods' own odors from escaping, maintaining quality and original flavor.
  • Rust and Corrosion Prevention: Forms a physical barrier, completely separating goods from the container's metal interior.
  • Enhanced Strength and Abrasion Resistance: The PET layer provides strong protection, allowing the liner to withstand friction and impacts from pallets and containers.
  • Cleanliness and Hygiene: The smooth, flat surface does not easily accumulate dust, making it easy to clean and disinfect.
  • Light Reflection and Heat Insulation: The glossy aluminum surface reflects some light and radiant heat, helping to maintain a relatively low temperature inside the container.
Technical Specifications
Test Basis Date Period
Q/320585-2019 2025-10-24
NO Test Items Factory Requirements Test Results Single Item Judgment Referenced Standards
1 Appearance The surface is smooth, free of bubbles, wrinkles, bulges, and other visual defects; the roll is tightly and evenly wound, and the end face deviation (inward or outward) must not exceed 10 mm. 0K Qualified /
2 Specification Size(mm) Width: 700 ±5mm
Thickness: 0.15 ±0.05mm		 Width: 701
Thickness: 0.147		 Qualified GB/T6673-2001
GB/T328.4-2007
3 Maximum Tensile force(N/50mm) TD: ≥150
MD: ≥150		 TD: 170
MD: 184		 Qualified GB/T35467-2017
4 Tensile Strength (MPa) TD: ≥20
MD: ≥20		 TD: 23
MD: 22		 Qualified GB/T35467-2017
5 Maximum Elongation (%) TD: ≥50
MD: ≥50		 TD: 70
MD: 66		 Qualified GB/T35467-2017
6 Tearing Force(N) TD: ≥15
MD: ≥15		 TD: 19
MD: 18		 Qualified GB/T35467-2017
Applications
Inside containers, this material typically appears in two forms:

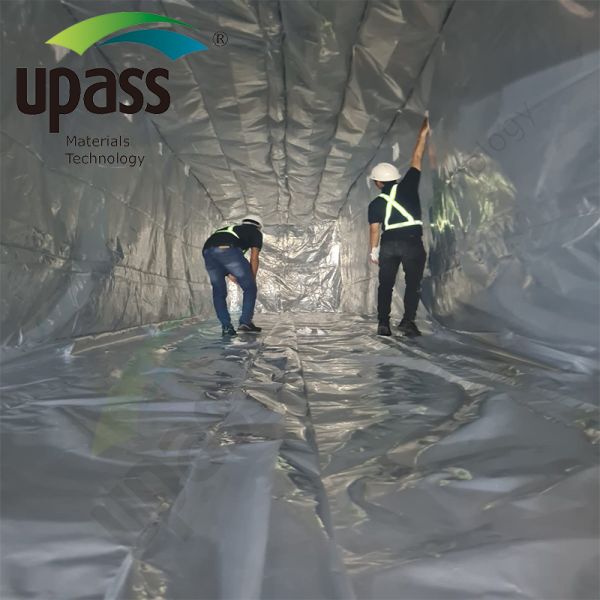

  • Container Lining: A PET aluminized composite PE film is pre-laminated onto honeycomb panels, corrugated sheets, or other lightweight, high-strength materials to create standard-sized "linings," which are then directly installed on the container's inner walls.
  • On-site Adhesive Film: A roll of PET aluminized composite PE film is directly adhered to the cleaned container's inner walls, offering greater flexibility.

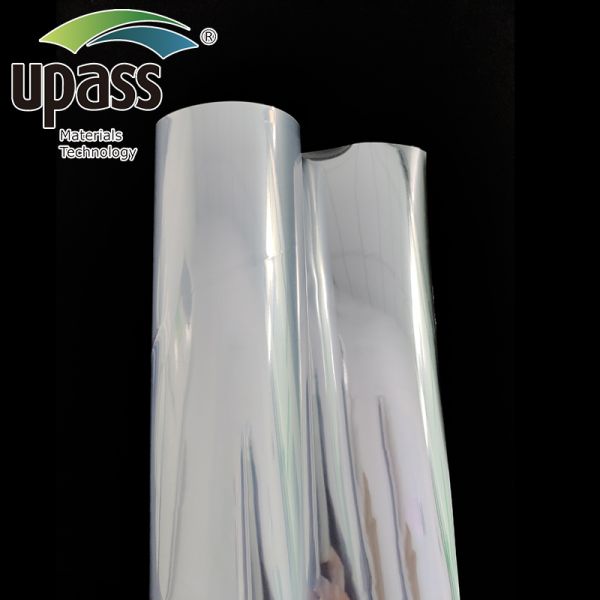

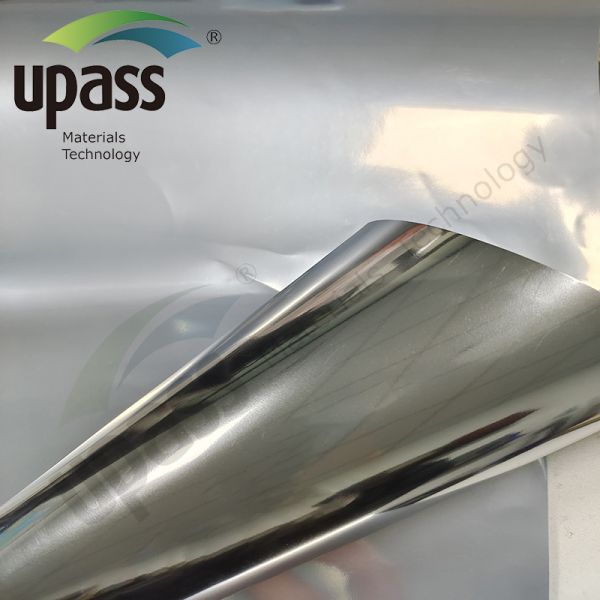

Product Images
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications 150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications 150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
Packing & Shipping
150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications 150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications 150 Micron Moisture Proof Heat Sealed VMPET Laminated Film for Industrial Barrier Applications
