Surface Material Waterproofing Application Anti Corrosion Film
Surface Material Waterproofing Application Anti Corrosion Film
Specifications
Brand Name :
Upass
Model Number :
Laminated Film
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
200,000㎡~300,000㎡
Delivery Time :
15days
Packaging Details :
Bubble Wrap & Wooden Pallet
Product Name :
Surface Material Waterproofing Application Anti Corrosion Film
Material :
Fluorine film+ cross laminated film
Production Process :
Film Blowing and Laminated
Performance :
weather resistance
Thickness :
0.09-0.15mm
Width :
100-1250mm
Color :
White, Green, Black, etc.
Application :
Tapes, Waterproofing membranes
Printing :
Can be customizable
Sample :
Available
Description

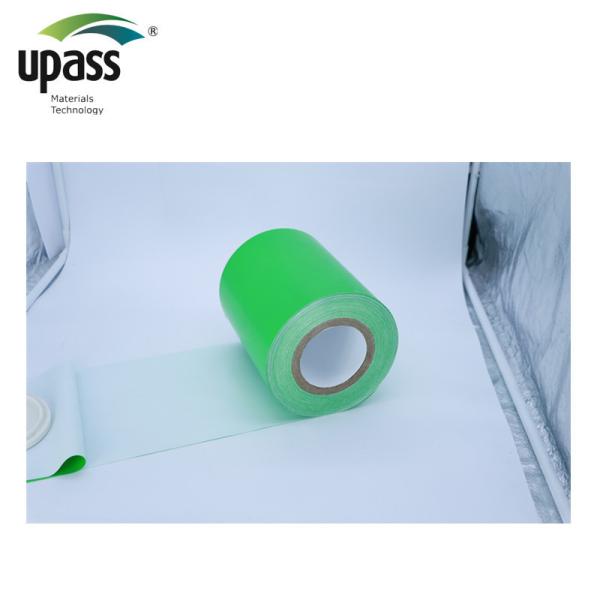

Surface Material Waterproofing Application Anti Corrosion Film

Description:

It is a laminated film, the surface is Fluorine Film, laminated with cross high strength film or PET film. The fluorine film is aging resistance film can up to 25 years. The cross film or PET film make it high strength and tear resistance.
It is specially designed for waterproofing and butyl tapes industries.

Advantages:

1. Excellent properties of weather resistance
2. UV resistance
3. Aging resistance, upto 25 years
4. Chemical corrosion resistance
5. Resistance to high temperature,heat,humidity and extreme cold
6. Reflectivity of over 85%

7. High strength, tear resistance

Parameter:

Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509 MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
UV300KWh IEC61215 The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
DH2000h IEC61215 Temperature 85 ℃, humidity 85% R.H., 2000h
TC400 IEC61215 Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle

Application:

1. Weather Resistance Tape Application:

Surface Material Waterproofing Application Anti Corrosion Film

2. Aging Resistance Waterproof Membrane Application:

Surface Material Waterproofing Application Anti Corrosion Film

About Upass:

Surface Material Waterproofing Application Anti Corrosion Film

Surface Material Waterproofing Application Anti Corrosion Film

Upass, founded in 2008, is headquartered in New Materials Industrial Park, Qingpu District, Shanghai, and has two production bases in Taicang, Jiangsu and Chenzhou, Hunan. Now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.
UPASS will spare no effort in strengthening and improving the production, sales networks, service system to return the trust and support of customers, and look forward to working with you in a win-win future.
