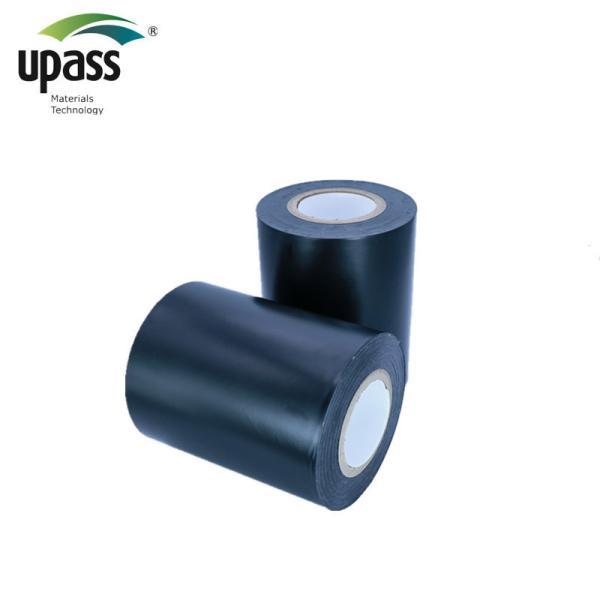

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film
HDPE 90 Micron Thermal 0.09mm Cross Laminated Film
Specifications
Brand Name :
Upass
Model Number :
Cross Laminated Film
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
200,000㎡~300,000㎡
Delivery Time :
15days
Packaging Details :
Bubble Wrap & Wooden Pallet
Product Name :
90 Micron Thermal Dimensional Stability Cross Laminated Film
Material :
HDPE
Production Process :
Cross Laminated
Performance :
Thermal Dimensional Stability
Thickness :
0.09-0.26
Width :
100-1250mm
Color :
Black, Grey, Blue, Green, etc.
Application :
Underlayment, Waterproofing membrane
Printing :
Can be customizable
Sample :
Available
Description

90 Micron Thermal Dimensional Stability Cross Laminated Film

Description:

It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
Our proprietary manufacturing process is composed of 3 steps: HDPE Film Extrusion, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.



Advantages:

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

Structure of bitumen membranes:

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

Parameter:

NO. Item Performance
SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
MaxF/(N/50mm) ≥ 200 300
Elongation as MaxF/% ≥ 200
Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 80
Elongation at MaxF/% ≥ 200
Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
Subsequent MaxF/% ≥ 70
Elongation at MaxF/% ≥ 180
Elongation at break/% ≥ 180


About Upass:

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

Upass, founded in 2008, is headquartered in New Materials Industrial Park, Qingpu District, Shanghai, and has two production bases in Taicang, Jiangsu and Chenzhou, Hunan. Now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.
UPASS will spare no effort in strengthening and improving the production, sales networks, service system to return the trust and support of customers, and look forward to working with you in a win-win future.

Company History:

HDPE 90 Micron Thermal 0.09mm Cross Laminated Film

Main Fields:

As a new material field, functional films are also one of the top ten key fields of Made in China 2025, and the awareness in the market is increasing. Nowadays, functional films are not only used in the construction field, special packaging, tape, label, automobile, electronics and other industries, but also in the fields of film filtration, air permeable film, graphene heating film, insulation film, Anti-UV film, biodegradable materials etc..

UPASS, as a leading domestic deep cultivator of polymer functional films, has also entered a stage of rapid development. We believe that UPASS will enter more application fields of polymer films innear future.
