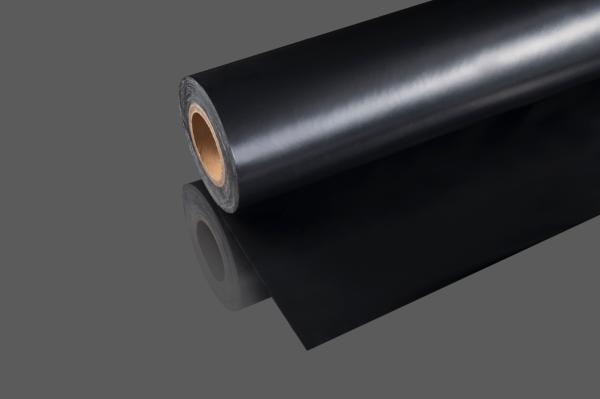

90 Micron Black Stability 0.09mm HDPE Film Roll
90 Micron Black Stability 0.09mm HDPE Film Roll
Specifications
Brand Name :
Upass
Model Number :
Cross Laminated Film
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
200,000㎡~300,000㎡
Delivery Time :
15days
Packaging Details :
Bubble Wrap & Wooden Pallet
Product Name :
90 Micron Thermal Dimensional Stability Cross Laminated Film
Material :
HDPE
Production Process :
Cross Laminated
Performance :
Thermal Dimensional Stability
Thickness :
0.09-0.26
Width :
100-1250mm
Color :
Black, Grey, Blue, Green, etc.
Application :
Underlayment, Waterproofing membrane
Printing :
Can be customizable
Sample :
Available
Description

90 Micron Thermal Dimensional Stability Cross Laminated Film

Description:

It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
Our proprietary manufacturing process is composed of 3 steps: HDPE Film Extrusion, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.



Parameter:

NO.ItemPerformance
SDM-30SDM-60
1Tensile PropertyTensile Strength/Mpa ≥3050
MaxF/(N/50mm) ≥200300
Elongation as MaxF/% ≥200
Elongation at break/% ≥250
2Sample number of no broken tested by free-falling dart method ≥8
3Tear Strength(Nail Shank)/N ≥60
4Angle Tear Strength/N ≥25
5Thermal Stability120 ℃,10min, No bulb, No deformation
6Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7Thermal AgeingAppearanceNo bulb, No deformation
Subsequent MaxF/% ≥80
Elongation at MaxF/% ≥200
Elongation at break/% ≥200
8Artificial WeatheringAppearanceNo bulb, No deformation
Subsequent MaxF/% ≥70
Elongation at MaxF/% ≥180
Elongation at break/% ≥180



Advantages:

90 Micron Black Stability 0.09mm HDPE Film Roll

Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination

90 Micron Black Stability 0.09mm HDPE Film Roll

Structure of bitumen membranes:

90 Micron Black Stability 0.09mm HDPE Film Roll
