Specifications
Place of Origin :
Guangdong, China
Brand Name :
KEJIAN
MOQ :
1
Price :
CN¥58,419.65
Voltage :
220V
Power rate :
1050W
Dimension :
1200*620*550mm
Weight :
120kg
Max coating width :
280mm
Coating length :
unlimited
Max capacity :
150g
Min coating thickness :
0.05mm
Max temperature :
250℃
Coating speed :
4.5m/min
Coating gap resolution :
0.005mm
Power source :
1 phase, AC 220V
Driven type :
Electric
Automatic grade :
Semi-Automatic
Core components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Description
Adhesive Paper Hot Melt Coating Machine - Small Tape Coater for Lab
This precision laboratory benchtop Hot Melt Coater is designed for producing coated samples or small production runs of hot melt adhesives, with subsequent lamination to various foils, films, and papers. The machine enables easy setup and study of lab-scale simulations of production processes, significantly reducing R&D sample preparation costs.
Key Applications
Ideal for research and development applications, this coater facilitates lab-scale simulations of production processes for hot melt adhesives, allowing for efficient sample preparation and process optimization.
Machine Features
  • Self-contained brake unwinds for adhesive carrier and facestock
  • Requires 110V/20A circuit and compressed air source
  • Pivot control on adhesive carrier and facestock for web alignment
  • Controllable laminating speed and pressure
  • Maximum operating temperature: 482°F (250°C)
  • Easy cleanup through quick, uncomplicated disassembly
  • Generates sample laminates of unlimited length
  • Precision ground coating bars
  • Independent heating for coating bars and back reservoir
  • Coating width controlled by Teflon insert side dams
  • Durable aluminum and steel construction for long machine life
  • Adjustable variable speed controller
  • Non-rotating bars separated from reservoir with PT-100 high-precision PID temperature control
  • Large diameter high-precision micrometer for coating gap adjustment (0.005mm resolution)
  • Maximum coating width: 280mm
  • Reversible speed controller with optimal coating speed: 4.5m/min
  • Adjustable coated liner bar for roll tension control
  • Quick disassembly of heating bar, rubber roller, and reservoir for cleaning
Technical Specifications
Maximum Coating Width 250mm
Coating Length Unlimited
Coating Speed Adjustable (optimal: 4.5m/min)
Dimensions (L×W×H) 1200×620×550mm
Weight Approximately 120kg
Power Source 1 phase, AC 220V
Power Rating 1050W

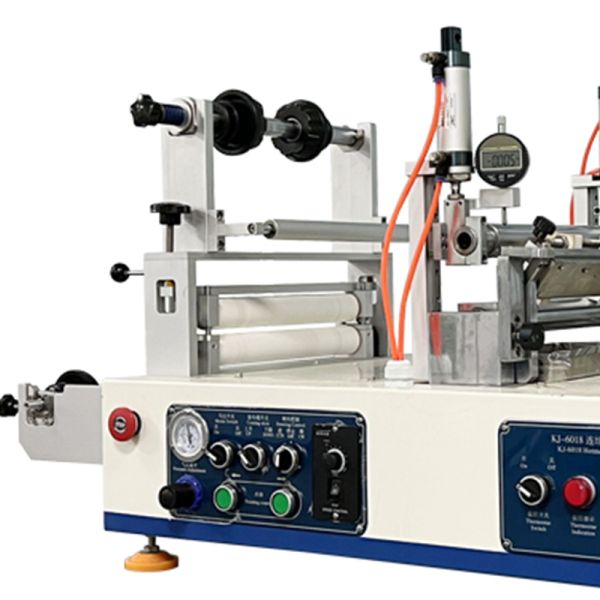

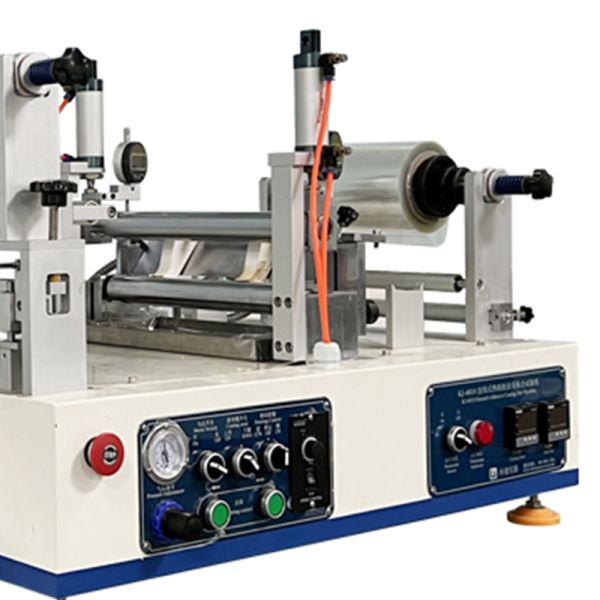

Product Images
Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab
Company Information
Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab
Packing & Delivery
Adhesive Paper Hot Melt Coating Machine Small Tape Coater for Lab
Why Choose Our Products
1-Year Warranty:
All machines include one year free warranty with spare components provided (excludes improper operation or intentional damage).
Training Services:
Our engineers provide comprehensive training during installation and commissioning, ensuring your staff can operate the machine properly.
Certification Services:
We provide related certificates to clients upon request at no additional cost.
Maintenance Support:
We respond to all inquiries and technical issues within 48 hours.
