MachineU > China Products > Packaging & Printing
ASTM D6195 Loop Tack Tester Tape Label Ring Initial Viscosity Tester
ASTM D6195 Loop Tack Tester Tape Label Ring Initial Viscosity Tester
Specifications
Brand Name :
KeJian
Model Number :
KJ-6031
Certification :
ISO,CE and etc
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
In stock,3-7 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Professional Export Strong wooden case
Certificate :
CE, SGS, ISO
Power AC :
220V/110V 50Hz/60Hz
Test method :
FINAT Test Method No.9
Test Material :
Tape
Standards :
ASTM D6195-03,PSTC 16
Application :
Loop tack resistance
Use :
FINAT Loop tack tester
Weight :
23Kg
Description


Microcomputer Control Liquid Screen Operating Tape Peel Adhesion Test Equipment For Loop Tack Resistance with 18Kg

Uses:

Loop Tack Tester features compact and exquisite structure, equipped with imported high-precision sensor and motor. It is mainly used to test the initial tack strength of various adhesive tapes, adhesives and related products.
This instrument fully complies with international test standards including FINAT Test Method No.9 Loop Tack Measurement, PSTC-16 Loop Tack and ASTM D6195-03 Standard Test Methods for Loop Tack. It is widely suitable for research institutions, adhesive import and export enterprises, inspection and quarantine organizations and other professional laboratories.

Work Theory:

The loop-shaped sample is brought into full contact with the standard float glass test plate at a constant speed of 300 mm/min. Then the instrument automatically separates the loop sample from the test plate in reverse direction at the same constant speed of 300 mm/min. The maximum force generated during this process is defined as the loop tack strength of the tested sample.


Character:

Technical Parameters

  1. Measuring Range: 10kg
  2. Measurement Accuracy: Measuring error less than ±0.5%
  3. Test Result: Record the maximum tensile force required for the loop sample to separate from the stainless steel test plate, as well as the failure mode of the sample.
  4. Test Speed: 300mm/min
  5. Speed Accuracy: Error less than ±0.5%
  6. Sample Size: 125.0mm×24.0mm
  7. Test Plate Size: 100.0mm×25.0mm×2.0mm
  8. Machine Dimension: Height 55cm × Width 30cm × Depth 35cm
  9. Machine Weight: 23Kg
  10. Power Supply: 220V, 50Hz

Specification:

Measure range 100N (can choose one)
Measure accuracy 0.5%
Test speed 300mm/min
Specimen size L(125.0mm)×W(24.0mm)
Test plate size L(100.0mm)×W(25.0mm)×T(2.0mm)
Machine size H:55cm；W:30cm；D:35cm
Weight 23Kg
Power 220V/110V,50HZ/60HZ



RFQ:


Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent after sale service:

1 YEAR warranty. If you have any problems during testing process, we promise we will give you a reply with 24 hours and solution provide within 3 working days. What you need to do is to send us the controller.

3. Good Packaging:

Covered with air bubble film before put the machine into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Pictures:

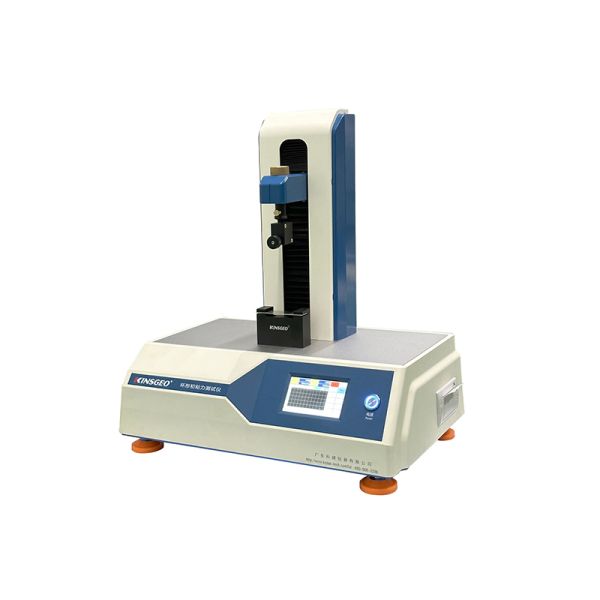

ASTM D6195 Loop Tack Tester Tape Label Ring Initial Viscosity Tester
