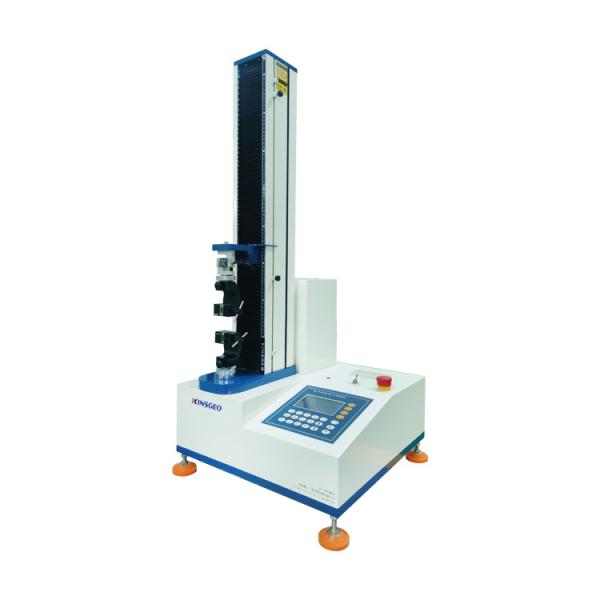

Electronic High-precision Tape Peeling Testing Machine with 0.001-500 mm/min Crosshead Speed and ASTM E8/A370/ISO 75001 Standard
Electronic High-precision Tape Peeling Testing Machine with 0.001-500 mm/min Crosshead Speed and ASTM E8/A370/ISO 75001 Standard
Electronic High-precision Tape Peeling Testing Machine with 0.001-500 mm/min Crosshead Speed and ASTM E8/A370/ISO 75001 Standard
Electronic High-precision Tape Peeling Testing Machine with 0.001-500 mm/min Crosshead Speed and ASTM E8/A370/ISO 75001 Standard
Specifications
Bending Angle :
0 - 180 degree
Application :
universal tester
Warranty :
1 Year
Software Features :
The units select g, kg, N, KN, LB
Range Of Speed :
0.5-500mm/min
Power supply :
220V 50Hz
Usage :
Compression Strength Tester
Stroke :
650mm
Product name :
Computer control single column universal testing machine
Power :
Electronic
Loading Accurancy :
2.4KN/s +/- 200N/s
Machine Accuracy :
Over +/-0.5%
Test Speed :
0.1-500mm/min selectable
Round Angle :
R1-1.5mm
Crosshead Speed Range :
0.001-500 mm/min
Accuracy :
+/-0.5%
Interface :
USB Interface
Weight :
500 kg
Standard :
ASTM E8/A370/ISO 75001
Aplication :
rubber ,plastic ,nylon ,leather and etc
Brand Name :
KINSGEO
Model Number :
KJ-1065
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD/3800/SET
Payment Terms :
T/T
Supply Ability :
30Sets/month
Delivery Time :
15 work days
Operation :
Computer windows operation
Description
Electronic High-precision Tape Peeling Testing Machine
Product Description

This precision testing machine performs reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, tapes, composites, alloys, plastics, films, elastomers, textiles, paper, and finished products.

Key Features
  • Computer-controlled operation with specialized testing software for complete parameter control, data collection, analysis, and reporting
  • Stable performance with high accuracy (±0.5%) using USA-made high-precision load cells
  • Powerful yet user-friendly software interface
  • Versatile testing capabilities for multiple material types
Standard Accessories
  • Customizable grips for various sample types
  • Specialized peeling tools for tape and film industry applications
  • Complete software package for test control, data acquisition, and reporting
  • English operation tutorial video
  • Optional table and computer available
Software Features
  • Windows-based platform with intuitive dialog forms
  • Single-screen operation for efficient workflow
  • Multilingual support (Simplified Chinese, Traditional Chinese, English)
  • Customizable test sheet templates
  • Real-time data display and analysis
  • Multiple curve comparison capabilities
  • Unit conversion between metric and imperial systems
  • Automatic calibration and user-defined test methods
  • Advanced data analysis and automatic graph scaling
Technical Specifications
Design Standards ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632
Model KJ-1065C
Speed Range 50-500mm/min
Motor Type AC Motor
Capacity Options 1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Resolution 1/150,000
Effective Testing Space 120mm MAX
Accuracy ±0.5%
Operation System Windows operation
Standard Accessories Machine, peel tools, system operation manual
Weight 80KG
Dimensions (W×D×H) 58×58×125cm
Power Requirements 1PH, AC220V, 50/60Hz
Safety Features Upper/lower stroke protection, force protection system, emergency stop device
