High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests
Specifications
Brand Name :
KINSGEO
Model Number :
KJ-1065A-H
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD/2900/SET
Payment Terms :
T/T
Supply Ability :
30Sets/month
Delivery Time :
15 work days
Power :
Electronic,220V
Usage :
Tensile Testing Machine,Strength Testing Machine,Textile Testing Instrument,Universal Testing Machine
Product name :
Tape peeling tester/Adhesive peeling test equipment
Warranty :
1 Year
Application :
Adhesive Tape tester
Standard :
CNS.4158,IEC68,GB/T
Measuring range :
5kg,100N,10~1000KN
Load :
0~100kg
Weight :
About 145 kg
Capacity :
100
Power supply :
AC220V 10% 50HZ
Dimention :
650*330*1730mm
Function :
Adhesive Tape test machine
Accuracy :
±0.5%
Accuracy class :
0.5 class
Max load :
1000N
Speed of test :
0.01-500mm/min
Description

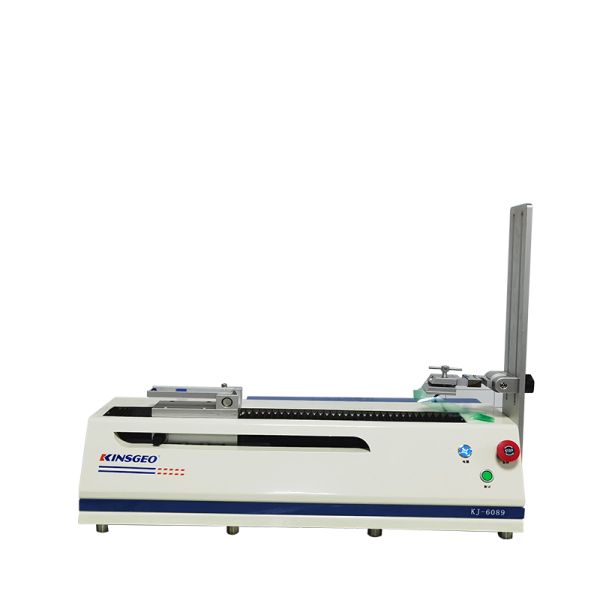

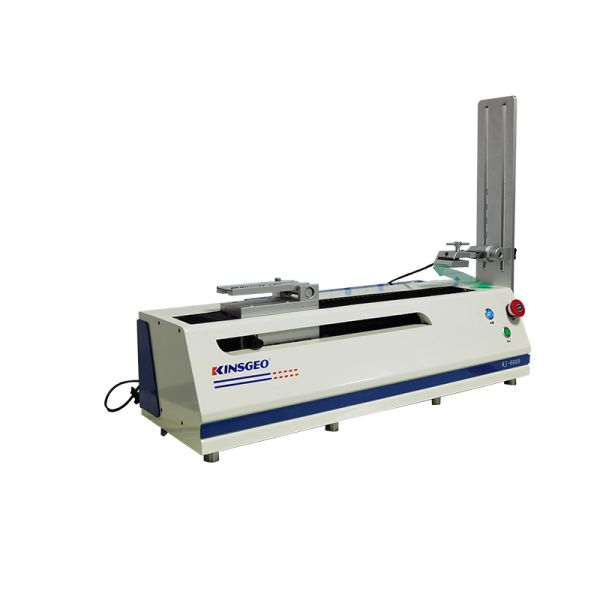

Horizontal High-speed Peel Force Testing Machine
This universal tensile testing machine complies with PSTC, ASTM, TLMI, FINAT and AFERA standards, supporting both 90° and 180° applications. Designed as an enhanced solution for peel force and tape removal force testing, it was developed to meet global demands for precise adhesion measurement.
Key Features
  • Compatible with data collection systems and KINSGEO operation software for comprehensive data management
  • Adjustable stretching speed (100mm/min - 30000mm/min)
  • Configurable testing angles (90° to 180°)
  • Multiple load cell options available for different testing requirements
Technical Specifications
Parameter Value
Voltage AC 220V / 50Hz
Dimensions (H×W×D) 850mm × 1200mm × 350mm
Effective Travel 700mm
Weight 65KG
Load Cell Options 2KG, 5KG, 10KG, 20KG
Recommended Load Cells
  • Adhesion force testing: 10KG or 5KG
  • Peel force testing: 2KG or 5KG
Compliance Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests

High-speed Peel Strength Testing Machine with Adjustable Angles and Multi-Standard Compliance for Tape Peeling Tests

Manufacturer: Guangdong KeJian Testing Instrument Co., LTD.
Founded in 2003, we are a professional manufacturer specializing in precision testing instruments and comprehensive test solutions. With our professional R&D team and excellent production management, we continuously provide customers with high-quality products and services, establishing ourselves as a leading instrumentation supplier in the industry.
