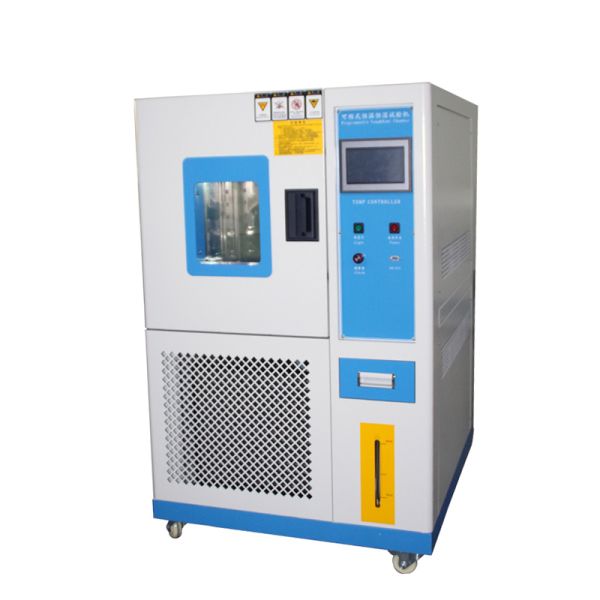

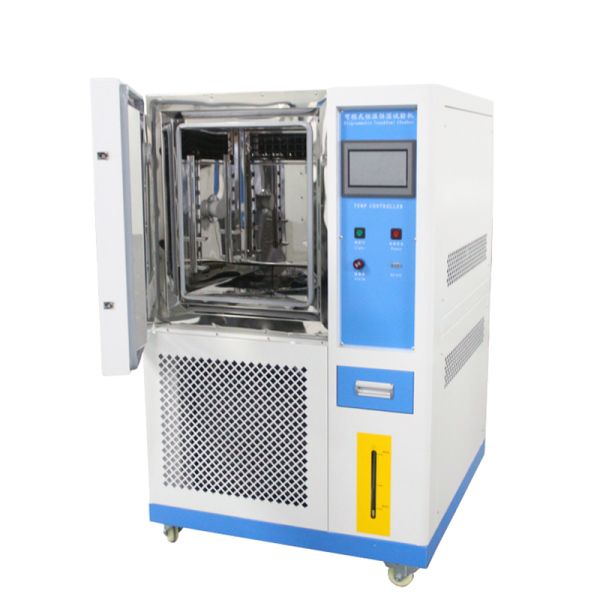

High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range
High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range
High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range
High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range
Specifications
Brand Name :
KINSGEO
Model Number :
KJ-2091
Certification :
ISO, CE and etc.
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10 sets per month
Delivery Time :
10 days after order
Packaging Details :
Plywood box
Product name :
Programmable Temperature & Humidity Test Chamber
Control range of temperature :
-70℃～150℃ （Customizable）
Control range of humidity :
RH20%～98%
Controller :
Programmable LCD touch screen
Temperature fluctuation :
±0.5℃
Inside material :
Stainless steel SUS 304 #
Size :
Customized
Warranty :
12 Months
Description
100L 85°C 85% Humidity Material Aging Simulation Test Chamber
Stainless Steel Temperature & Humidity Test Chamber
High-precision constant temperature and humidity test chamber for material performance testing under various environmental conditions.
Key Features
  • High precision microcomputer touch temperature and humidity controller with platinum resistance for stable temperature control
  • Precisely controlled and evenly distributed temperature & humidity environment
  • Independent systems for high temperature, low temperature, and constant temperature & humidity testing
Product Description
This chamber simulates different environmental conditions to test material performance including heat resistance, dry resistance, humidity resistance, and cold resistance, helping to define material characteristics.
High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range High Precision 100L Temperature Humidity Test Chamber with Wide Temperature Range and High Humidity Range
Technical Specifications
Model A B C D E F
Inner Box Dimensions (W×H×D) 40×50×40 cm 50×60×50 cm 40×75×60 cm 60×85×80 cm 100×100×80 cm 100×100×100 cm
Outer Box Dimensions (W×H×D) 92×138×108 cm 102×146×116 cm 102×162×126 cm 113×172×148 cm 150×186×139 cm 158×188×168 cm
Inner Box Volume 80L 150L 225L 408L 800L 1,000L
Temperature & Humidity Range A:-20℃～150℃ B:-40℃～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98%
Performance Temperature fluctuation: ±0.5℃; Humidity fluctuation: ±2.5%RH
Temperature & Humidity Deviation ±0.5℃～±2℃; ±3%RH(＜75%RH); ±5%RH(≥75%RH)
Control Accuracy ±0.3℃; ±2.5%RH
Controller Customized
Material Interior: #SUS 304 Steel plate; Exterior: White & Blue
Thermal Insulation High temperature and high density vinyl chloride foam insulation material
Air Circulation Centrifugal fan - wide band forced air circulation (upper in, lower out)
Refrigeration Single stage mechanical compression refrigeration
Compressor Fully enclosed piston type compressor (TAIKANG French)
Refrigerant R4O4A/Dupont environmental refrigerant(R23+R4O4)
Condensation Air or water cooled
Heater Nickel-chromium electric heating wire heater
Humidifier Semi-enclosed steam humidification
Water Supply Fully automatic circulating water supply (manual watering)
Standard Equipment View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1
Safety Features No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system
Power 1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz
Customer Support Services
  • 48-hour response time for technical issues
  • Solution provided within 3 working days
  • Operation videos and English manuals available
  • Video conference support
  • Onsite services including installation, operation training, calibration, and maintenance
  • Free technical training for visiting factories
  • 24-hour online contact
  • Free software upgrades
  • Comprehensive documentation including product instructions, operation guides, and test reports
  • Multiple support channels: social media, email, video conferencing, and on-site service
Frequently Asked Questions
Why Choose Us?
  • 15+ years of specialization in testing equipment
  • Located in Dongguan - a world-class manufacturing hub
  • 12-month after-sales service with prompt problem resolution
Are you a factory?
Yes, we are the manufacturer.
What's the delivery time?
Within 10 working days after deposit received. Stock availability may shorten delivery time.
What are your trade terms?
We accept EXW, FOB, CIF, CNF and other standard trade terms.
