50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
Specifications
Brand Name :
KeJian
Model Number :
KJ-1075
Certification :
ISO,CE and etc.
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
200 sets per month
Delivery Time :
In stock,3-7 working days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into professional export Strong plywood case
Motor :
ACMotor+Transducer
Control :
PC
Test Speed :
50~500 mm/min（100，200，300，400，500）Stepless speed and adjustable
Accuracy :
±1% or better
Capacity :
500 （10，20，50，100，200，500）KG Optional
pplication :
rubber ,plastic ,nylon ,leather and etc
Design criteria :
ASTM D903,GB/T16491 and etc
Maximum trip :
1000mm
Driving method :
High precise ball screw

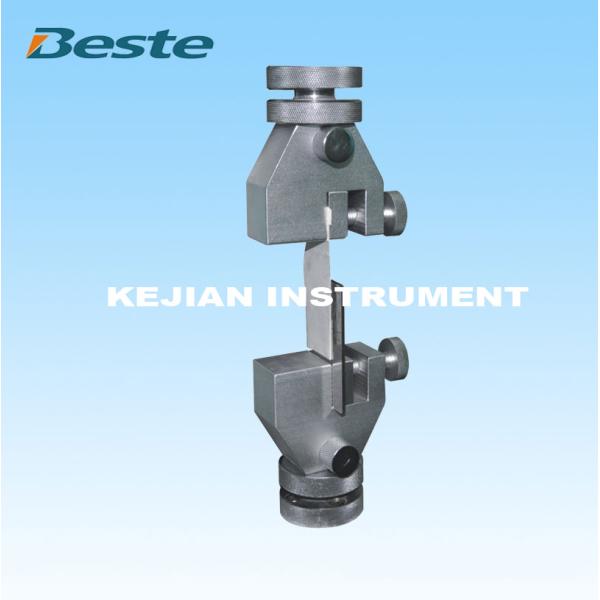

Grips :
Different material and test method with different grips
Description

50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon

Standard:

ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7

Uses:

This machine is used to test tensile, peeling, shearing for textile, rubber, plastic, synthetic leather, tape, electron and metal,etc, to determine the product or semi-product quality.

Character:

1. The appearance uses cold drawing static spraying maps,Concise and easy,multifunction.
2. Figure liquid display,can distinguish the tension or pression,easy to read.Three kind unit:N-Kgf-Lbf,can interchange ；
3. You can read the peak value from the tension and pression direction,and zero clearing aumotically and handle.
4. Halt overload funtion.
5. Floor type with beautiful structure.



Specifications:

Capacity choice

500 (10,20,50,100,200,500)KG Optional

Unit

Kg,lb,N

Accuracy

±1% or better

Motor

ACMotor+Transducer

Resolution

1/50,000

Test speed

50~500 mm/min(100,200,300,400,500)Stepless speed and adjustable

Power

AC 220V,Single phase

Test Stroke

1200mm

Dimension

600x450x1800mm(length*width*height)

Display Panal

load cell+KJ-2006displayer

Protection

Leakage protection,Over-load protection,Emergency stop,Upper and lower limit device.


Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.


Pictures:

50~500 mm/min Speed Digital Compressive Strength Testing Machine For Rubber / Plastic / Nylon
