Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Salt Spray Corrosion Test Chamber
Specifications
Brand Name :
Dongjun
Model Number :
DJ-26-48
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Test room size :
60x45x40cm, 90x60x50cm, 120x100x50cm, 160x100x50cm
Testing room temperature :
Salt Test (NESS ACSS) 35°C±1°C / Corrosion Test (CASS) 50°C±1°C
Saturated air temperature :
Salt Test (NESS ACSS) 47°C±1°C / Corrosion Test (CASS) 63°C±1°C
Salt concentration :
5% sodium chloride
Spray volume :
1.0~2.0ml/h
Power supply :
220V,10A / 220V,15A / 220V,20A
Description

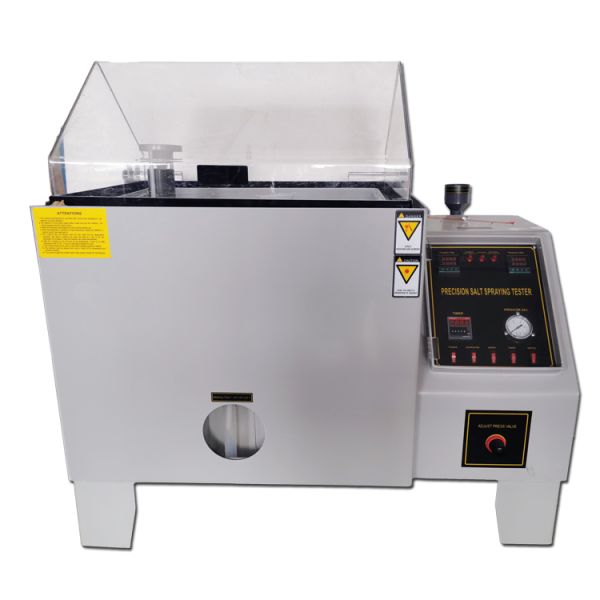

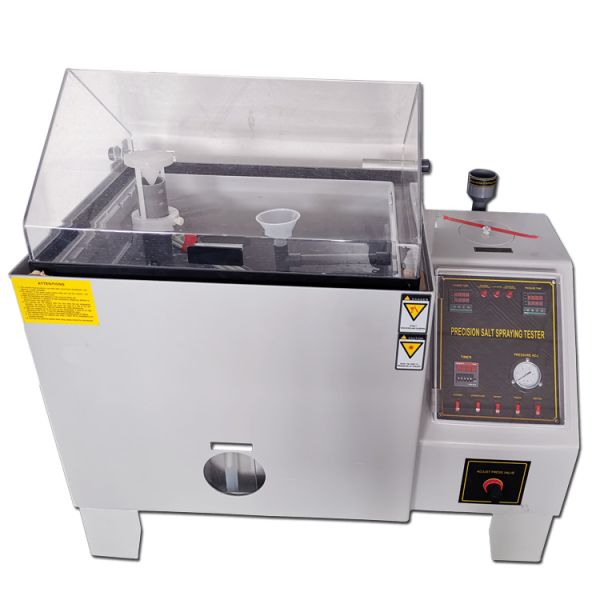

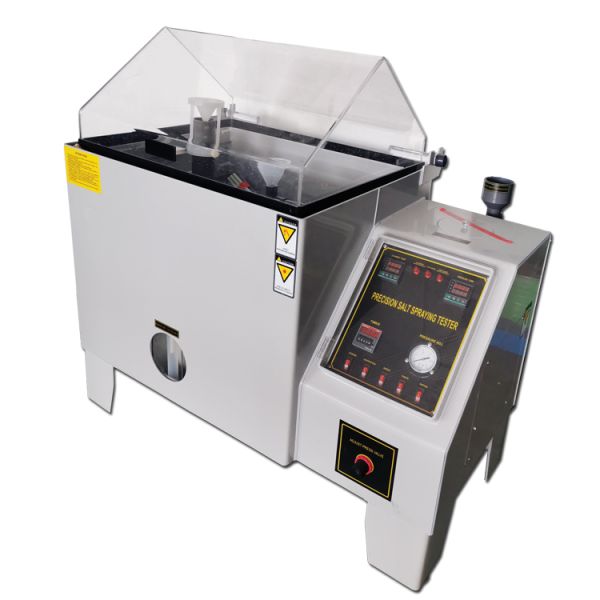

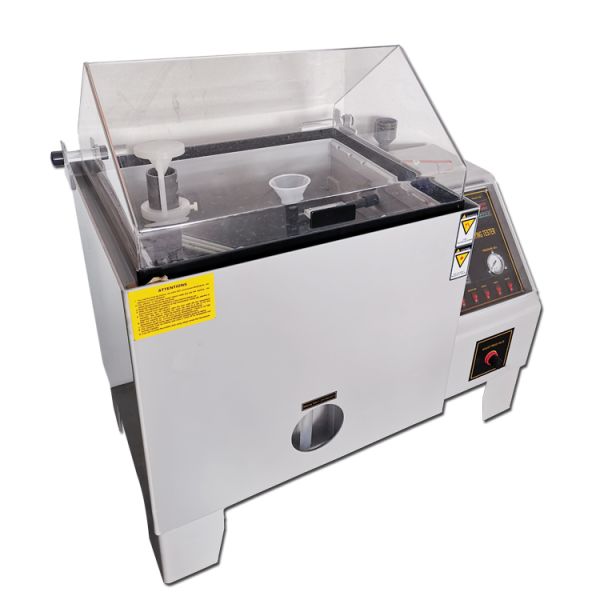

Salt Spray Corrosion Test Chamber

Application Scope
This product is applicable to industries including hardware electroplating, parts processing and manufacturing, electronic component manufacturing, electrical engineering, electronic products, computer and communication, machinery manufacturing, etc., for conducting accelerated salt spray corrosion tests on metal materials, protective parts, electronic devices and industrial products.

Technical parameters

Model DZYW-60 DZYW-90 DZYW-120 DZYW-160
Test room size(cm) 60x45x40 90x60x50 120x100x50 160x100x50
Outside box size(cm) 107x63x118 141x88x128 190x120x140 230x130x140
Testing room temperature Salt Test (NESS ACSS) 35°C±1°C / Corrosion Test (CASS) 50°C±1°C
Saturated air barrel Temperature Salt Test (NESS ACSS) 47°C±1°C / Corrosion Test (CASS) 63°C±1°C
PH Salt Spray Test (NESS ACSS) 6.5~7.2
Corrosion-resistant Test(CASS) 3.0~3.2
Spray volume 1.0~2.0ml/h
Testing room relative humidity > 85%
Salt concentration The concentration of sodium chloride 5%
Testing room Capacity 108L 270L 480L 800L
Brine tank capacity 15L 25L 40L 40L
Air pressure 1.00±0.01kgf/cm2
Spray form Programmable spray (Including continuous and intermittent spray)
Multiple safety protection devices Current discharge protection, over pressure protection,over temperature protection, over load fuse protection
Power 220V,10A 220V,15A 220V,20A



Salt Spray Corrosion Test Chamber

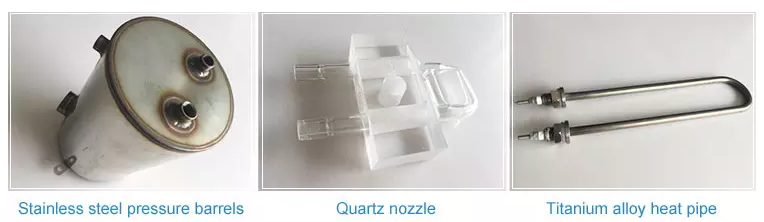

Heating system

  • Adopt u-shaped titanium alloy high-speed heating electric heat pipe.(Strong in corrosion resistance)
  • Water and electricity fully independent system, does not affect the salt fog test and control circuit
  • Temperature control output power are calculus by the microcomputer (High precision, high efficiency and power saving is about 30%)
  • Low water level protection system.

Spray system

  1. Spray device: spray tower using a nebulizer (spire height adjustable), guiding salt spray, fog particles small, natural subsidence; without nozzle salt crystals, tunable settlement.
  2. Spray gas treatment: two spray gas regulator regulator, the same period the oil to be filtered, humidified gas preheating
  3. fogging treatment: spray brine stored as hidden and built a large storage capacity, brine with preheating Function. Saline spray before brine with quartz filter element, to avoid blocking the nozzle of impurities Sergio terminal test.

Test standards

  • CNS: 3627, 3385, 4159, 7669, 8886.
  • JIS: D0201, H8502, H8610, K5400, Z2371.
  • ISO: 3768, 3769, 3770.
  • ASTM: B 117, 8117, B268.

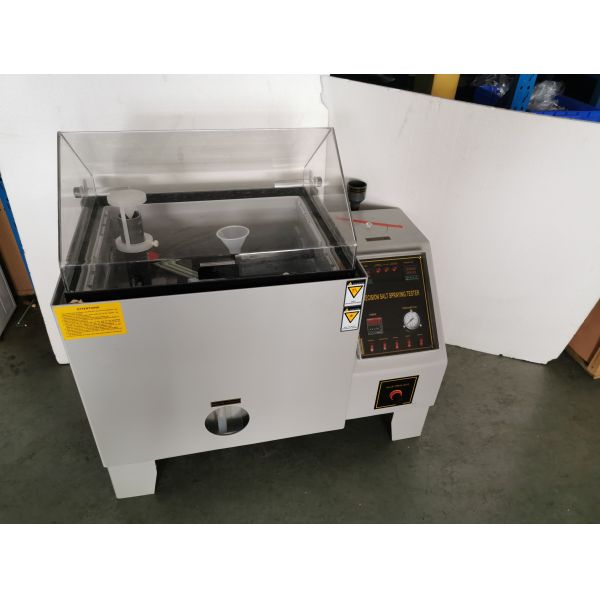

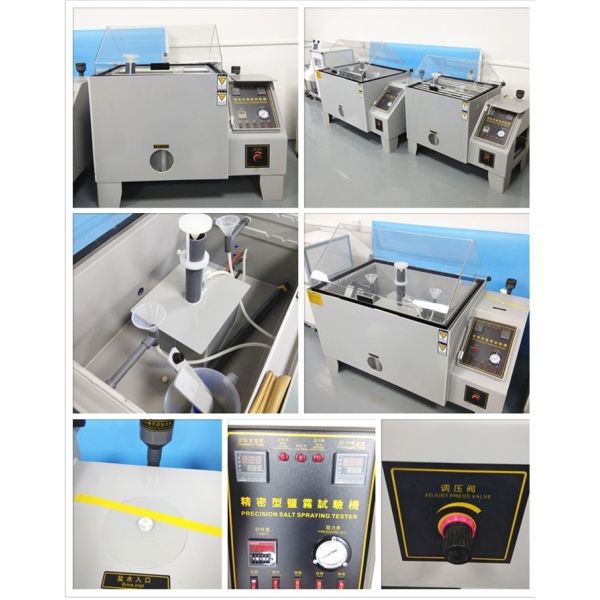

Real imagines

Salt Spray Corrosion Test Chamber Salt Spray Corrosion Test Chamber

Company Profile

Salt Spray Corrosion Test Chamber

PACKING AND TRANSPORTATION
Salt Spray Corrosion Test ChamberSalt Spray Corrosion Test Chamber

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
