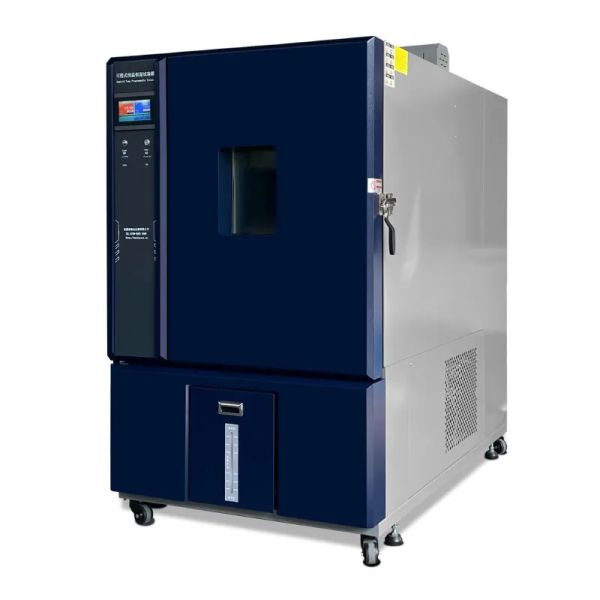

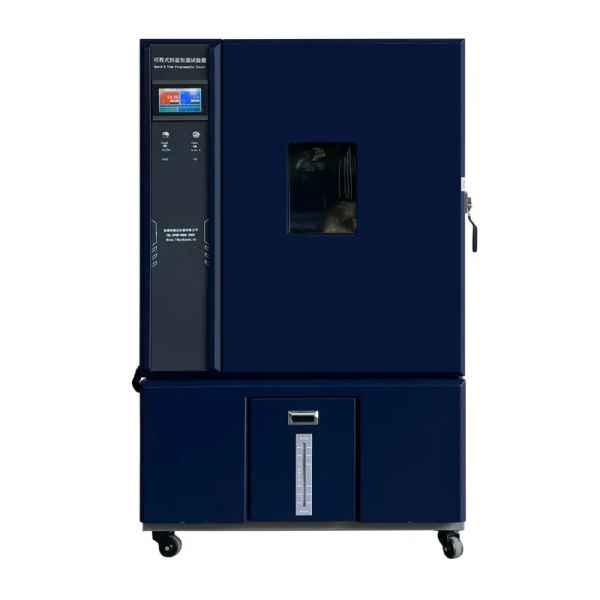

800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
Specifications
Brand Name :
Dongjun
Model Number :
DJ-E702-800
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Internal dimensions :
1000×800×1000mm
External dimensions :
1500×1180×1900mm
Temperature range :
-70℃ ~ +150℃
Humidity range :
20% ~ 98% RH
Cooling rate :
1℃/min
Heating rate :
3℃ per minute
Description
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
Application Scope
  1. Simulate test environments under different temperature and humidity conditions.
  2. Cyclic tests cover various climatic working conditions, including heat preservation test, cooling test, heating test, humidification test and drying test.
  3. Flexible silicone sealing plugs are configured at cable interfaces for wiring layout, providing adaptive conditions for the operation of test equipment.
  4. Conduct short-term tests through the time acceleration effect to identify performance weak points of test equipment.
Parameters
Internal dimension(W*D*H)1000×800×1000mm
External dimension(W*D*H)

1500×1180×1900mm

Temperature Range-70℃ ~ +150℃
Temperature fluctuation:±0.5℃
Temperature Uniformity2℃

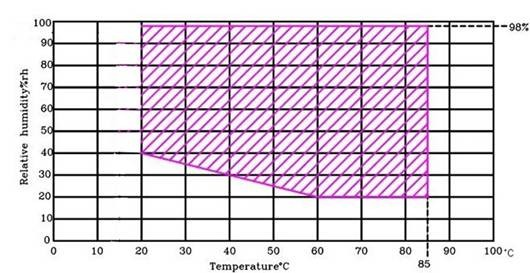

Humidity Range20% ~ 98% RH (See reference diagram for details)
Humidity Fluctuation±2.5%RH
Humidity Uniformity3%RH
Cooling rateAverage 1℃/min (no load)
Heating rateAverage 3℃ per minute (no load)

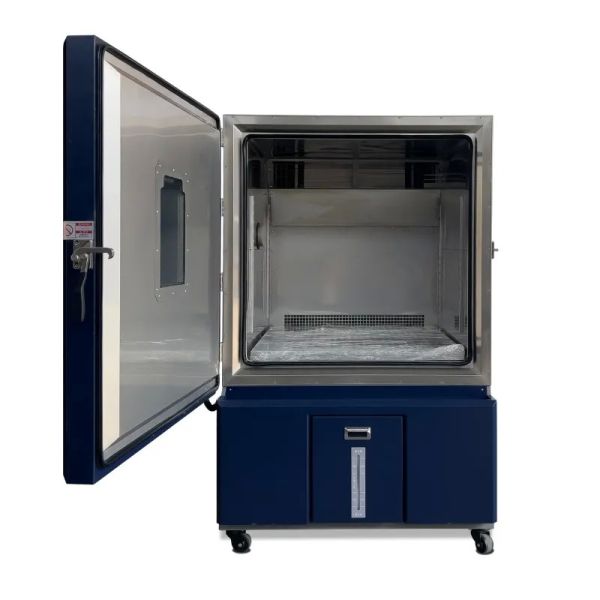

Inner cavity materialMirror-finished stainless steel
External Cavity MaterialStainless Steel
Cooling MethodAir Cooling
Controllerliquid crystal touch screen, programmable temperature and humidity control, supports cyclic test parameter setting

Thermal Insulation Material

50mm High-density Rigid Polyurethane Foam

Heater Explosion-proof

SUS#304 Stainless Steel Finned Heating Tube

Lighting

Heat-resistant Lighting

Temperature Sensor

PT-100 Wet and Dry Bulb Sensor

Observation Window

Tempered Glass

Test hole

Test hole with a diameter of 50mm, used for cable routing

Safety protection device

Leakage protection, over-temperature protection, compressor overpressure/overload protection, heater short-circuit protection, water shortage protection

Products Advantages

Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
Temperature and Humidity Test Chamber
Equipped with high-precision sensors and an advanced PID control system, our chamber ensures exact temperature and humidity regulation, creating a stable testing environment.

800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber

Humidity Range


800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber

WHY CHOOSE US?

Cabinet Design Features
  1. High performance with quiet operation (68 decibels)
  2. Space-saving design allowing flush mounting against the wall
  3. Fully enclosed thermal insulation treatment around the door frame
  4. A 50-millimeter diameter cable port on the left side, equipped with a flexible silicone plug
  5. Precise wet-dry bulb humidity measurement system for easy maintenance
Product Application

Ideal for simulating extreme climates, our temperature and humidity test chamber ensures product resilience in diverse environments, from scorching deserts to freezing tundras, guaranteeing optimal performance under any conditions.

800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
Company Profile
800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber
PACKING AND TRANSPORTATION

800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber800L Laboratory Environmental Climate Tester, Temperature and Humidity Test Chamber

FAQ

How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
