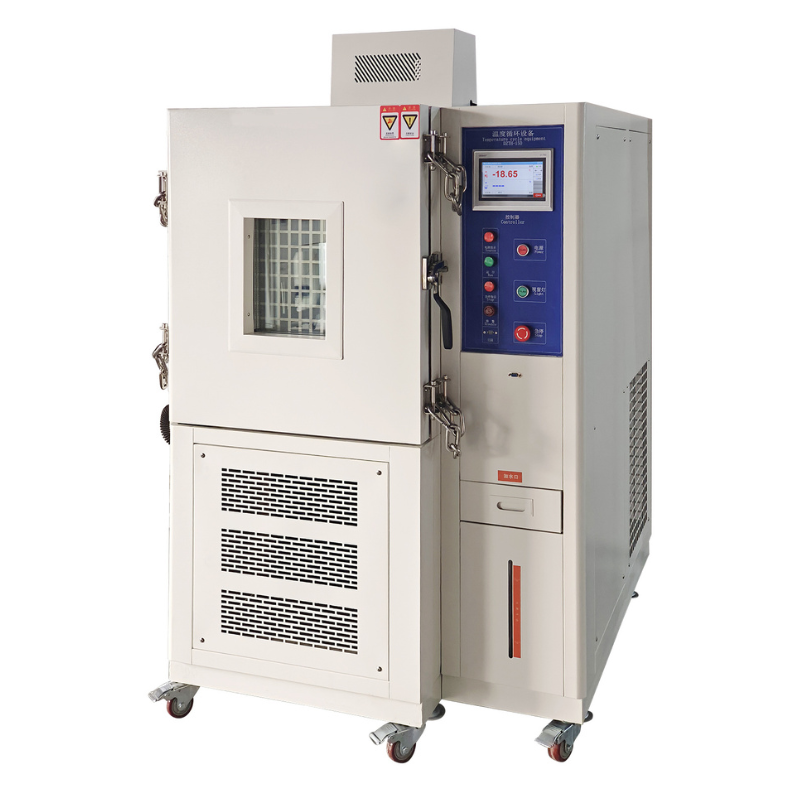

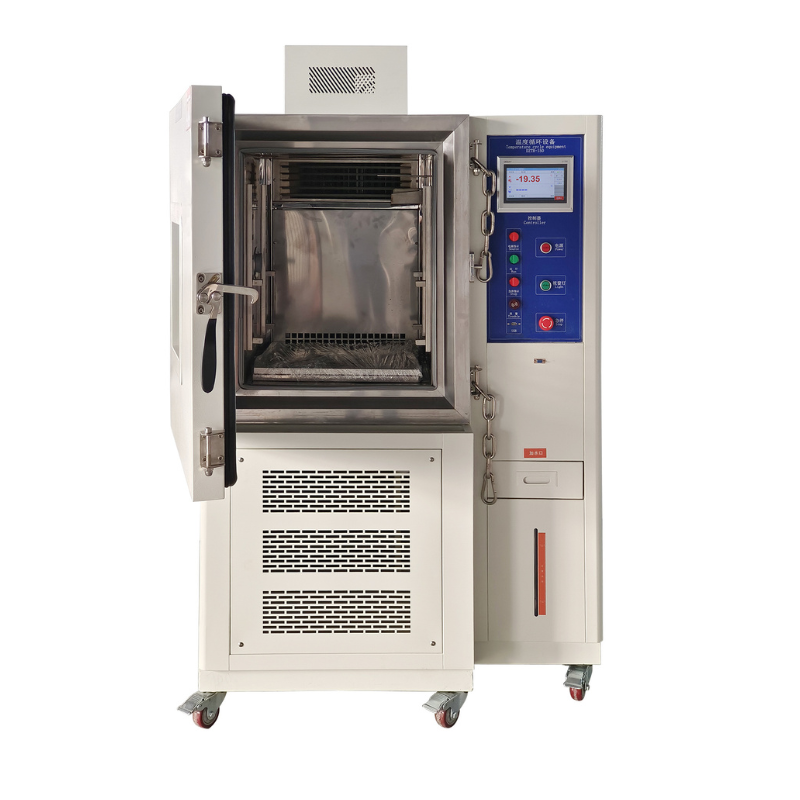

Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Specifications
Brand Name :
Dongjun
Model Number :
DJ-26-57
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Inner Chamber Dimensions :
W500 × D500 × H600 mm
Temperature Range :
-50℃ ~ +150℃
Temperature Fluctuation :
≤ ±0.5℃
Temperature Precision :
±0.1℃
Humidity Range :
20% ~ 98% RH
Power Supply :
AC 380V
Description
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Product Overview:

This Temperature Cycling Test Chamber is specifically designed for temperature cycling and high-low temperature cycling tests of consumer lithium-ion cells, complying with standards such as GB 31241, GB/T 2423.1, and relevant IEC requirements. It simulates extreme temperature changes to evaluate the performance, stability, and safety of lithium-ion cells under variable environmental conditions, helping customers verify cell reliability and meet regulatory certification needs.

Parameters
Parameter Specification
Chamber Structure Inner chamber: SUS304 stainless steel; Outer chamber: Powder-coated steel
Equipment Base Equipped with casters for easy movement
Inner Chamber Dimensions W500 × D500 × H600 mm
Temperature Range -50℃ ~ +150℃
Temperature Fluctuation ≤ ±0.5℃
Temperature Precision ±0.1℃
Temperature Deviation ≤ ±2℃
Temperature Uniformity ≤ 2℃
Temperature Rate Between -40℃ and +75℃: 2~10℃/min (non-empty load), adjustable rate
Humidity Range 20% ~ 98% RH
Humidity Fluctuation (25℃~85℃) ≤ ±5% RH
Humidity Deviation (25℃~85℃) ≤ ±5% RH
Humidity Uniformity (25℃~85℃) ≤ ±3% RH
Viewing Window Explosion-proof viewing window with anti-fog and anti-condensation function
Sample Shelves 2 insulated sample shelves, load capacity ≥ 30kg, height adjustable
Overall Equipment Dimensions 1450 × 1090 × 1830 mm
Power Supply AC 380V

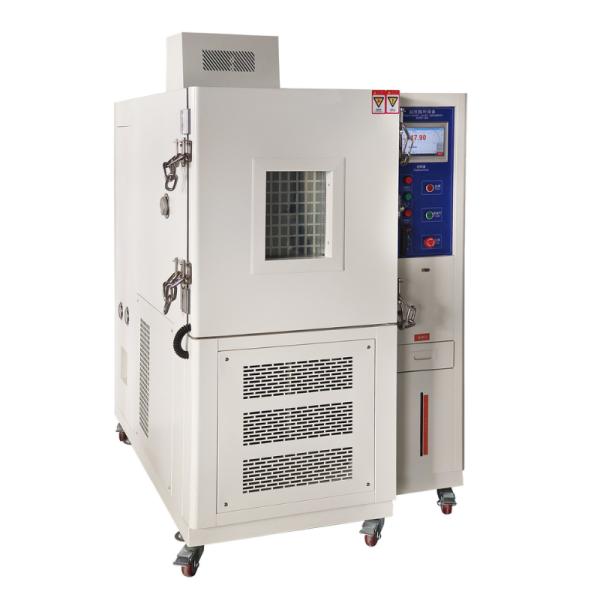

Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Key Features:
  1. Compliant with Industry Standards:Supports test profiles required by GB 31241, GB/T 2423.1, and IEC 60068, including 10+ cycles between -40℃ and +75℃ with 6-hour dwell at each extreme temperature.
  2. Precise Temperature Control:High-precision sensors and PID control ensure stable temperature holding and accurate ramp rate control, simulating real-world temperature variations.
  3. Safety-Oriented Design:Optional explosion-proof configuration (pressure relief door, explosion-proof motor, sealed wiring) prevents risks from lithium cell thermal runaway during testing.
  4. User-Friendly Operation:Touch screen interface allows quick setup of test parameters, cycle counts, and dwell times; supports data logging and export for quality traceability.
  5. Reliable Air Circulation:Unique duct design eliminates laminar airflow, ensuring uniform temperature distribution across the test chamber.
Application Scenarios:
  1. Consumer lithium-ion cell temperature cycling reliability testing (e.g., mobile phone batteries, power bank cells)
  2. Evaluation of cell capacity retention, internal resistance change, and structural stability under temperature fluctuations
  3. Compliance testing for lithium-ion battery safety certifications (CE, FCC, GB, etc.)
  4. Environmental reliability testing for lithium-ion cells during R&D and production stages

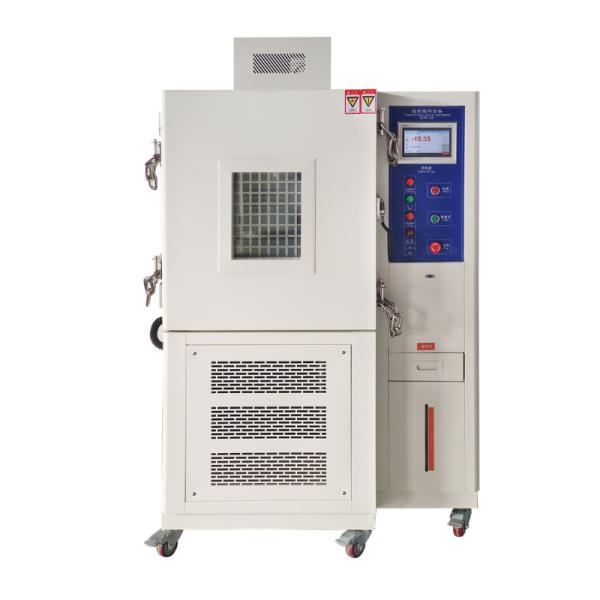

 Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
Company Profile
Temperature Cycling Test Chamber for Consumer Lithium-ion Cells
PACKING AND TRANSPORTATION

Temperature Cycling Test Chamber for Consumer Lithium-ion Cells Temperature Cycling Test Chamber for Consumer Lithium-ion Cells

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
