Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Four-Position Button Life Testing Equipment
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-209
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Max Weight :
5kg
Speed Unit :
KM/H
Standing Time :
1 to 999 SEC (set)
Air Supply :
≥0.5Mpa
Obstacle Height :
3.2mm 2pcs; 4.8mm 2pcs
Test Times Counter :
0~99999999 Times (preset)
Description

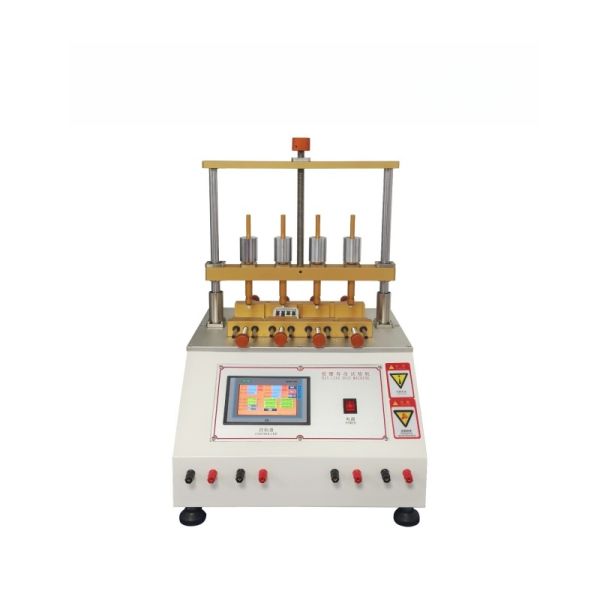

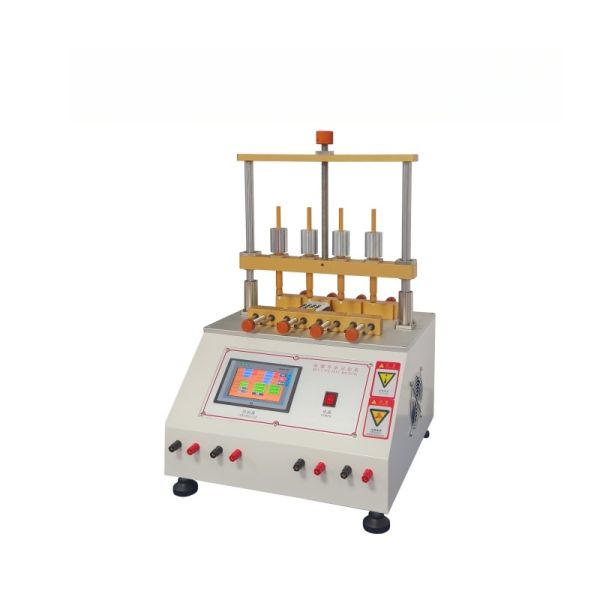

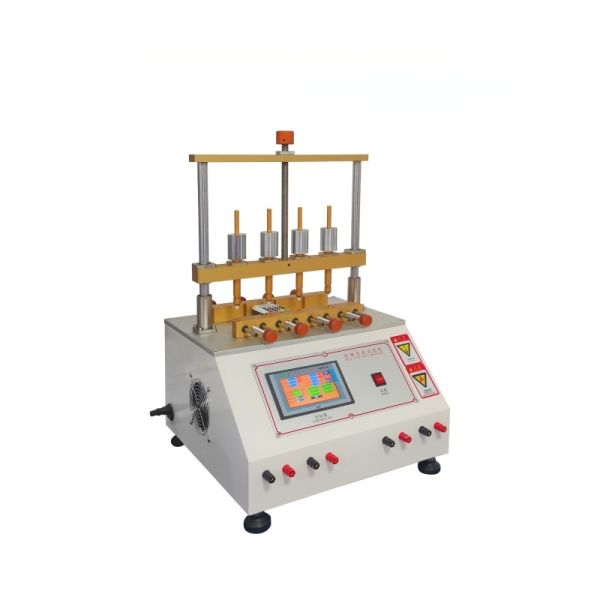

Four-Position Button Life Testing Equipment

Product use

Button life testing machine is suitable for mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control buttons, vehicle anti-theft devices, fax machine buttons, MP5, MP4, MP3, button switches, tact switches, membrane buttons, rubber Buttons, silicone buttons and other types of buttons for life test. This machine is to place the product in the test position of the corresponding station, and the button test rod simulates the service life test of the product under a certain test load, speed, stroke and number of times.

Parameters

Test station 4 (working at the same time)
2. Load weight 10, 20, 50, 100, 200g, 500g each 4

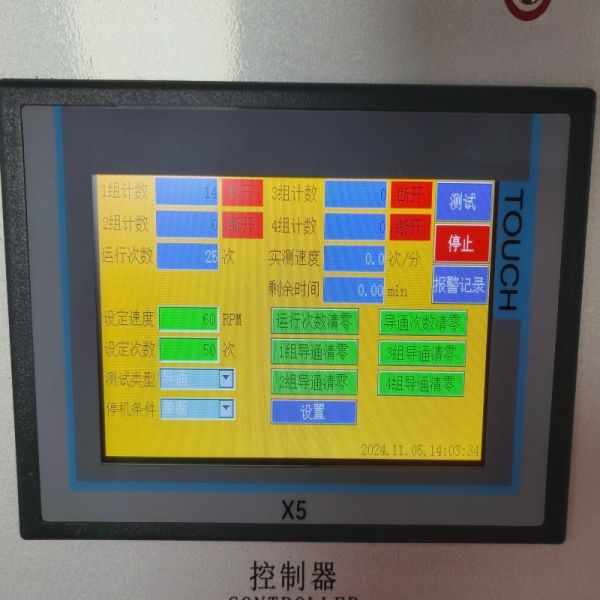

3. Test times counter 0~99999999 times (preset)
4. Test conduction times counter 0~99999999 times
(Four stations are turned on and automatically counted, and when they are disconnected, they automatically stop counting)
5. Test speed 0~60 times/min (adjustable by knob)
6. Test stroke 0~10mm (manually adjustable)
7. The conventional clamping range of the test fixture 60×100mm (manually adjustable)
8. Dimensions (L×W×H) 500×550×750mm
9. Machine weight 40kg
10. Working power supply AC220V, 50HZ

Four-Position Button Life Testing Equipment

Four-Position Button Life Testing Equipment Principle

This equipment adopts electric or pneumatic drive to perform repeated pressing tests on four buttons simultaneously. It uses an independent control system for each station, allowing adjustable test speed, stroke, and pressure. High-precision sensors and digital counters ensure accurate test data and real-time monitoring. With stable performance and synchronous operation, it evaluates button durability, fatigue life, and reliability efficiently. It meets international test standards and is widely used in quality inspection and reliability testing of various buttons and switches.

Single-Station Keypad Life Testing Machine Industrial Application

Four-Position Button Life Testing Equipment is widely applied in consumer electronics, automotive electronics, home appliances, industrial control, and communications industries. It conducts simultaneous durability tests on four buttons, keypads, and switches to verify fatigue life, reliability, and operational stability. With high efficiency and stable performance, it provides reliable test data for R&D, production inspection, and quality control. It helps manufacturers optimize product structure, improve quality, and meet industry standards and market certification requirements.

Four-Position Button Life Testing Equipment

Company Profile

Four-Position Button Life Testing Equipment

PACKING AND TRANSPORTATION

Four-Position Button Life Testing Equipment

Four-Position Button Life Testing Equipment

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
