Rotary Switch Life Tester
Rotary Switch Life Tester
Rotary Switch Life Tester
Rotary Switch Life Tester
Rotary Switch Life Tester
Rotary Switch Life Tester
Specifications
Model Number :
DJ-49
Dwell Time :
1～999 sec (adjustable)
Supply Ability :
500pcs
Applicable Product Size :
200×80×80 mm
Payment Terms :
T/T
Price :
Negotiable
MOQ :
1
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Place of Origin :
Dongguan, China
Accuracy :
±3%
Certification :
ISO9001，CE，
Test Angle :
0~360° (adjustable)
Torsion Speed :
1~360°/s (adjustable)
Machine Dimension :
Approx. 400×380×620 mm
Brand Name :
Dongjun
Description

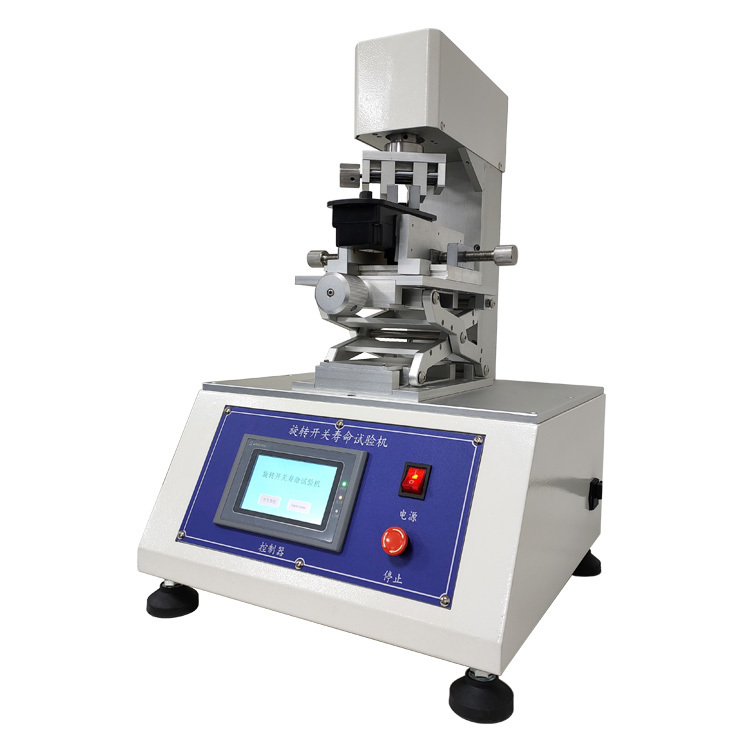

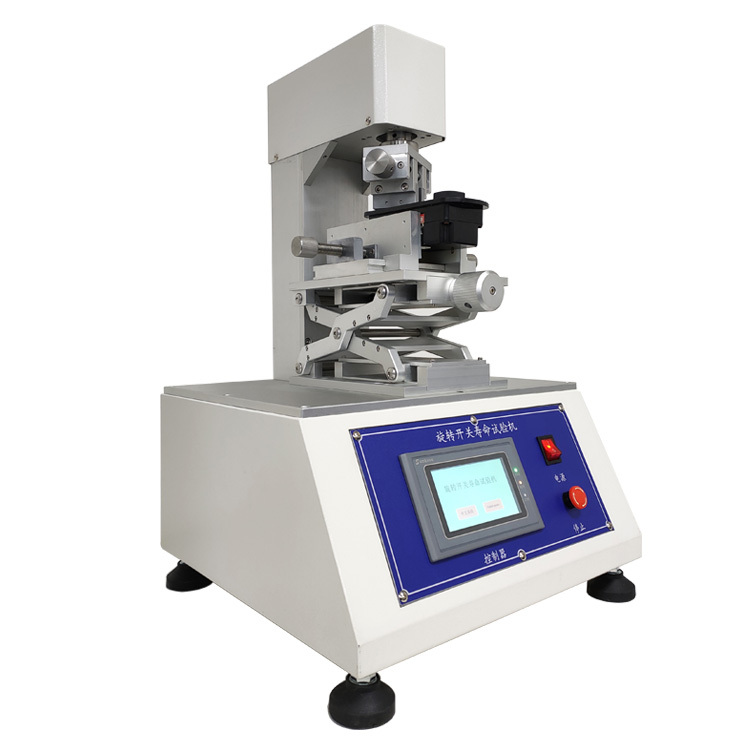

Rotary Switch Life Tester
Product Overview

Headphone Torsion Life Testing Machine

This machine has a wide range of applications and can test the fatigue life of various rotary switches. Driven by a stepper motor, the test fixture rotates left and right to conduct fatigue life tests on rotary switches.

Technical Specifications
Parameter Item Technical Specification
Test Angle 0~360° (adjustable)
Torsion Speed 1~360°/s (adjustable)
Accuracy ±3%
Test Station 1 set
Motor Stepper Motor
Dwell Time 1～999 sec (adjustable)
Applicable Product Size 200×80×80 mm
Cycle Count 1～99999999 cycles (adjustable)
Machine Dimension Approx. 400×380×620 mm
Power Supply AC220V
Machine Weight Approx. 50 kg
Product Features
Rotary Switch Life Tester
  • Adopt optimized clamping mode to avoid specimen damage caused by prolonged contact, enabling accurate and efficient tests
  • Equipped with a touchscreen controller with configurable torsion angle, torsion rate, torsion interval and dwell time
  • Supports precise counting and can automatically stop when reaching the preset number of cycles
Applications

This machine has a wide range of applications and can test the fatigue life of various rotary switches. Driven by a stepper motor, the test fixture rotates left and right to conduct fatigue life tests on rotary switches.

Rotary Switch Life Tester
Company Profile
Rotary Switch Life Tester
Frequently Asked Questions
How to install and use the product?
The product is shipped with operating instructions and video in English. We will also send you an operation video to teach you how to install and use the product with English narration. If you require face-to-face training, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed in standard export wooden boxes to ensure protection during transportation. We have extensive experience delivering testing machines internationally by sea and air without damage.
