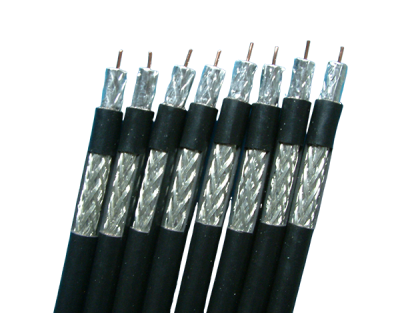

75Ω Braided Outer Conductor Coaxial Cable
75Ω Braided Outer Conductor Coaxial Cable
Specifications
Description

Product Models:

The standard braided outer conductor physical foam RF coaxial cables are available in models SYWV-75-5, SYWV-75-7, SYWY-75-7, SYWV-75-9, and SYWY-75-9.

The four-shield braided outer conductor physical foam RF coaxial cables are available in models SYWV-75-5-4P, SYWV-75-7-4P, SYWY-75-7-4P, SYWV-75-9-4P, and SYWY-75-9-4P.

Product Structure:

Item

Description

Inner Conductor

Made of Class 1 oxygen-free round copper rod, copper-clad steel wire, or copper-clad aluminum wire.

Insulation

Physical foamed polyethylene insulation.

First Shielding Layer

Longitudinally wrapped with high-quality aluminum-plastic composite tape.

Second Shielding Layer

Braided with tinned round copper wire or aluminum alloy wire.

Third Shielding Layer

Longitudinally wrapped with high-quality non-self-adhesive aluminum foil.

Fourth Shielding Layer

Braided with tinned round copper wire or aluminum alloy wire.

Jacket

Generally made of black or white PVC material, or black weather-resistant polyethylene material. Flame-retardant, low-temperature-resistant, or UV-resistant jacket materials are also available upon request. A double-jacket structure of PVC and polyethylene can also be adopted. If necessary, galvanized steel wire can be added for high tensile strength.

Product Features:
These cables offer excellent high-frequency performance, low attenuation, uniform impedance, good flexibility, and a small bending radius. They are designed to meet the requirements of broadband and high-speed integrated information networks.

Applications:
Suitable for one-way and two-way transmission of analog signals below 1.5GHz, and also suitable for one-way and two-way transmission of digital signals.
