0.6/1KV XLPE Insulated Power Cable
0.6/1KV XLPE Insulated Power Cable
Specifications
Value :
12D
Parameter :
Minimum bending radius
Description

0.6/1kV XLPE Insulated Copper Conductor Power Cable

Product Description

The 0.6/1kV XLPE Insulated Power Cable is designed for low voltage power transmission and distribution applications. It features cross-linked polyethylene (XLPE) insulation, offering excellent electrical performance, thermal stability, and long-term reliability.

This cable is widely used in power plants, substations, industrial facilities, and urban or rural power distribution networks. It is suitable for fixed installation in indoor, outdoor, underground, cable duct, and other electrical power systems.

With high insulation resistance, good mechanical strength, and excellent resistance to heat aging, XLPE insulated power cables provide a safe and efficient solution for modern electrical installations.

Product Features

  • Rated voltage: 0.6/1kV
  • XLPE insulation with excellent thermal and electrical performance
  • High insulation resistance and low dielectric loss
  • Excellent resistance to heat aging and environmental conditions
  • Suitable for indoor, outdoor, underground, and cable duct installation
  • Stable transmission performance and long service life
  • Available with copper or aluminum conductor options
  • Custom specifications available according to project requirements

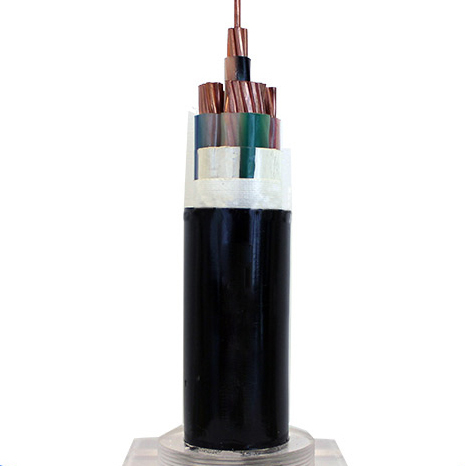

Cable Structure

Conductor

  • Material: Copper / Aluminum
  • Type: Stranded compact conductor (optional)

Insulation

  • Material: Cross-linked polyethylene (XLPE)

Inner Sheath (Optional)

  • Material: PVC / PE

Armoring (Optional)

  • Steel tape armor (STA)
  • Steel wire armor (SWA)

Outer Sheath

  • Material: PVC / PE


Technical Specifications

Item Specification
Rated Voltage 0.6/1kV
Conductor Material Copper / Aluminum
Insulation Material XLPE
Sheath Material PVC / PE
Operating Temperature Up to 90°C
Short Circuit Temperature Up to 250°C
Installation Temperature ≥0°C (standard)
Standards IEC 60502-1 / Equivalent standards
Application Power transmission and distribution
