Creator Cooling Only Rooftop Units 6.2-30 Ton Stable Operation up to 52°C HVAC Solution for Tropical Commercial Buildings
Creator Cooling Only Rooftop Units 6.2-30 Ton Stable Operation up to 52°C HVAC Solution for Tropical Commercial Buildings
Creator Cooling Only Rooftop Units 6.2-30 Ton Stable Operation up to 52°C HVAC Solution for Tropical Commercial Buildings
Creator Cooling Only Rooftop Units 6.2-30 Ton Stable Operation up to 52°C HVAC Solution for Tropical Commercial Buildings
Specifications
Brand Name :
Hongtai，OEM；Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
Cooling Only Series
Cooling Capacity :
22.0kW - 98.0kW
Compressor Type :
International Brand Scroll
Power Supply :
380-415V 3N~ 50Hz
Description

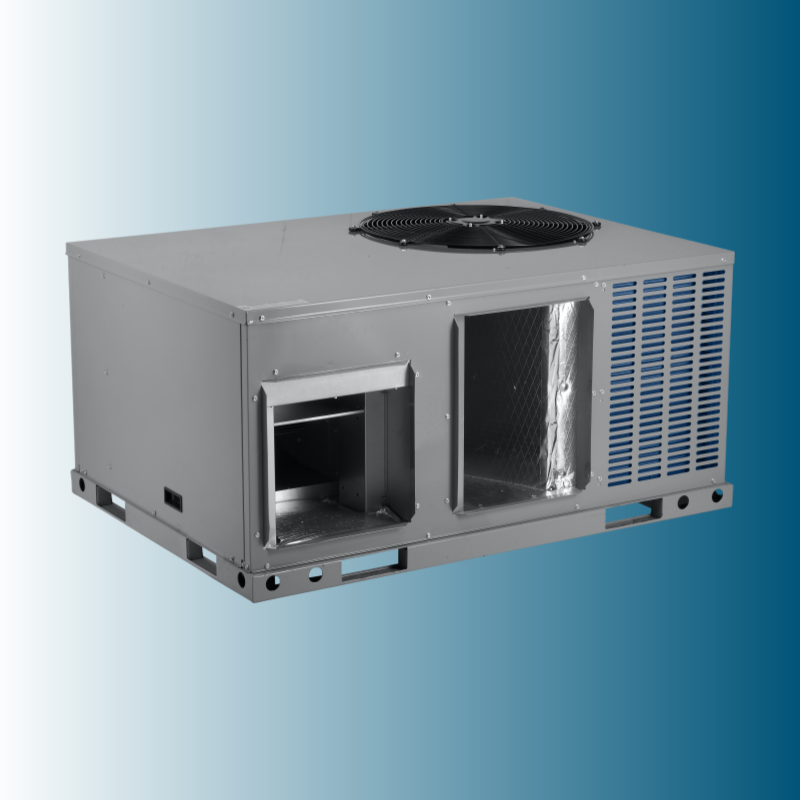

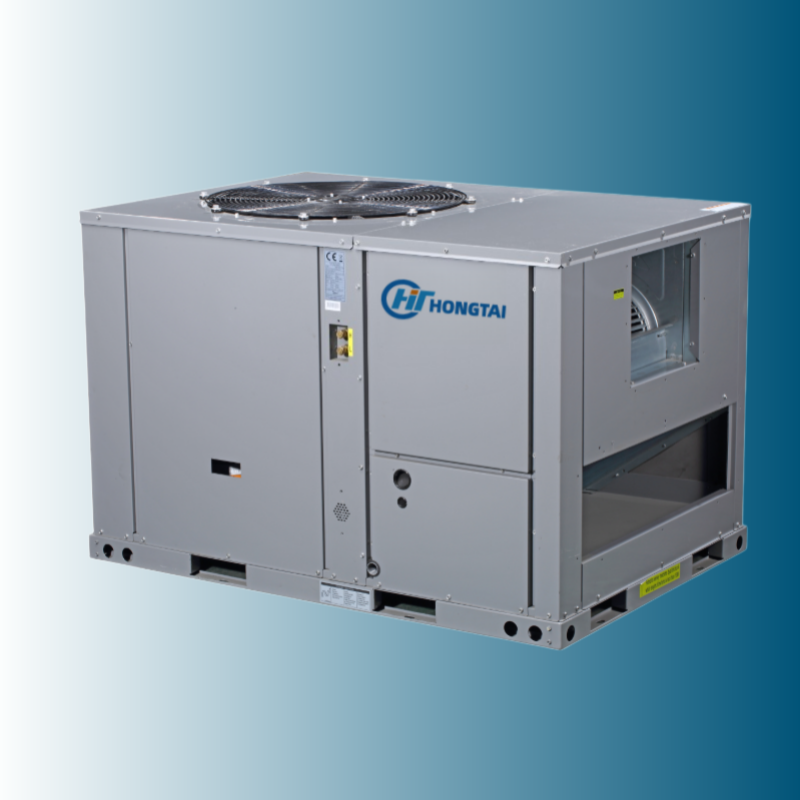

Creator Cooling Only Rooftop Units 6.2-30 Ton
Stable operation up to 52°C HVAC solution for tropical commercial buildings
Product Overview
The Creator Series Cooling Only Rooftop Package is an integrated central air conditioning solution designed specifically for locations with cooling-only requirements. With capacities ranging from 6.2 to 30 tons and featuring vertical side-discharge structure design, it supports both rooftop and ground installation. Optimized for tropical and subtropical regions, it operates stably within an ultra-wide ambient temperature range from 10°C to 52°C.
Each unit is factory pre-assembled, including internal wiring, refrigerant charging, and 100% run testing. Equipped with internationally renowned brand scroll compressors, the energy efficiency ratio reaches up to 11.3 Btu/h*W. Specially optimized for high-temperature regions, it maintains stable operation even at extreme temperatures of 52°C, making it ideal for shopping malls, office buildings, factories, and other commercial applications.
Core Features
High Temperature Environment Optimization Design
  • Ultra-wide operating temperature range: Stable operation at 10°C to 52°C ambient temperature
  • Tropical region special optimization: Designed specifically for high-temperature climate conditions
  • System heat dissipation optimization: Ensures reliable operation under extreme high temperatures
High Efficiency Energy Saving System
  • Internationally renowned brand compressors: Copeland / Hitachi / Danfoss and other scroll compressors
  • High efficiency heat exchanger: Optimized design enhances heat transfer efficiency
  • High energy efficiency performance: EER up to 11.3 Btu/h*W, effectively reducing operating costs
High Reliability Anti-Corrosion Design
  • Special anti-corrosion treatment for heat exchanger: 5-6 times higher resistance to acid rain and salt corrosion
  • Double-side moisture proof paint on PCB boards: Comprehensive protection for electrical systems
  • Spray-painted electric box metal cover: Double anti-corrosion protection
  • Anti-rust treatment for all screws
  • Anti-rust for unit casing and motors
  • 500 hours salt spray test certification
Easy Maintenance Design
  • Easy access doors design: Removable access doors on filter, fan motor, and electric box sections
  • External pressure gauge ports: Quick system pressure check without removing panels (7.5-15 Ton models)
  • Easily connect drainage pipe: Reserved external drainage port
  • System self-diagnostic function: LED display on PCB shows fault codes
  • Washable filter
Flexible Installation Design
  • Vertical side-discharge structure
  • Standard air inlet and outlet flanges
  • Suitable for both rooftop and ground installation
  • Factory pre-assembled: Complete assembly, wiring, charging, and testing at factory
Multiple Safety Protections
  • System current protection
  • High / low pressure protection
  • Temperature sensor protection
  • Three-phase protector available as option
Application Scenarios
Tropical and Subtropical Region Buildings
  • Commercial buildings in high-temperature regions
  • Coastal area projects (anti-corrosion models)
  • Locations with year-round cooling requirements
Commercial Buildings
  • Shopping centers, department stores
  • Supermarkets, hypermarkets
  • Office buildings, corporate offices
Industrial and Special Applications
  • Factory production workshops
  • Data centers, server rooms
  • Warehousing and logistics centers
  • Stadiums, exhibition centers
Certifications and Standards
(Same as Heat Pump Series, please refer to the Heat Pump certifications and standards section)
  • ISO 9001 / ISO 14001 / OHSAS 18001 Certification
  • International brand compressors
  • 500 hours salt spray test
  • 100% factory run test
  • G90 galvanized heavy gauge plate (ASTM-A-653)
  • 30 global spare parts centers service support
Technical Specifications
Parameter MRCT-062CWN1-R(C) MRCT-075CWN1-R(C) MRCT-085CWN1-R(C) MRCT-100CWN1-R(C)
Nominal Ton 6.2 RT 7.5 RT 8.5 RT 10 RT
Cooling Capacity (Btu/h) 74,000 102,000 120,000 -
Cooling Capacity (kW) 22.0 30.0 35.0 -
Cooling Power Input (kW) - 9.2 10.7 -
EER (Btu/h *W) - 11.1 11.2 -
Power Supply 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz
Compressor Type International Brand Scroll International Brand Scroll International Brand Scroll International Brand Scroll
External Pressure Gauge Ports - ✓ ✓ ✓
Parameter MRCT-125CWN1-R(C) MRCT-150CWN1-R(C) MRCT-175CWN1-R(C) MRCT-200CWN1-R(C) MRCT-250CWN1-R(C) MRCT-300CWN1-R(C)
Nominal Ton 12.5 RT 15 RT 17.5 RT 20 RT 25 RT 30 RT
Cooling Capacity (Btu/h) 150,000 180,000 - - - -
Cooling Capacity (kW) 44.0 53.0 - - - -
Cooling Power Input (kW) 13.3 16.7 - - - -
EER (Btu/h *W) 11.3 10.8 - - - -
Power Supply 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz 380-415V 3N~ 50Hz
Compressor Type International Brand Scroll International Brand Scroll International Brand Scroll International Brand Scroll International Brand Scroll International Brand Scroll
External Pressure Gauge Ports ✓ ✓ - - - -
