Specifications
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
V8 Eco VRF System
Capacity Range :
8-80HP (Combined) / 8-28HP (Single Unit)
Power Supply :
380-415V / 3Ph / 50Hz
Cooling Capacity :
22.4kW - 80kW (Single Unit)
Heating Capacity :
25.0kW - 90kW (Single Unit)
Refrigerant :
R410A (R32 optional)
IEER :
8.00 - 9.00
SEER :
7.80 - 8.80
Description

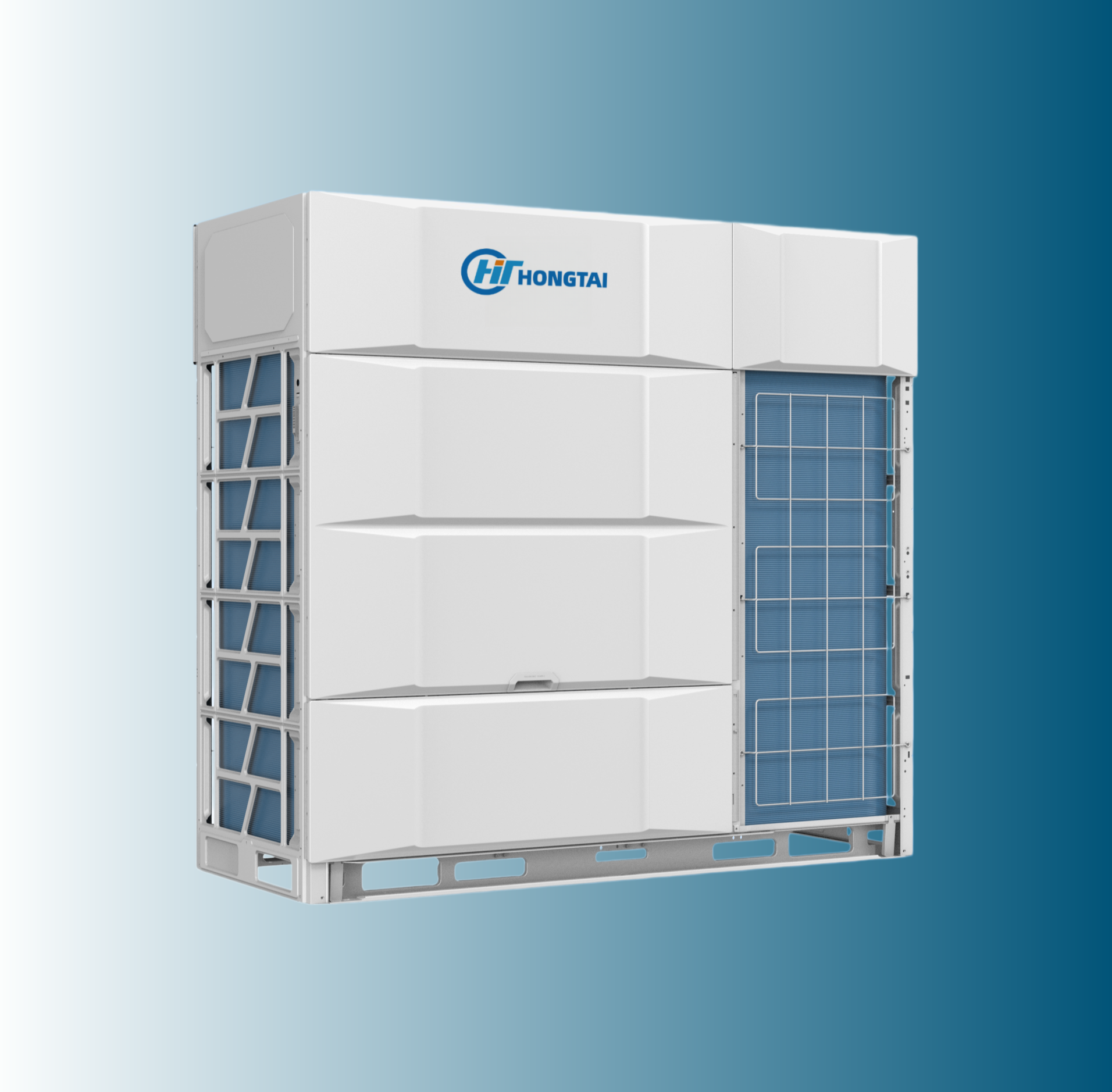

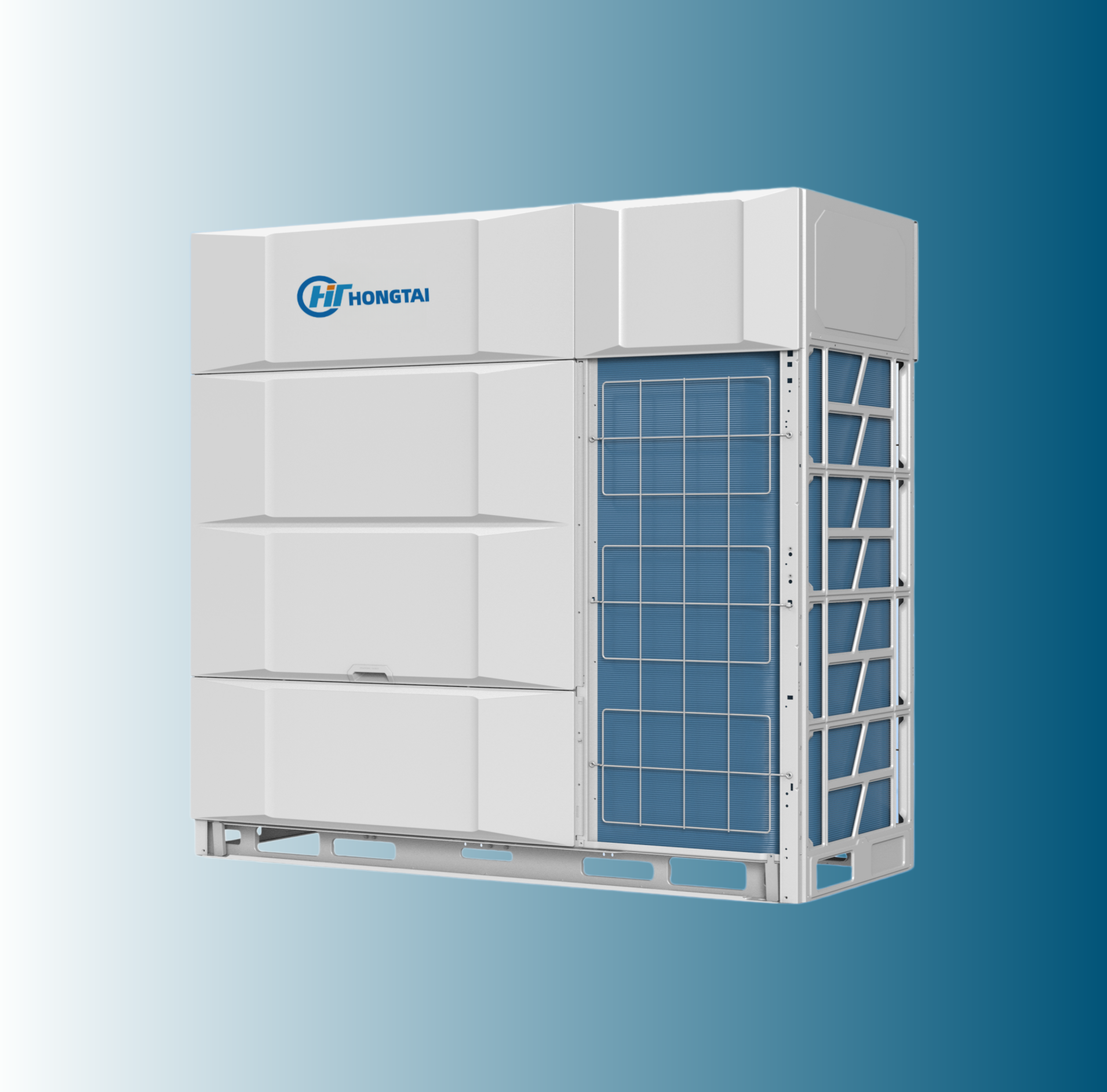

V8 Eco VRF System 8-80HP: Sustainable Climate Control with 30% Energy Savings
Product Overview
The V8 Eco VRF system delivers industry-leading energy efficiency with environmentally conscious design, achieving IEER ratings up to 9.0 and up to 30% energy savings compared to conventional systems. Engineered for green building certifications and long-term carbon reduction targets, this system incorporates advanced heat recovery technology, optimized part-load performance, and intelligent demand-based operation that matches cooling capacity precisely to building requirements.
Key Features
  • IEER 9.0 Maximum Efficiency: Achieves up to 30% annual energy savings through advanced compressor technology and optimized refrigerant circuit design
  • Heat Recovery Technology: Simultaneous heating and cooling with COP values exceeding 6.0, capturing waste heat from cooling zones for heating requirements
  • Demand-Based Intelligent Operation: Real-time optimization based on occupancy patterns, weather conditions, and internal heat loads
  • Green Building Certification Ready: Pre-engineered to meet LEED, BREEAM, and DGNB certification requirements
  • Advanced Heat Exchanger Design: Micro-channel design with hydrophilic coating improves heat transfer efficiency by 15% and reduces refrigerant requirements
Applications
  • Green Building Projects targeting LEED, BREEAM, or DGNB certification
  • Corporate Campuses with carbon neutrality commitments
  • Educational Institutions prioritizing energy efficiency
  • Government Buildings requiring environmental compliance
  • Eco-Tourism Resorts emphasizing sustainability
  • Retrofit Projects for energy reduction in existing buildings
Certifications & Standards
  • Eurovent Certified Performance
  • CE Marking
  • ISO 14064 Carbon Footprint Verified
  • ERP Energy Efficiency Compliant
  • RoHS Compliant
  • REACH Compliant
Technical Specifications
Parameter Specification
Capacity Range 8-80HP (Combined) / 8-28HP (Single Unit)
Cooling Capacity 22.4kW - 80kW (Single Unit)
Heating Capacity 25.0kW - 90kW (Single Unit)
Refrigerant R410A (R32 optional)
IEER 8.00 - 9.00
SEER 7.80 - 8.80
Heat Recovery COP Up to 6.0 (simultaneous mode)
Power Supply 380-415V / 3Ph / 50Hz
Maximum Piping Length 800m total / 180m equivalent
Vertical Separation 90m
Indoor Units per System Up to 56
Combination Ratio 50%-130%
Operating Range (Cooling) -10°C to 48°C
Operating Range (Heating) -25°C to 24°C
