Specifications
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
One-Way Cassette
Capacity Range :
1.8-7.1kW
Power Supply :
220-240V / 1Ph / 50Hz
Refrigerant :
R32 (GWP=675, Zero ODP)
Sound Pressure Level :
22-37 dB(A)
Sound Power Level :
36-51 dB(A)
Dimensions (W×H×D) :
1054×130×428 mm
Refrigerant Connection :
Liquid: Ø6.35 / Gas: Ø12.7 mm
Description

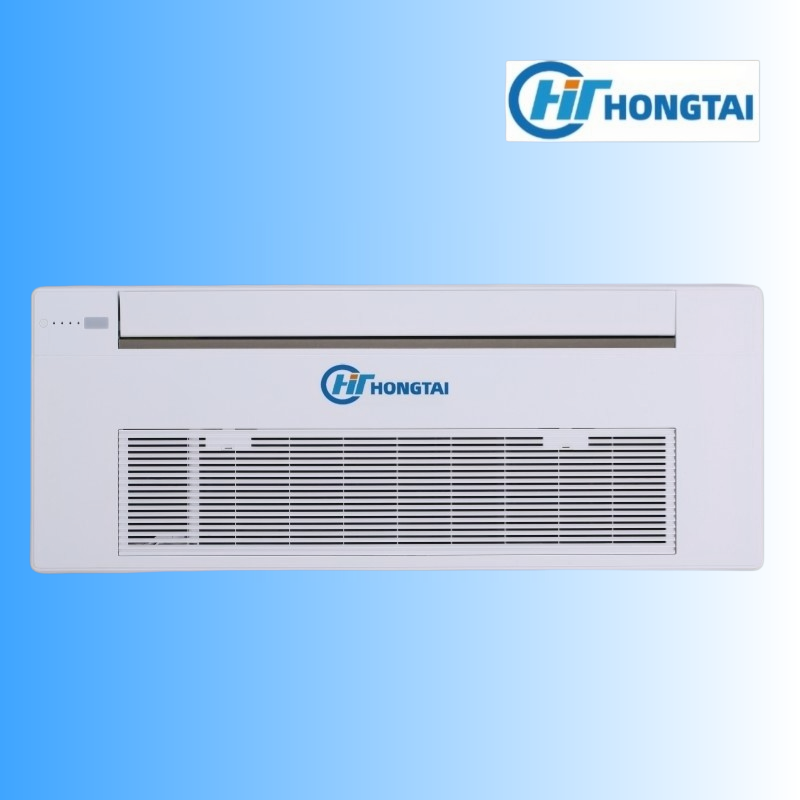

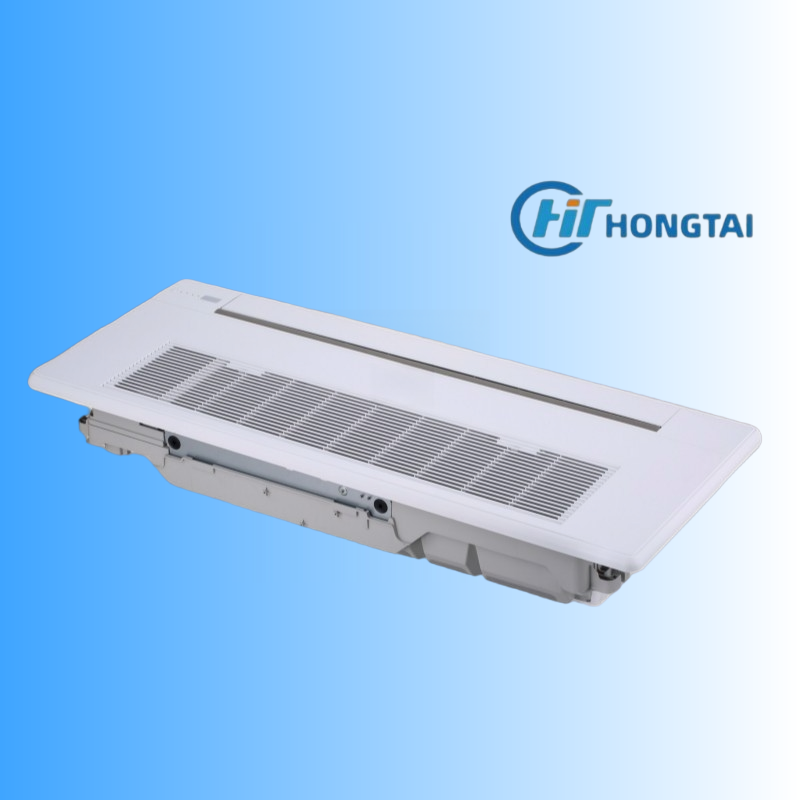

One-Way Cassette AC Unit: Best Value Single Direction System
The One-Way Cassette AC unit delivers the perfect balance of aesthetic design and performance efficiency. With its ultra-slim 130mm profile, this cassette unit integrates seamlessly into any ceiling space while providing powerful heating and cooling capabilities across a 1.8-7.1kW capacity range.
Product Overview
Engineered with a redesigned fan motor, air duct, and heat exchanger, the One-Way Cassette achieves near-silent operation as low as 22dB(A), ensuring tranquil indoor environments perfect for bedrooms, hotels, and noise-sensitive applications. Advanced features include automatic anti-condensation mode that detects operating conditions and adjusts guide vane angles to prevent condensation, plus precise 0.5°C/1°C temperature adjustment for optimal comfort control.
Key Features
  • 130mm Ultra-Slim Design: Space-saving profile provides flexible installation options for various ceiling configurations
  • 22dB(A) Near-Silent Operation: Redesigned components achieve whisper-quiet performance for noise-sensitive environments
  • Automatic Anti-Condensation Mode: Intelligent system monitors conditions and adjusts guide vane angles to prevent condensation
  • Digital Display & Alert Control: Display deactivation and silent mode for undisturbed sleeping environments
  • Precise Temperature Control: 0.5°C/1°C increment adjustment for demanding comfort requirements
Applications
Bedrooms: Ultra-quiet operation ensures undisturbed sleep
Hotel Rooms: Compact design fits seamlessly into any decor
Home Offices: Quiet operation for focused work environments
Small Retail Spaces: Efficient cooling/heating with minimal noise
Medical Offices: Clean, quiet operation for patient comfort
Libraries: Whisper-quiet performance for study environments
Certifications & Standards
Eurovent Certified Performance
ERP Energy Efficiency
RoHS Compliant
Technical Specifications
Parameter Specification
Capacity Range 1.8-7.1kW
Power Supply 220-240V / 1Ph / 50Hz
Sound Pressure Level 22-37 dB(A)
Sound Power Level 36-51 dB(A)
Airflow Rate 380-760 m³/h
Dimensions (W×H×D) 1054×130×428 mm
Net Weight 11.5-11.8 kg
Refrigerant Connection Liquid: Ø6.35 / Gas: Ø12.7 mm
