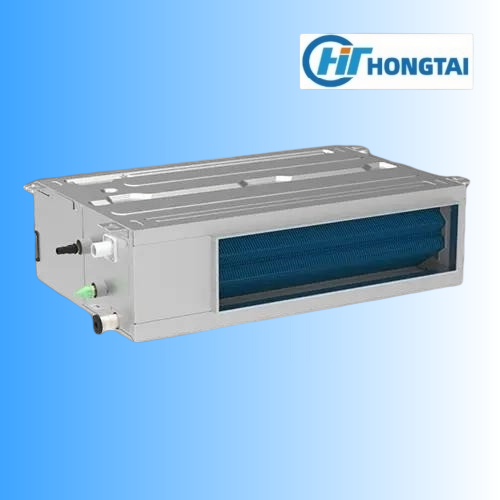

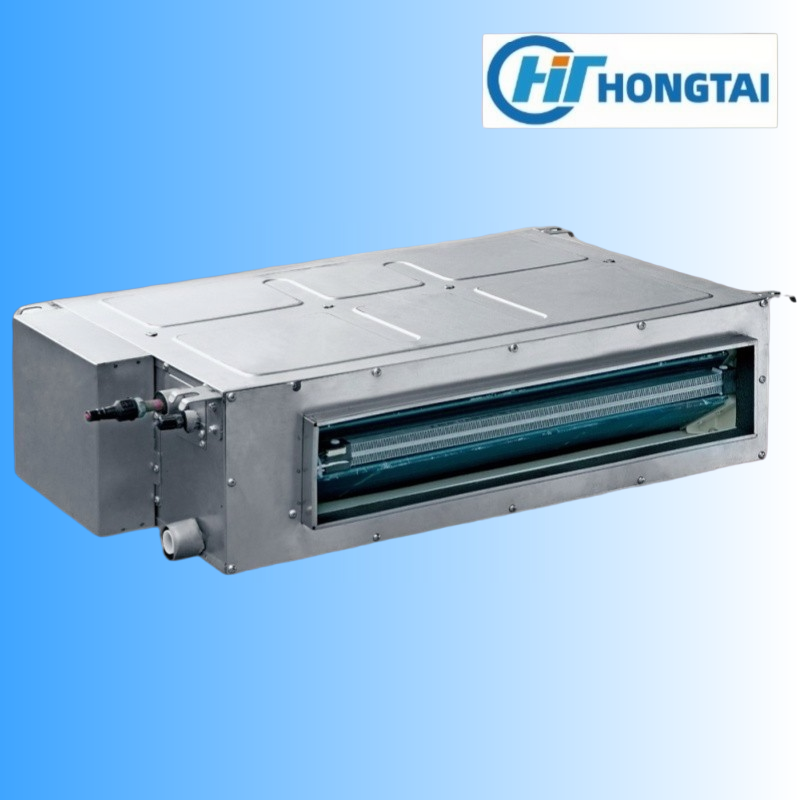

V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup
V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup
V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup
V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup
Specifications
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
Arc Duct
Capacity Range :
2.2-14kW
Power Supply :
220-240V / 1Ph / 50Hz
Sound Pressure Level :
22-40 dB(A)
Dimensions (W×H×D) :
920×199×630 mm
Airflow Rate :
480-2000 m³/h
Description
V8 Arc Duct: Stylish Curved Duct AC with Affordable Luxury
The V8 Arc Duct features flexible duct connection with easy setup, combining innovative design with premium performance for residential and commercial applications.
Product Overview
The Arc Duct features an innovative integrated C-shaped heat exchanger that facilitates rapid drainage without accumulating dust or ash. This unique design promotes healthier indoor air quality while delivering efficient cooling and heating.
With an ultra-slim 199mm profile and capacities from 2.2-14kW, the Arc Duct is ideal for installation in narrow spaces where traditional ducted units would not fit.
The constant airflow technology ensures that air volume output remains consistent regardless of duct length or filter resistance, overcoming installation challenges and maintaining optimal performance.
Key Features
C-Shaped Heat Exchanger
The integrated C-shaped heat exchanger facilitates rapid drainage without accumulating dust or ash. This innovative design promotes healthier air quality and easier maintenance.
199mm Ultra-Slim Design
All models feature an ultra-low profile height of just 199mm. This space-saving design makes installation easier, especially in narrow spaces where traditional ducted units cannot fit.
Constant Airflow Technology
Digital fan technology monitors and maintains consistent air volume output levels, overcoming installation challenges and ensuring optimal performance even with prolonged use.
22dB(A) Quiet Operation
Redesigned fan motor, air duct, and heat exchanger achieve near-silent operation at just 22dB(A), ensuring a tranquil and comfortable indoor environment.
High-Lift Drain Pump
Drain pump features a 1200mm raised height for simplified installation and efficient drainage. Drain-pump fault alert provides early warning of any issues.
Applications
  • Narrow Ceiling Spaces – Ultra-slim design fits tight installations
  • Bedrooms – Quiet operation for undisturbed sleep
  • Offices – Concealed installation maintains aesthetics
  • Corridors – Long, narrow design ideal for hallways
  • Hotels – Discreet installation with premium comfort
  • Residential – Clean air delivery with minimal intrusion
Certifications & Standards
  • Eurovent Certified Performance
  • ERP Energy Efficiency
  • RoHS Compliant
Technical Specifications
Capacity Range 2.2-14kW
Power Supply 220-240V / 1Ph / 50Hz
Sound Pressure Level 22-40 dB(A)
Airflow Rate 480-2000 m³/h
External Static Pressure 10-30 Pa
Dimensions (W×H×D) 920×199×630 mm
Net Weight 24.0-32.0 kg
Drain Pump Lift 1200 mm
V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup V8 Arc Duct Stylish Curved Duct AC Affordable Luxury Flexible Duct Connection Easy Setup
