One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB
One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB
One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB
One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB
Specifications
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
One-Way Cassette
Capacity Range :
1.8 - 7.1 kW (0.6 - 2.4 US Tons)
Power Supply :
220-240V, 50Hz, 1-phase
Sound Pressure Level :
22 - 45 dB(A)
Airflow Rate :
300 - 1050 m³/h
Refrigerant :
R410A / R32
Net Dimensions (W×H×D) :
700-1200 × 130-150 × 425 mm
Liquid/Gas Pipe :
Φ6.35 / Φ12.7 mm
Description
One-Way Cassette VRF Indoor Unit
Ultra-slim 130mm ceiling-concealed unit designed for whisper-quiet operation at 22dB, ideal for hotels and spaces with limited ceiling height.
Product Overview
The One-Way Cassette is an elegant and compact ceiling-concealed unit engineered for environments where ceiling height is restricted. With an ultra-slim profile of just 130mm, this unit integrates seamlessly into tight ceiling spaces, making it perfect for modern offices, hotel accommodations, and residential applications. The single-direction airflow design ensures efficient climate management while maintaining a clean, unobtrusive aesthetic.
Featuring advanced DC inverter technology, the One-Way Cassette provides precise temperature regulation with energy-efficient performance. The redesigned fan motor, air duct, and heat exchanger achieve exceptionally quiet operation as low as 22dB(A), creating a peaceful indoor environment without sacrificing cooling or heating capability.
Key Features & Benefits
  • Ultra-Slim Design: Body height of only 130mm, the most compact cassette design available, suitable for limited ceiling spaces
  • Whisper-Quiet Operation: Noise levels as low as 22dB(A) through redesigned fan motor, air duct, and heat exchanger
  • Automatic Anti-Condensation: Smart detection system adjusts guide vane angle to prevent condensation on unit surfaces
  • Digital Display On/Off: Indoor unit displays can be deactivated at night for a darker, sleep-friendly environment
  • High-Lift Drain Pump: 1200mm raised height drain pump simplifies installation and ensures efficient condensation removal
  • Auto Cooling/Heating Changeover: Automatically switches between cooling and heating modes to reach set temperature efficiently
  • Home Leave Mode: Maintains energy-saving indoor temperature during prolonged absences
Intelligent Comfort Functions
The unit incorporates smart comfort features including an automatic anti-condensation mode that detects operating conditions and adjusts the outlet angle of the guide vane to prevent condensation. With 0.5°C/1°C increment temperature adjustment, users can fine-tune their comfort settings with exceptional precision.
Applications
  • Office Buildings: Individual offices and meeting rooms requiring discrete climate control
  • Hotel Rooms: Space-efficient cooling/heating with quiet operation for guest comfort
  • Residential Apartments: Bedrooms and living spaces with limited ceiling height
  • Retail Shops: Boutique stores and small retail spaces with aesthetic requirements
  • Healthcare Facilities: Patient rooms requiring precise temperature and quiet operation
Certifications & Standards
  • Eurovent Certified Performance
  • CE Compliance (EU Safety Standards)
  • RoHS Compliant
  • ISO 9001:2015 Quality Management
  • ISO 14001:2015 Environmental Management
Technical Specifications
Capacity Range 1.8 - 7.1 kW (0.6 - 2.4 US Tons)
Power Supply 220-240V, 50Hz, 1-phase
Sound Pressure Level 22 - 45 dB(A)
Airflow Rate 300 - 1050 m³/h
Net Dimensions (W×H×D) 700-1200 × 130-150 × 425 mm
Refrigerant Type R410A / R32
Liquid/Gas Pipe Φ6.35 / Φ12.7 mm

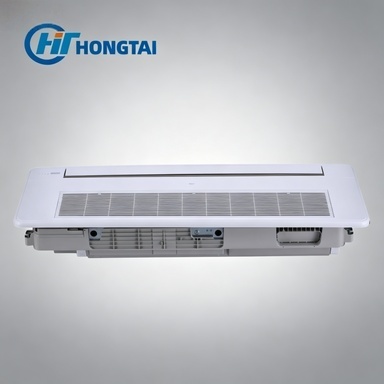

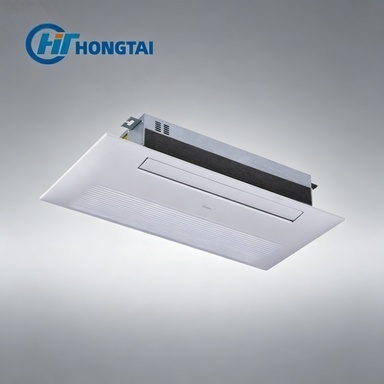

Product Images
One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB One-Way Cassette VRF Indoor Unit Ultra-Slim 130mm for Hotels Whisper Quiet 22dB
