Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation
Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation
Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation
Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation
Specifications
Net Dimensions (W×H×D) :
1172 × 299 × 591 mm
Sound Pressure Level :
22 - 44 dB(A)
Liquid/Gas Pipe :
Φ6.35 / Φ12.7 - Φ9.52 / Φ15.9 mm
Place of Origin :
China
Power Supply :
220-240V, 50Hz, 1-phase
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Airflow Rate :
458 - 1200 m³/h
Product Name :
Two-Way Cassette
Refrigerant Type :
R410A / R32
Capacity Range :
2.2 - 7.1 kW (0.7 - 2.4 US Tons)
Description

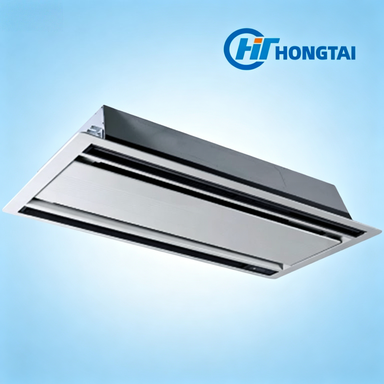

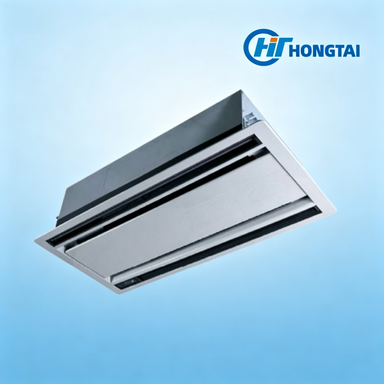

Two-Way Cassette AC: Adjustable Airflow for Commercial Spaces
This ceiling-concealed two-way cassette unit features bidirectional airflow design that provides wide, even air distribution across larger commercial spaces. Ideal for environments requiring consistent temperature control such as open-plan offices, retail spaces, and conference halls.
Advanced DC water pump monitoring technology actively tracks pump speed and water flow, issuing real-time alerts for leakages, jamming, or other anomalies to prevent potential water damage and ensure reliable operation.
With 5-step louver control and auto swing mode, the unit offers precise airflow direction adjustment with an air supply angle range of 35° to 65°. The high-lift drain pump with 1200mm raised height simplifies installation in challenging ceiling configurations.
Key Features & Benefits
  • Bidirectional Airflow: Dual-direction discharge provides wide, even air distribution for larger spaces
  • Digital DC Water Pump Monitor: Active monitoring of pump speed and water flow with real-time anomaly alerts
  • Multi-Step Vertical Swing: 5-step louver control with 35°-65° air supply angle for precise airflow direction
  • High-Lift Drain Pump: 1200mm raised height enables flexible installation options
  • Ultra-Slim Body: Compact design with low profile suitable for various ceiling configurations
  • Auto Cooling/Heating Changeover: Automatic mode switching based on temperature requirements
  • Quiet Operation: Low noise levels down to 22dB(A) for comfortable indoor environments
Recommended Applications
  • Open-Plan Offices – Large office spaces requiring uniform climate control
  • Conference Halls – Meeting rooms with variable occupancy and airflow needs
  • Retail Showrooms – Large retail spaces with continuous customer traffic
  • Educational Institutions – Classrooms and lecture halls
  • Commercial Buildings – Reception areas and common spaces
Certifications & Standards
  • Eurovent Certified Performance
  • CE Compliance (EU Safety Standards)
  • RoHS Compliant
  • ISO 9001:2015 Quality Management
  • ErP Directive Compliant
Technical Specifications
Capacity Range 2.2 - 7.1 kW (0.7 - 2.4 US Tons)
Power Supply 220-240V, 50Hz, 1-phase
Sound Pressure Level 22 - 44 dB(A)
Airflow Rate 458 - 1200 m³/h
Net Dimensions (W×H×D) 1172 × 299 × 591 mm
Refrigerant Type R410A / R32
Liquid/Gas Pipe Φ6.35 / Φ12.7 - Φ9.52 / Φ15.9 mm
Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation Two-Way Cassette AC Adjustable Airflow for Commercial Spaces Flexible Installation
