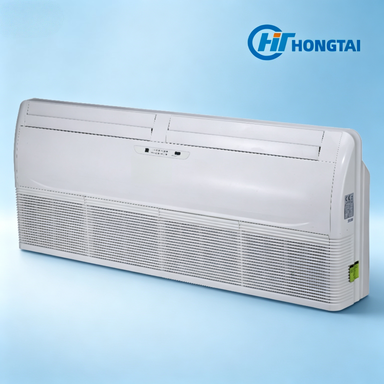

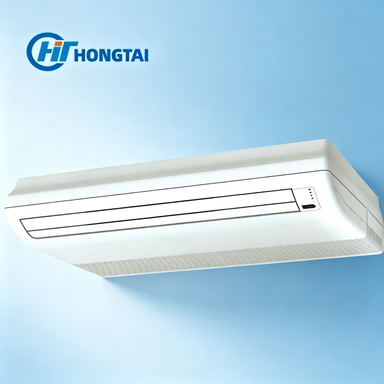

Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW
Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW
Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW
Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW
Specifications
Product Name :
Ceiling Floor Units
Heating Capacity :
4.0 - 16.0 kW
Power Supply :
1-phase, 220-240V, 50Hz
Sound Pressure Level :
25 - 51.5 dB(A)
Model Series :
MIH-DLN18
Airflow Rate :
424 - 2206 m³/h (7 speeds)
Place of Origin :
China
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Net Dimensions (W×H×D) :
1069-1649×674×234 mm
Refrigerant Type :
R410A/R32
Capacity Range :
3.6 - 14.0 kW (12.3 - 47.8 kBtu/h)
Cooling Capacity :
3.6 - 14.0 kW
Description
Versatile Ceiling/Floor AC Unit for Commercial Applications
The V8 Ceiling Floor Units offer exceptional installation flexibility with horizontal ceiling suspension or vertical floor/wall mounting options. This versatile design is perfect for spaces with limited wall area or restricted ceiling access. Featuring a sleek modern appearance, these units complement any interior while advanced DC motor technology ensures whisper-quiet operation and superior energy efficiency.
With 5-step louver control providing adjustable air supply angles from 35° to 65°, these units deliver precise airflow direction for optimal comfort. The dual-thermistor control system monitors temperature through both the wired controller and indoor unit, ensuring accurate and consistent climate control throughout your space.
The auto cooling/heating changeover feature automatically switches between modes based on room conditions, while multi-step vertical swing ensures uniform airflow distribution. With airflow rates up to 2206 m³/h, these units provide rapid temperature adjustment for various room sizes.
Key Features & Benefits
  • Capacity Range: 3.6 - 14.0 kW (12.3 - 47.8 kBtu/h) for comprehensive coverage
  • Flexible 2-Way Installation: Horizontal ceiling mount OR vertical floor/wall mount
  • DC Fan Motor & Water Pump: Quieter operation and improved energy efficiency
  • 5-Step Louver Control: Adjustable air supply angle (35-65°) for optimal airflow direction
  • Dual-Thermistor Control: Temperature check via wired controller or indoor unit
  • Auto Cooling/Heating Changeover: Automatic mode switching based on room conditions
  • Multi-Step Vertical Swing: Uniform airflow distribution for consistent temperature
  • Quiet Operation: Low sound levels suitable for noise-sensitive environments
  • External Drain Pump Available: Optional pump for flexible drainage installation
  • High Airflow Capacity: Up to 2206 m³/h for rapid temperature adjustment
  • Wide Model Range: From compact 3.6 kW to powerful 14.0 kW units
Ideal Applications
  • Rooms with limited wall space requiring floor-standing alternatives
  • Large open-plan offices with structural ceiling limitations
  • Reception areas and lobbies
  • Conference rooms requiring flexible positioning
  • Retail spaces with changing layouts
  • Healthcare facilities with specific installation requirements
  • Rooms with historical preservation restrictions
Certifications & Standards
  • ISO 9001:2015 Quality Management System
  • ISO 14001:2015 Environmental Management System
  • CE Certification for European Market
  • ERP (Energy-related Products) Directive Compliance
  • RoHS (Restriction of Hazardous Substances) Compliant
  • IEC 60335 Safety Standards
Technical Specifications
Parameter Specification
Model Series MIH-DLN18
Capacity Range 3.6 - 14.0 kW (12.3 - 47.8 kBtu/h)
Power Supply 1-phase, 220-240V, 50Hz
Cooling Capacity 3.6 - 14.0 kW
Heating Capacity 4.0 - 16.0 kW
Cooling Power Input 16 - 140 W
Heating Power Input 16 - 140 W
Airflow Rate 424 - 2206 m³/h (7 speeds)
Sound Pressure Level 25 - 51.5 dB(A)
Net Dimensions (W×H×D) 1069-1649×674×234 mm
Net Weight 24.7 - 36.4 kg
Refrigerant Type R410A/R32
Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW Ceiling Floor Unit Ceiling Suspended or Floor Standing Versatile AC for Commercial 3.6-14.0kW
