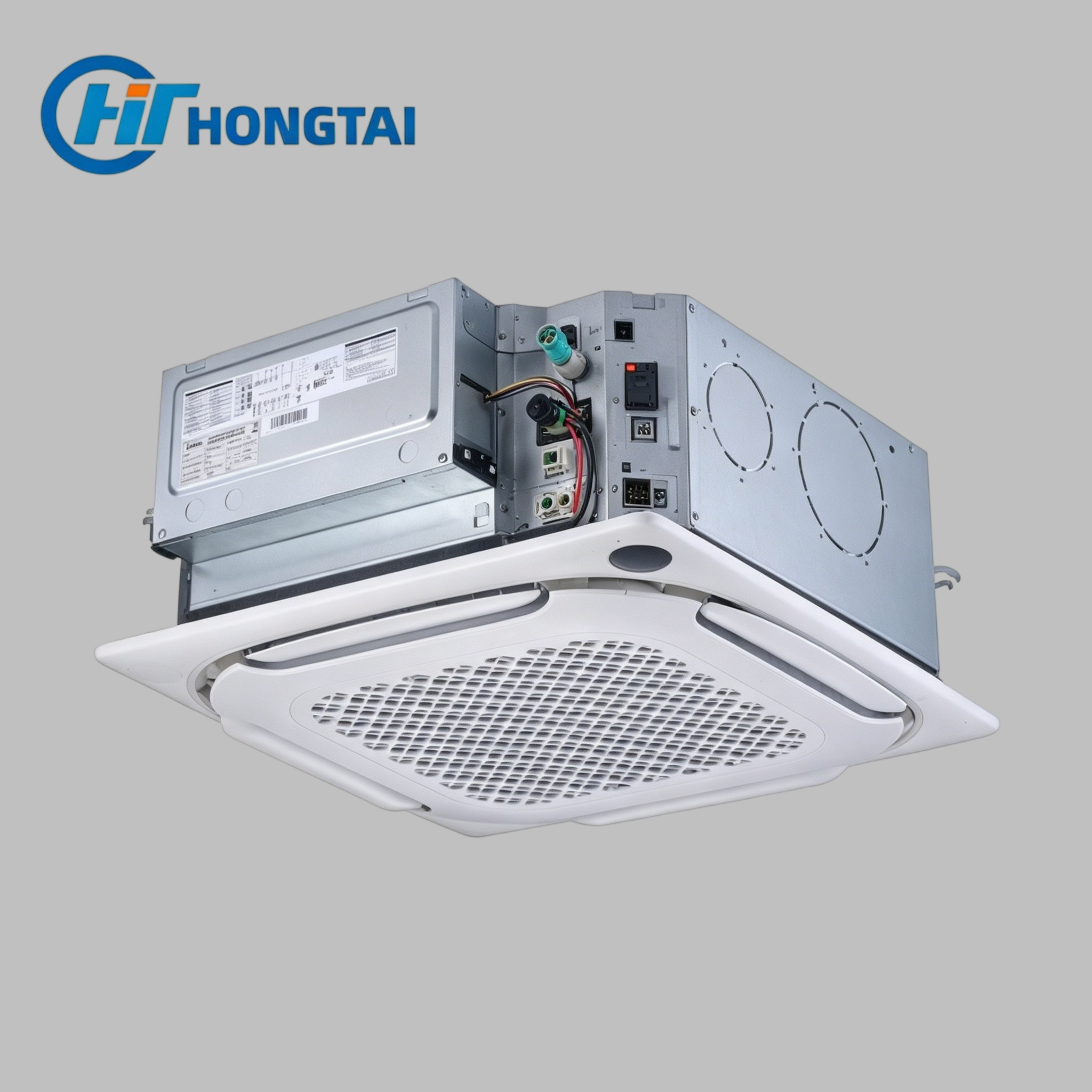

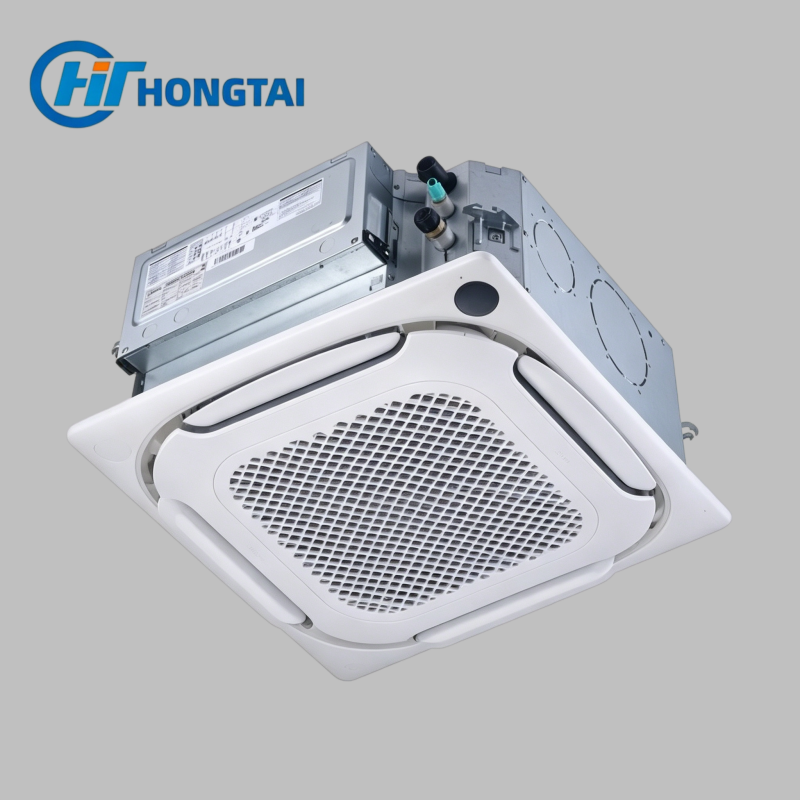

V8 Compact Four-Way Cassette Standard Ceiling Fit for Small Spaces 1.5-6.3kW
V8 Compact Four-Way Cassette Standard Ceiling Fit for Small Spaces 1.5-6.3kW
V8 Compact Four-Way Cassette Standard Ceiling Fit for Small Spaces 1.5-6.3kW
V8 Compact Four-Way Cassette Standard Ceiling Fit for Small Spaces 1.5-6.3kW
Specifications
Brand Name :
Hongtai，Midea
Certification :
CB, ISO
Place of Origin :
China
Product Name :
Two-Way Cassette Indoor Unit
Capacity Range :
1.5 - 6.3 kW (5.1 - 21.5 kBtu/h)
Power Supply :
1-phase, 220-240V, 50Hz
Cooling Capacity :
1.5 - 6.3 kW
Heating Capacity :
1.7 - 7.1 kW
Airflow Rate :
340 - 780 m³/h (7 speeds)
Sound Pressure Level :
22 - 38 dB(A)
Refrigerant :
R410A/R32
Net Dimensions (W×H×D) :
620×235×620 mm
Description
V8 Compact Four-Way Cassette Standard Ceiling Fit for Small Spaces 1.5-6.3kW
Standard Size, Extraordinary Performance: The Perfect Fit for Modern Ceiling Systems
The Compact Four-Way Cassette is engineered for seamless integration with standard ceiling grid systems. The 620×620mm form factor fits perfectly into typical ceiling tile spaces, making installation straightforward and eliminating the need for custom ceiling modifications. This standardization translates to faster installation, lower costs, and easier maintenance.
Despite its compact footprint, the Compact Four-Way Cassette delivers powerful four-direction airflow that ensures even temperature distribution throughout the space. The 4-way louver with individual motor control allows customization of airflow patterns to match room layout and occupant preferences.
The combination of standard sizing and powerful performance makes this unit ideal for office retrofit projects, retail spaces, and any application where installation time and cost are critical considerations.
Key Features
  • 620×620mm Standard Size – Perfect ceiling integration with typical grid systems, eliminating custom modifications and reducing installation costs
  • Four-Direction Airflow – Ensures even temperature distribution throughout the space, eliminating hot and cold spots
  • Individual Louver Control – Each of the four louvers features individual motor control for precise airflow direction customization
  • Quick Installation Design – Standard sizing and integrated design reduce installation time and complexity with pre-assembled components
Applications
Office Spaces – Standard ceiling integration for modern workplaces
Retail Stores – Quick installation for fast-paced retail environments
Hotel Rooms – Consistent appearance with reliable performance
Medical Offices – Clean installation with quiet operation
Retrofit Projects – Easy replacement of aging systems
Suspended Ceiling Spaces – Perfect fit for standard grid systems
Certifications & Standards
• ISO 9001:2015 – Quality Management System
• ISO 14001:2015 – Environmental Management System
• CE Certification – European market compliance
• ERP Directive – Energy efficiency requirements
• RoHS Compliant – Hazardous substances restriction
• IEC 60335 – Safety standards compliance
Technical Specifications
Parameter Specification
Capacity Range 1.5 - 6.3 kW (5.1 - 21.5 kBtu/h)
Power Supply 1-phase, 220-240V, 50Hz
Cooling Capacity 1.5 - 6.3 kW
Heating Capacity 1.7 - 7.1 kW
Airflow Rate 340 - 780 m³/h (7 speeds)
Sound Pressure Level 24 - 40 dB(A)
Unit Dimensions 620×620 mm (standard ceiling grid)
Net Dimensions (W × H × D) 620×235×620 mm
Refrigerant Type R410A/R32
