Specifications
Certification :
CB, ISO
Heating Capacity :
9-20kW
Compressor Type :
Semi-Hermetic Screw + VFD
Place of Origin :
China
Refrigerant :
R134a；R513A (Low GWP)
Cooling Capacity :
397-1,449 kW；316-1,335 kW
Evaporator Type :
Flooded
Product Name :
Air Cooled Screw Chiller
Operating Range :
-25 to 52°C
Brand Name :
OEM; MIDEA
Description

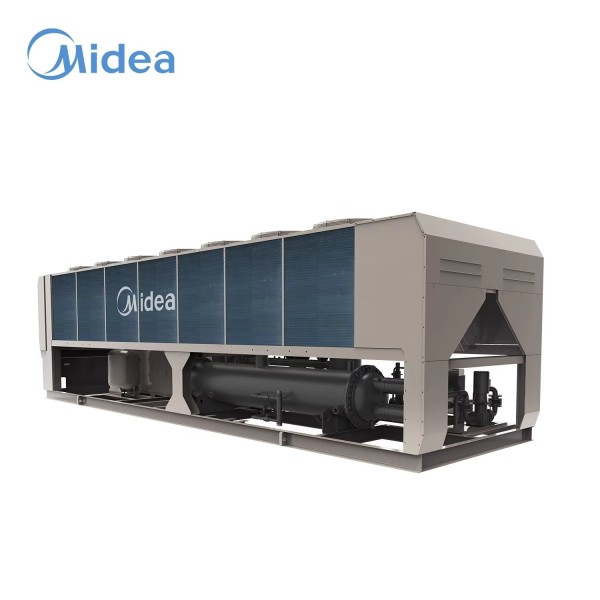

AirBoost Series: High-Performance Air-Cooled Screw Chillers
Midea's advanced air-cooled screw chiller technology engineered for demanding operating conditions, available with R134a or low-GWP R513A refrigerant options.
Product Overview
The AirBoost series features semi-hermetic screw compressors with variable frequency drives to deliver consistent cooling capacity across wide temperature ranges, including T3 high-temperature environments.
Series Specifications
R134a T3 Series
  • Cooling capacity: 397 to 1,449 kW
  • Single compressor models: 115 to 275 RT
  • Dual compressor models: 330 to 410 RT
  • R134a refrigerant
  • Semi-hermetic screw compressor with VFD
  • Flooded evaporator design
  • Operating temperature range: -25 to 52°C
  • COP of 3.4 or higher under AHRI conditions
  • IPLV of 5.0 or higher
  • Direct and indirect free cooling options available
  • Modular configuration up to 8 units
  • 60 Hz operation
R513A T3 Series (Low GWP)
  • Cooling capacity: 316 to 1,335 kW
  • R513A refrigerant with reduced global warming potential
  • Semi-hermetic screw compressor with VFD
  • Flooded evaporator design
  • Operating temperature range: -25 to 52°C
  • COP of 3.4 or higher under AHRI conditions
  • IPLV of 5.0 or higher
  • Direct and indirect free cooling options available
  • Modular configuration up to 8 units
  • 60 Hz operation
Technical Comparison
Parameter R134a T3 Series R513A T3 Series
Cooling Capacity 397-1,449 kW 316-1,335 kW
Single Compressor 115-275 RT --
Dual Compressor 330-410 RT --
Refrigerant R134a R513A (Low GWP)
Compressor Type Semi-Hermetic Screw + VFD Semi-Hermetic Screw + VFD
Evaporator Type Flooded Flooded
Operating Range -25 to 52°C -25 to 52°C
COP (AHRI Conditions) 3.4+ 3.4+
IPLV 5.0+ 5.0+
Free Cooling Options Direct / Indirect Direct / Indirect
Modular Configuration Up to 8 units Up to 8 units
Frequency 60 Hz 60 Hz
Application Scenarios
  • Industrial process cooling in high-ambient regions
  • Telecommunication base station cooling
  • Large-scale data center facilities
  • Manufacturing plants with high cooling demand
  • District cooling plants
  • Free cooling applications in temperate climates
Certifications & Standards
  • AHRI 551/591 - Performance rating for reciprocating and screw liquid chilling packages
  • T1/T3/FC AHRI - High temperature and free cooling operating condition ratings
  • Eurovent - European certification for equipment performance verification
