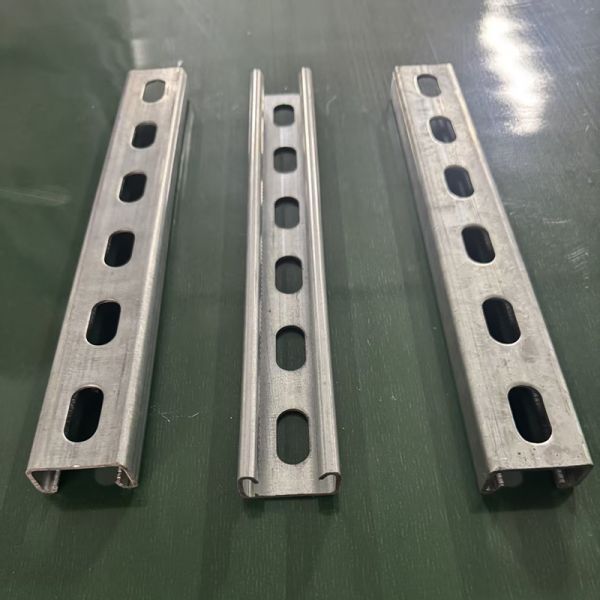

41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System
41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System
41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System
41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System
Specifications
Payment Terms :
T/T, PayPal, Xtransfer
Length :
1m-12m or Customer's Requirments
Service :
Custom Metal Fabrication Service
Suitable for :
Lightweight supports, photovoltaic supports, keels, roof trusses, equipment frames, guardrails, bridge racks, etc
Product Name :
Strut Channel / C Channel / Unistrut Channel
Thickness :
1.5mm / 2.0mm / 2.5mm (Customizable)
Model Number :
41X21 Metal Strut Channel
Application :
Building operations
Surface treatment :
Galvanized Coated/Powder Coating
Technique :
Cold Bending/Roll Forming
Packaging Details :
Wooden frame or cardboard box packaging, customizable
Feature :
Corrosion Resistant, High Strength, Easy Installation, Modular Design
Material :
Metal
Price :
$ 0.9-2.4
MOQ :
1000 pieces
Certification :
ISO9001
Usage :
Construction, Electromechanical, Machinery
Processing performance :
Cutting, Decoiling, Punching, Welding, Bending
Delivery Time :
Delivery within 15-30 days
Alloy Or Not :
Non-Alloy
Supply Ability :
50000 pieces per day
Place of Origin :
Hebei, China
Color :
Silver Zinc / Stainless Steel Natural Color
Description

41X21 Hot Dip Galvanized Strut Channel C Channel for MEP Pipe Hanger System

Product Description:

This C-channel is the core profile for building mechanical and electrical support systems. Made of high-quality hot-rolled steel strip through cold forming, it features a uniform and dense hot-dip galvanized coating (over 85μm thick) for excellent rust and corrosion resistance. It performs stably in humid, acidic, or alkaline environments, with a much longer service life than ordinary steel.
The one-piece cold-formed process ensures high section strength and strong bending resistance, effectively dispersing the load of pipes, cable trays, and equipment to prevent deformation or fracture caused by single-point stress. Standard elongated holes on the surface allow quick installation without on-site drilling, compatible with spring nuts, bases, and connectors to greatly improve construction efficiency.

‌

Attribute Details
Product Name Strut Channel / C Channel / Unistrut Channel
Material Q235 Carbon Steel / 304/316 Stainless Steel
Surface Treatment Hot-dip Galvanized (HDG) / Electro Galvanized / Pre-Galvanized
Color Silver Zinc / Stainless Steel Natural Color
Standard Sizes 41x21mm / 41x41mm / 41x62mm (Custom sizes available)
Thickness 1.5mm / 2.0mm / 2.5mm (Customizable)
Length 1m / 2m / 3m / 6m (Custom cut lengths available)
Hole Type Solid / Slotted / Custom Drilled Holes
Load Capacity Light Duty / Medium Duty / Heavy Duty (Customizable)
Feature Corrosion Resistant, High Strength, Easy Installation, Modular Design
Application Pipe Hanger, HVAC, Fire Protection, Electrical Tray, MEP Support System, Steel Structure
Certification ISO9001, RoHS Compliant
Customization OEM & ODM Available (Custom size, thickness, hole pattern, finish)
Packing Bundled + Pallet / As per customer's requirement

Features:

Available in a full range of sizes for different load levels, it is widely used in water supply, HVAC, fire protection, and electrical installations, serving as an essential core profile for both new construction and retrofitting projects.

41X21 Hot Dip Galvanized C Strut Channel For MEP Pipe Hanger System

FAQ:

Are you a factory or a trading company?
We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.
What's your delivery time?
Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Generally within 30 days after receiving the payment. And partial shipment is allowed for big order.
Can you offer design service?
Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.
What's the payment term?
30% deposit and 70% balance before shipment.
How to control the quality of your product?
a) Quality of the design: think about possible problems in advance and provide a high quality design solution. b) Quality of the raw material: choose the qualified raw material c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
