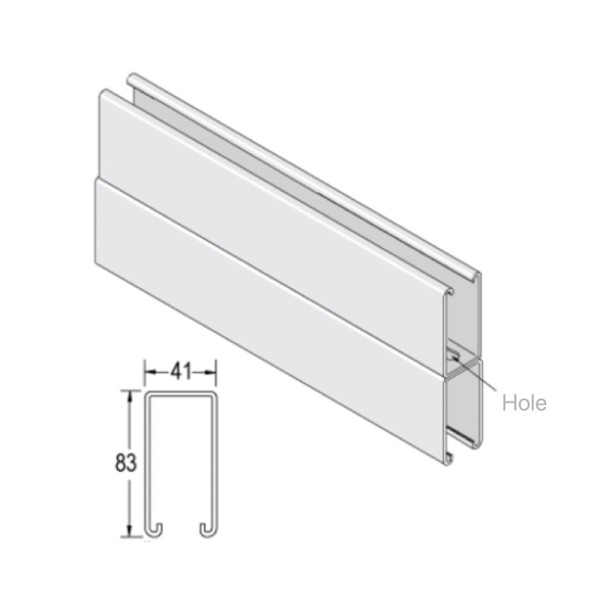

High Strength Steel Metal Slotted Channel Unistrut 41×61mm 41×81mm For Construction & Pipe Installation
High Strength Steel Metal Slotted Channel Unistrut 41×61mm 41×81mm For Construction & Pipe Installation
High Strength Steel Metal Slotted Channel Unistrut 41×61mm 41×81mm For Construction & Pipe Installation
High Strength Steel Metal Slotted Channel Unistrut 41×61mm 41×81mm For Construction & Pipe Installation
Specifications
Packaging Details :
50 or 100PCS are packed in steel pallet , and fasten with steel strips
Shape :
U Shape / C Shape
Hole Style :
Slotted hole, round hole, solid channel, back hole
Brand Name :
Jiucan Metal
Price :
Discuss
Material :
Q235 Carbon Steel; SS304 / SS316 Stainless Steel (optional)
Place of Origin :
Hebei,China
Thickness :
1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm
Standard Sizes :
41×21mm, 41×41mm, 41×61mm, 41×81mm
Length :
3m, 6m, or customized length
Product name :
Metal Strut Channel / Slotted Strut Channel / C Channel / Unistrut Channel
MOQ :
500 pcs
Supply Ability :
50 to 80+ tons/day
Delivery Time :
15-20 work days
Type :
Light duty, Medium duty, Heavy duty
Payment Terms :
T/T, T/T
Certification :
ISO9001
Surface Treatment :
Hot Dipped Galvanized (HDG), Pre-galvanized, Electro-galvanized, Powder Coated
Description

Introduction

This heavy-duty metal strut channel features an optimized U/C-shaped integrated forming structure, which disperses bearing pressure evenly and greatly improves overall load capacity. Through professional structural upgrading and mechanical testing, the product achieves excellent compression and impact resistance, supporting heavy pipes, cable trays and electromechanical equipment stably without bending or deformation. Equipped with standardized seismic bracing matching design, it can effectively resist vibration and structural displacement caused by equipment operation and environmental changes, improving the safety factor of the whole engineering system. It is available in light, medium and heavy-duty models to meet load requirements of different scenarios from civil construction to large industrial plants. All products pass strict pressure resistance tests, providing long-term safe structural support and solving the safety hidden danger of insufficient bearing capacity of ordinary support channels for customers.

Features

Adopting carbon steel material, the product boasts outstanding flexural and compressive strength and good anti-deformation property. We offer bending, decoiling, punching, cutting and welding services.Various specifications are in stock, and custom fabrication based on drawings

Specification

Item
Detailed Parameters
Product Name
Metal Strut Channel, Slotted Strut Channel, Unistrut Channel, C/U Channel
Material
Q235 Carbon Steel, Stainless Steel 304, Stainless Steel 316
Surface Treatment
Hot Dipped Galvanized(HDG), Pre-galvanized, Electro-galvanized, Powder Coated
Standard Size
41×21mm, 41×41mm, 41×61mm, 41×81mm (Customized)
Wall Thickness
1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm
Length
3m, 6m, Custom Cutting Length
Hole Type
Slotted Hole, Round Hole, Back Hole, Solid Channel
Structure Type
U-type / C-type / Back-to-Back Type
Load Grade
Light Duty, Medium Duty, Heavy Duty
Tensile Strength
375-500MPa
Yield Strength
≥235MPa
Feature Performance
High load-bearing, seismic resistance, corrosion resistance, easy installation, no deformation
Application Scope
Electrical support, pipe support, HVAC system, solar mounting, seismic bracing, construction, infrastructure, data center
Certification
ISO9001, CE, SGS, RoHS
Production Standard
ASTM, BS, DIN, UL, Custom Standard
MOQ
100 Meters / 1 Ton
Supply Capacity
500-1000 Tons/Month
Package
Standard Export Bundle / Pallet Packing
Delivery Time
7-15 Working Days After Deposit
Custom Service
Support OEM, ODM, Custom Size, Hole Type, Surface Color

High Strength Steel Metal Slotted Channel Unistrut 41×61mm 41×81mm For Construction & Pipe Installation

FAQ

Q: Do you provide free sample?

A: Yes, but please note the transportation charge will be paid on your side.

Q: What kind of materail you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, CABLE TRAY.

Q: What kind of standard you are following?
A: We are producing following by GB/T19001-2008, ISO9001:2008, SGS, MA...

Q: Could you change the size for the customer?
A: Yes, depends on your special demands.

Q: How many days delivery the order?
A: Normally 20 days after deposit or L/C, depends your request.
