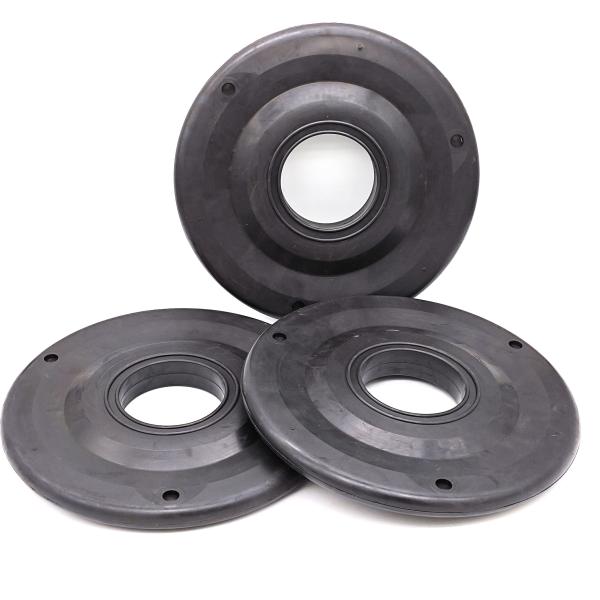

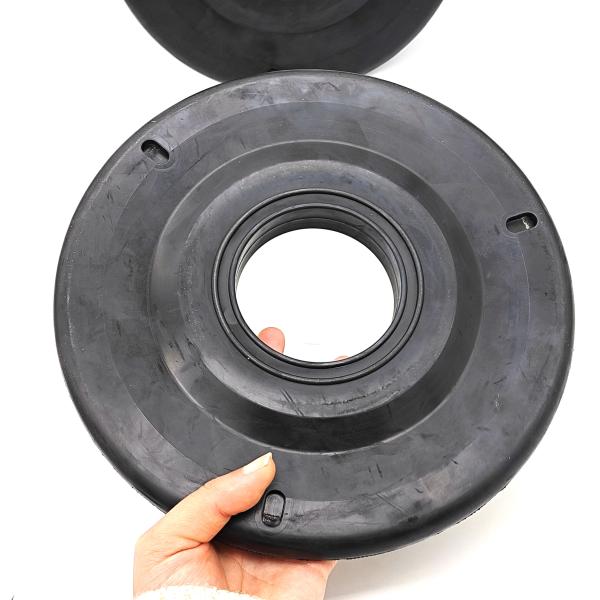

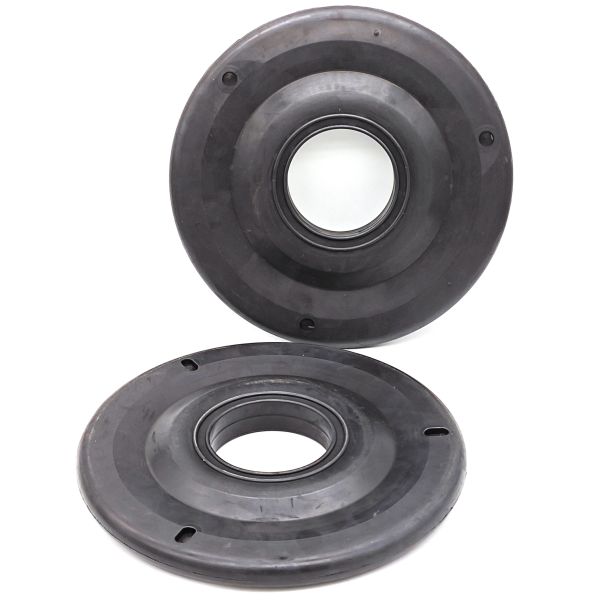

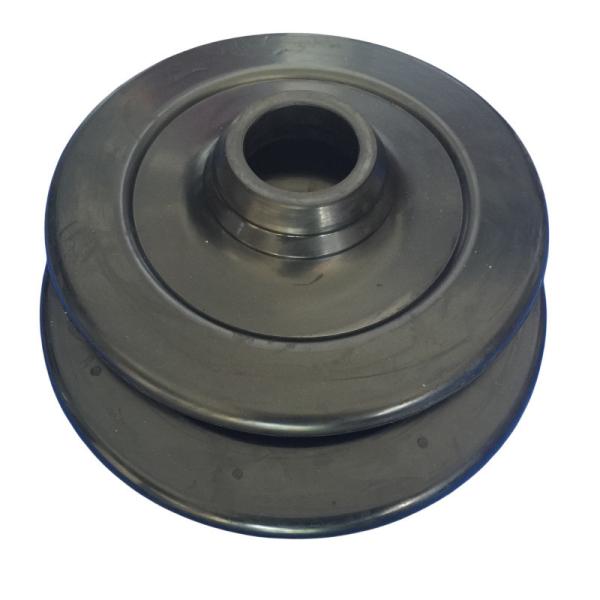

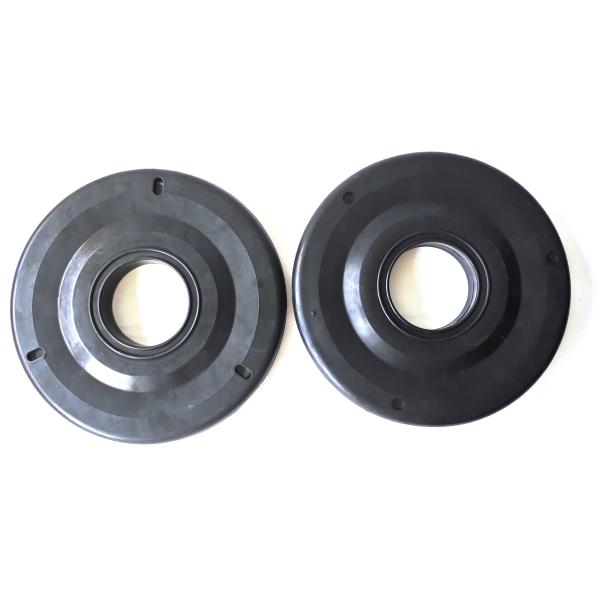

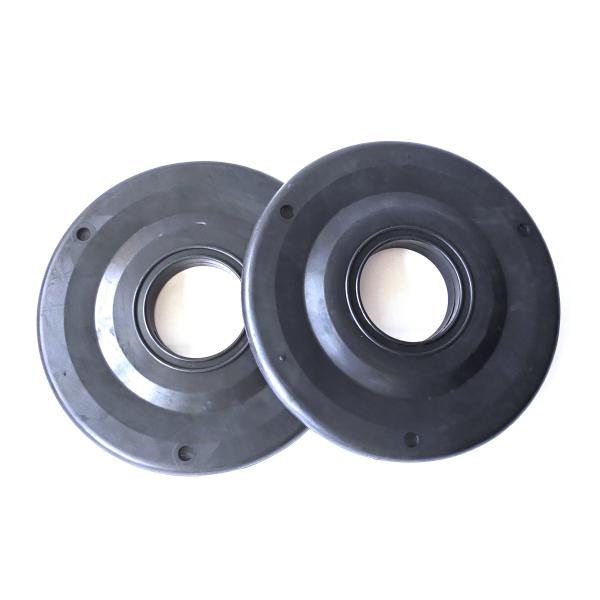

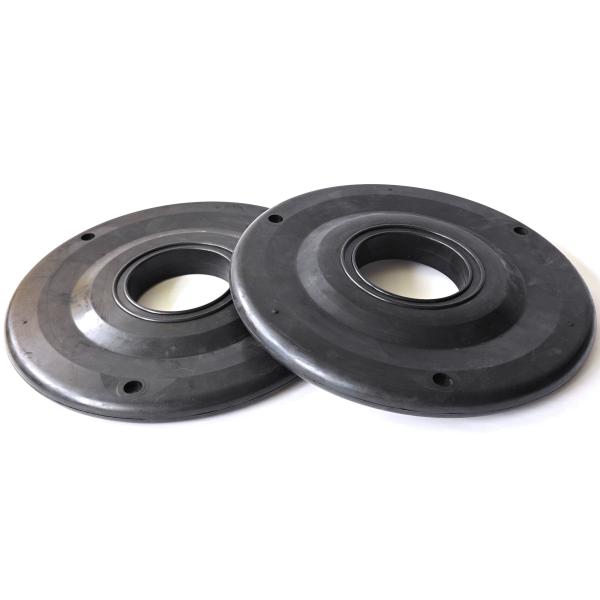

NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety
Specifications
Brand Name :
SHQN
Model Number :
Flat pipe wipers
Certification :
ISO9001
Place of Origin :
Shanghai, China
MOQ :
1000pcs
Price :
$0.5-2/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50000pcs per week
Delivery Time :
10-20days
Packaging Details :
carton packing
Material :
NBR
MOQ :
1000pcs
Types :
Rubber
Custom service :
Available
Application :
Oil and gas
Brand :
SHQN
Sample :
Available
Size :
9 inch
Color :
Black
Key word :
Flat pipe wipers
Description

NBR Industrial Rubber Pipe Wiper | High-Performance Drilling Safety Stripper

In oilfield operations, equipment efficiency directly affects profitability. Our NBR Industrial Rubber Pipe Wiper is designed for superior sealing and cleaning of drill strings.

We provide custom ID, OD and thickness to meet your specific pipeline requirements.

Made of high-grade Nitrile compounds, it keeps drilling mud in the well and off the rig floor, improving operational efficiency and on-site safety.

NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety NBR Industrial Rubber Pipe Wiper for Enhanced Drilling Performance and Safety

Why NBR? The Material of Choice for Oilfield Performance

  1. Not all rubber is created equal. For industrial drilling, Nitrile (NBR) is the gold standard due to its specific chemical properties:
  2. Superior Oil Resistance: NBR is highly resistant to hydrocarbons, making it ideal for use with Oil-Based Muds (OBM) and synthetic drilling fluids. It will not swell or degrade like natural rubber or EPDM when exposed to oil.
  3. High Abrasion Resistance:Our NBR formulation is built to withstand the constant friction of the drill pipe, extending the service life of the wiper even during deep-hole tripping.
  4. Excellent Tensile Strength: Provides the "snap-back" elasticity required to maintain a tight seal around the pipe joints and protectors.

Technical Specifications

Outer Diameter

9 Inch (approx. 228.6 mm)

Inner Diameter

68 mm

Material

High-Grade Nitrile Rubber (NBR)

Shape

Flat Type

Color

Standard Black / Red (Customizable)

Application

Oil & Gas Drilling, Water Well Drilling, Industrial Piping

Hardness

70-80 Shore A

Key Benefits for Drilling Operations

Enhanced Drilling Performance

A clean drill string means faster tripping times and less mess to manage. The precision-engineered lip of our NBR wiper removes the thickest mud cakes, preventing fluid loss and keeping your tools ready for inspection or storage immediately upon removal.

Maximum Rig Floor Safety

Safety is a priority. By effectively stripping fluids from the pipe, our wipers prevent slippery conditions on the rotary table and rig floor. This drastically reduces the risk of onsite accidents and environmental spills.

Equipment Longevity

By keeping abrasive drilling solids and corrosive fluids away from the master bushing and sensitive rig components, our NBR wipers reduce the overall maintenance frequency of your surface equipment.

FAQ

Q1: Why should I choose NBR over Natural Rubber for my pipe wipers?
A: While Natural Rubber is excellent for water-based fluids, it fails quickly when in contact with oil. NBR (Nitrile) is essential if you are using oil-based muds (OBM) or if the well contains hydrocarbons, as it prevents the wiper from swelling and losing its sealing shape.

Q2: Can these NBR wipers withstand high-temperature drilling?
A: Our standard NBR wipers are rated up to 120°C (248°F). For HPHT (High Pressure High Temperature) wells, please contact us for our HNBR (Hydrogenated Nitrile) options, which can handle even higher thermal loads and H2S exposure.
