Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries

Descrition

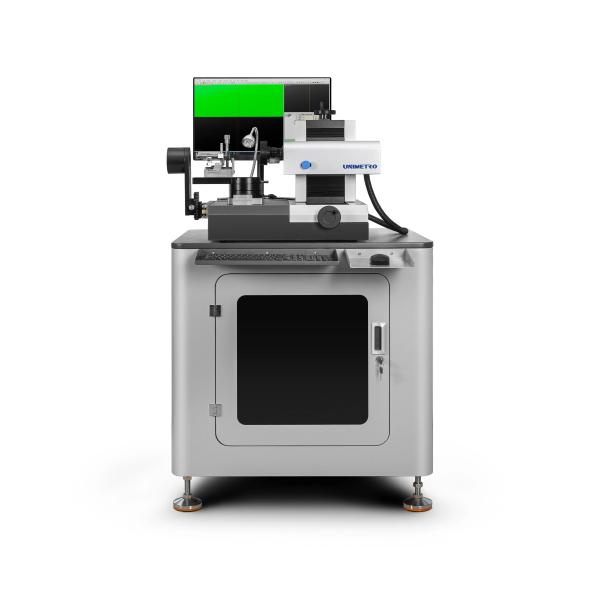

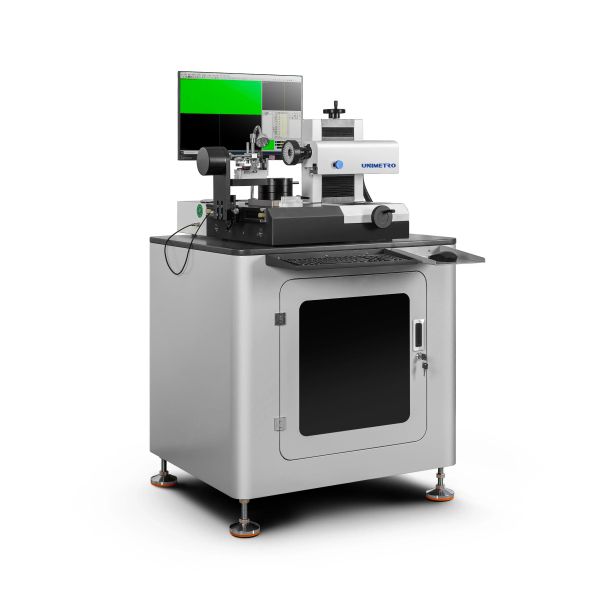

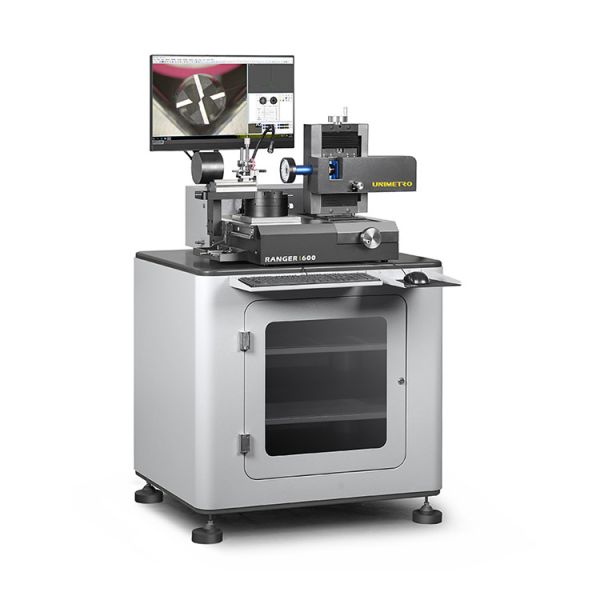

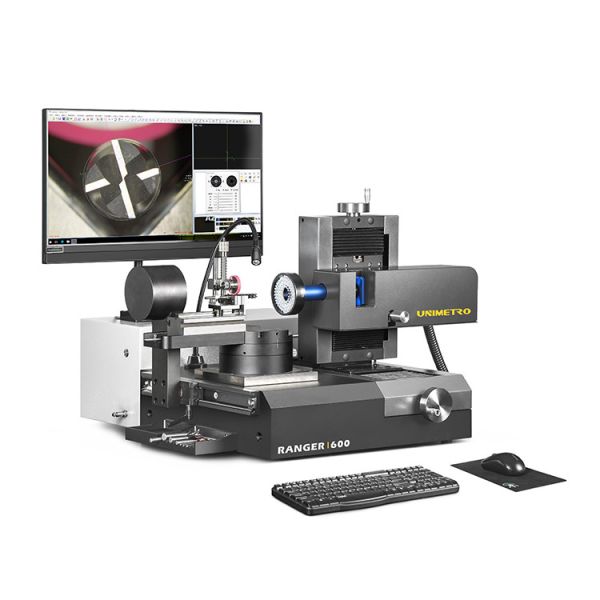

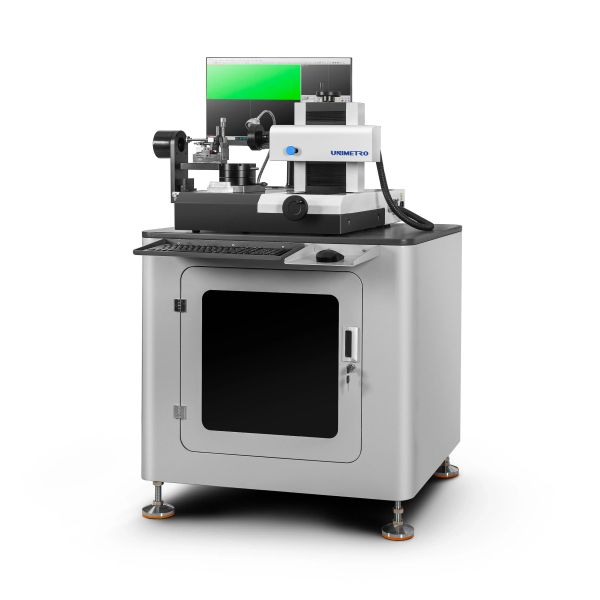

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under a Flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.

Parameters

Accessories

Free angle auxiliary light Contour light module

Base table Tools holder

Features

1. Advanced Design
﹥Ergonomic design and solid construction.
﹥HD image capturing and display combination, also microscope magnification level is optional.
﹥Stable and accurate V block for easy tools holding and alignment.
﹥Mechanical fixed measuring angles of 0 degrees and 90 degrees are available on the rotary stage.
﹥High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
﹥Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
﹥SMARTOOL measuring software offers specific measuring function for cutting tools.
﹥Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.

2. Multiple Angles Measuring
For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc.
