Specifications
Delivery Time :
30 work days
Z axis range :
60mm
Input file format :
DXF file
Model Number :
Ranger 600
Brand Name :
UNIMETRO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$22,000
Lens system :
0.7X ~ 4.5X Zoom lens
Linear scale resolution :
0.0001mm
Working distance :
90mm
Supply Ability :
10 per month
Measurement range :
80*60*60mm
Field of view :
27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Packaging Details :
Wooden Case
Payment Terms :
D/A,D/P,T/T,Western Union
Y axis travel :
60mm
Output file format :
EXCEL, DXF
Maximum tool diameter :
50mm
X axis travel :
80mm
Maximum tool length :
300mm
Camera resolution :
2M pixel HD camera/5M pixel HD camera (Optional)
Magnification range :
12.6X~79.2X/25.2X~158.4X (Optional)
Measuring accuracy :
X~Y,(2.5+L/100)µm, L is the measured length
Description
Milling Tool Inspection System Tool Video Measuring Machine
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Product Application

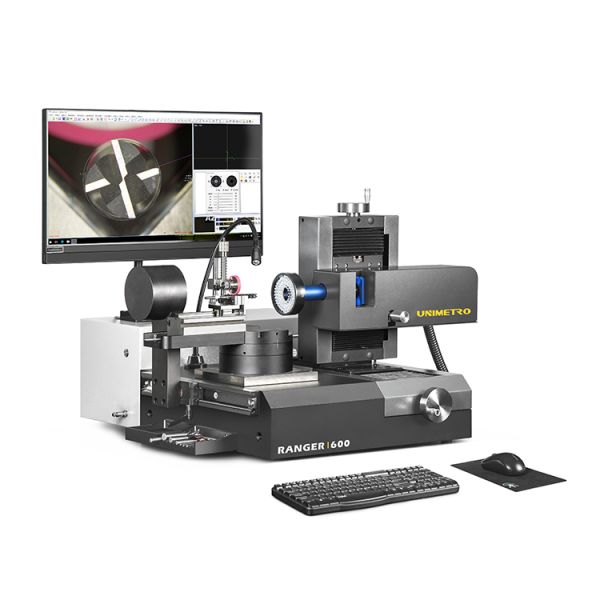

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Its compact design and great stability make it suitable for use in metrology rooms, receiving inspection, or directly in production. Configured with SMARTOOL universal measuring software, the RANGER600 is ideal for all types of metal cutting tools, from fast checking of single criteria to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process.
Advanced Design Features
  • Ergonomic design and solid construction
  • HD image capturing and display combination with optional microscope magnification

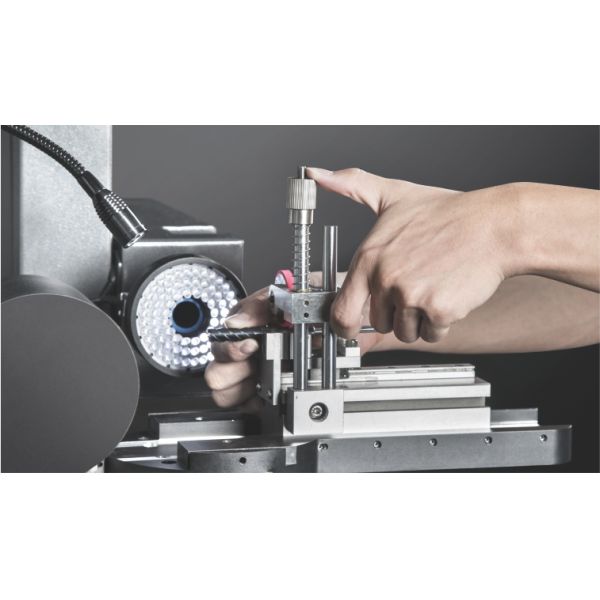

  • Stable and accurate V block for easy tool holding and alignment
  • Mechanical fixed measuring angles of 0° and 90° on the rotary stage
  • High accuracy encoder embedded in the rotary table for precise angle location
  • Programmable LED ring light with contour lighting and free angle auxiliary light
  • SMARTOOL measuring software with specific functions for cutting tools
  • Automatic edge detection, fast angle measurement with reticle, and CAD element comparison
  • Measuring results output to EXCEL or CAD files
  • ALL-IN-ONE PC system for enhanced stability
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

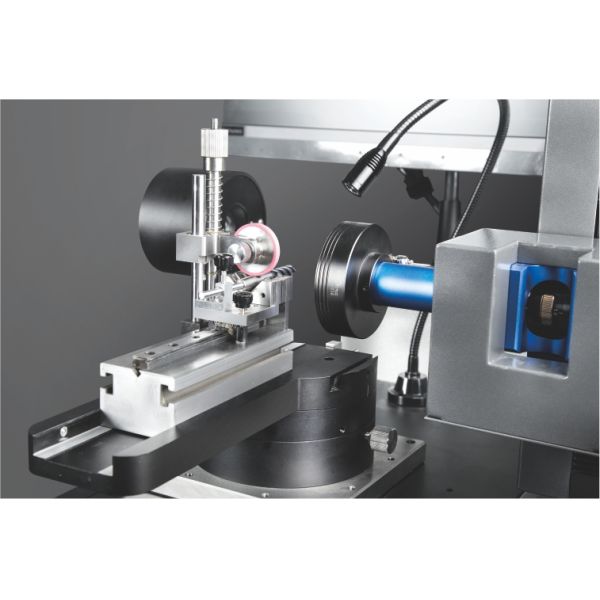

Multiple Angle Measurement Capabilities

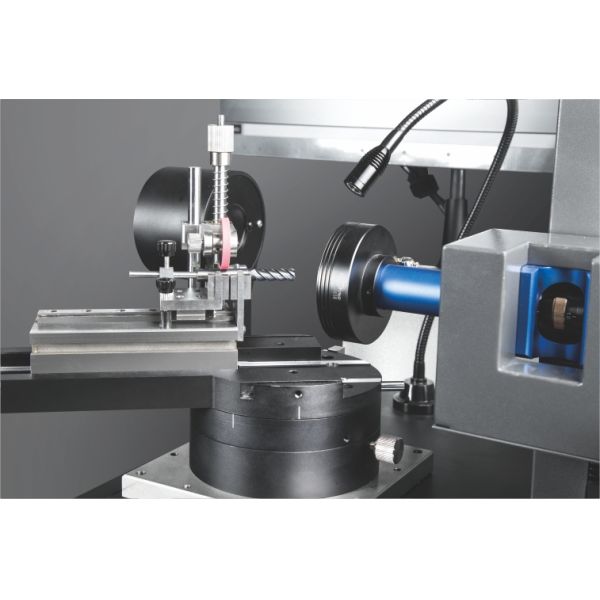

The rotary table offers two mechanical fixed angles (0° and 90°) for precise tool location during measurement. The 0° position enables measurement of Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is suitable for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle. Additional angles can be achieved using the accurate encoder embedded in the rotary table.
0 degree measurement
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
45 degrees measurement
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

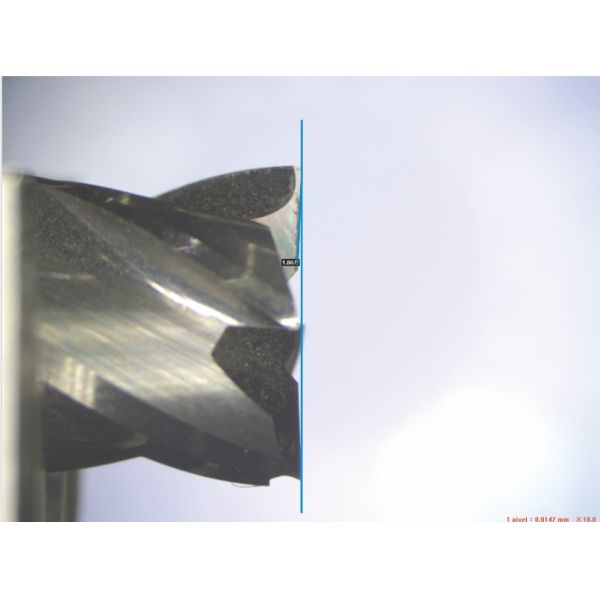

90 degrees measurement
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
SMARTOOL Cutting Tools Measuring Software
Developed based on high-accuracy optical and digital measuring technology, SMARTOOL is intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in grinding business.
Key Software Features
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Easy Operation
High resolution image display and graphical operation interface with all function keys and control panel displayed on the software window.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Dynamic Real-Time Curve View
Real-time edge detecting curve view makes edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

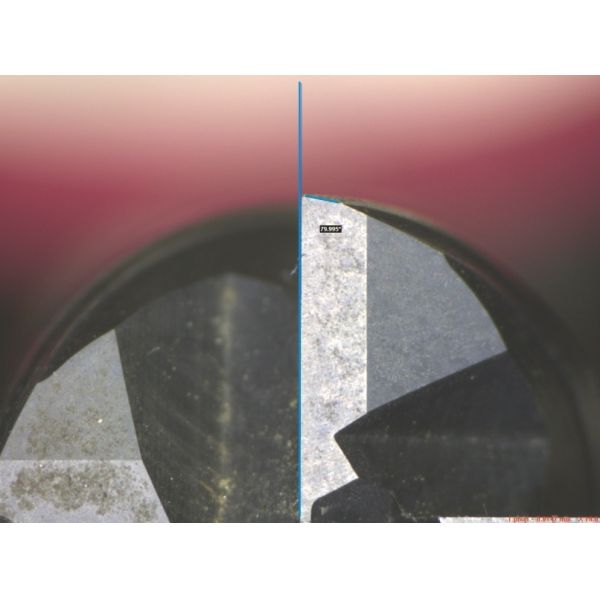

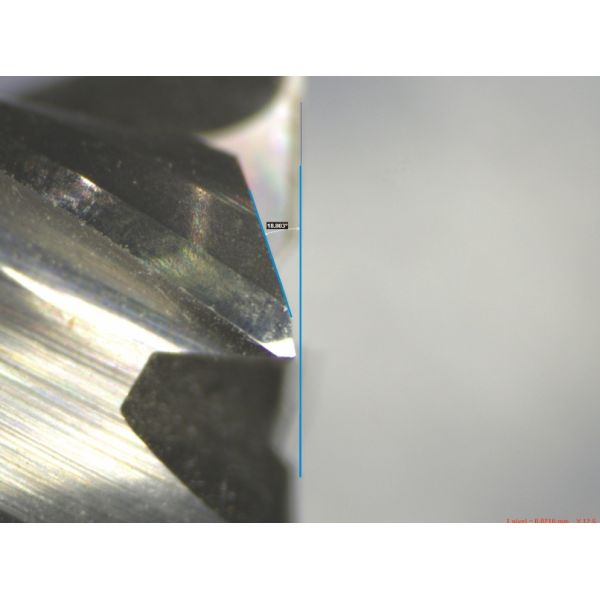

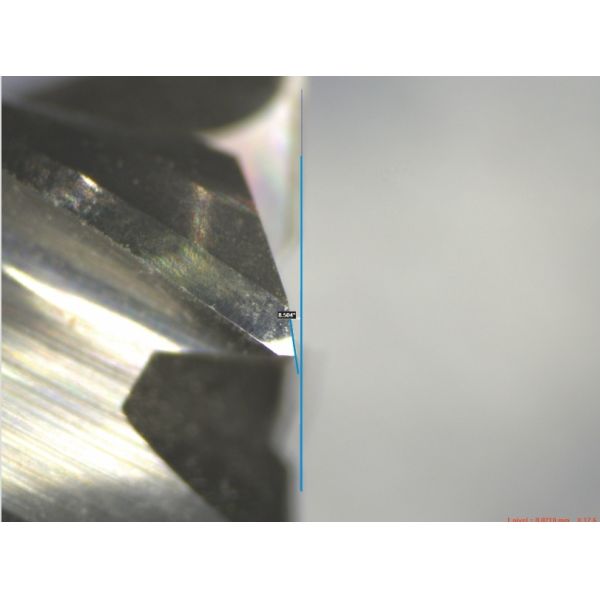

Fast Angle Measuring with Reticle
The freely rotatable reticle in the image area displays angles, enabling fast angle measurement through edge comparison.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
CAD Comparison
Users can input CAD drawings as reference and compare the real image to evaluate cutting tool geometries.
Measuring Capabilities
Helix Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

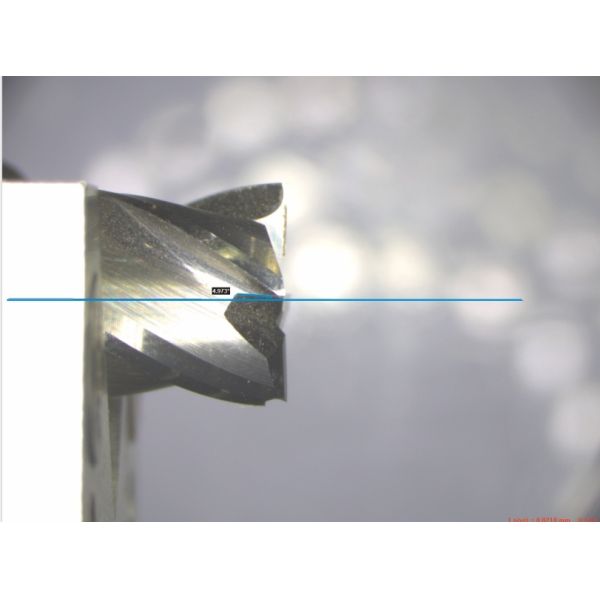

Axial Front Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
First Rear Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Second Rear Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Tilting Edge Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

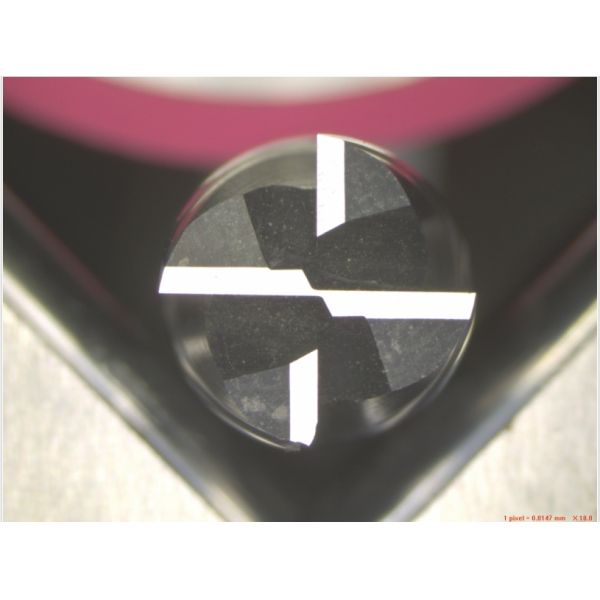

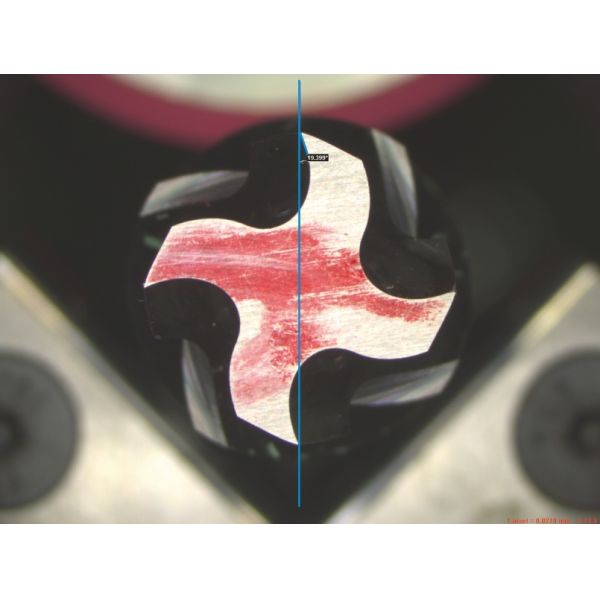

Tool End
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement

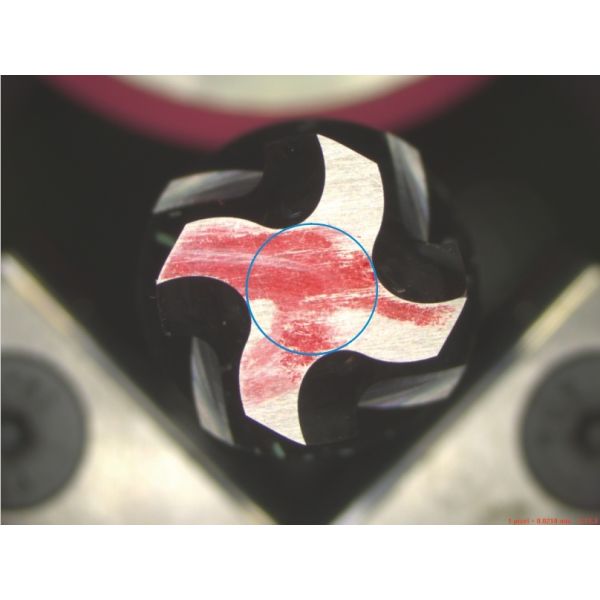

Tool End - Center Shaft
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Tool End - Front Angle
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Technical Parameters
Parameter Value
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Field of view 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format DXF files
Output format EXCEL,DXF
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Additional Features
Free Angle Auxiliary Light
A dimmable additional light on a flexible arm provides local image enhancement.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Tools Holder
A multiple section tools holder is embedded at the side of the machine for organized tool storage.
Contour Light Module
The parallel light path contour LED light module is movable along the X axis, providing sharp edge views when measuring tool contours.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Base Table
Solid standing work station with practical storage space for materials and tools.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
About UNIMETRO
UNIMETRO is a professional manufacturer of metrology equipment with over 10 years of experience. We offer high-performance products at reasonable prices and welcome professional cooperators from global markets. UNIMETRO provides the best marketing and technical support to our partners.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
10 Years Experience
We focus on medium-high level metrology products, offering complete high-accuracy measuring solutions. Our production line includes vision measurement machines, coordinate measurement machines, profile projectors, and core components for optical metrology.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Customer Service
Our specialist team offers flexible measuring solutions. Most products are independently developed with stable, modular designs that minimize after-sales service, helping partners manage products with minimal labor and training costs.
TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement TUNIMETRO RANGER600 Precision Tool Inspection System for Accurate Measurement
Engineering Design
  • Latest Systems: Solidworks with FE analysis
  • Auto CAD/CAM; Pore
  • Industrial 3D print machines
  • Fast Prototype from your Ideas
  • Talented Engineering team Support with 24-hour feedback
