UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
UNIMETRO RANGER600 Tool Inspection System with Windows 10 OS 24 LCD Monitor and Linear Scale Resolution 0.0001mm Vision Measurement Machine
Specifications
Brand Name :
UNIMETRO
Place of Origin :
Guangdong, China
Model Number :
Ranger 600
MOQ :
1
Price :
$15,600-22,000
X axis travel :
80mm
Y axis travel :
60mm
Z axis range :
60mm
Max tool diameter :
50mm
Max tool length :
300mm
Working distance :
90mm
Lens type :
0.7-4.5X dented zoom lens
Camera resolution :
2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution :
0.0001mm
Magnification range :
12.6X~79.2X/25.2X~158.4X (Optional)
Field of view :
27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy :
X~Y,(2.5+L/100)µm, L is the measured length
PC system :
ALL-IN-ONE PC system, Windows 10 OS, 24" LCD monitor
Illumination type :
8 sections LED ring light, contour light, flexible auxiliary light
Input format :
DXF files
Output format :
EXCEL, DXF
Description

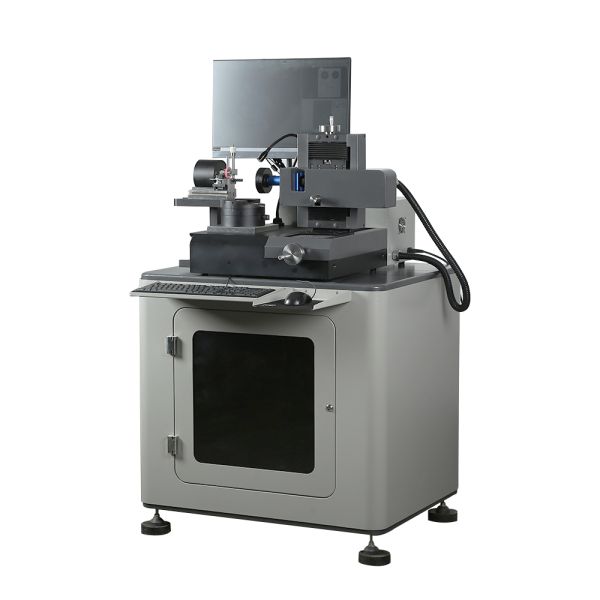

UNIMETRO RANGER600 Tool Inspection System
The universal measuring machine for drills, milling cutters and countersinks with flexible illuminating system. Compact design and great stability make it suitable for metrology rooms, receiving inspection, or direct production use.
Key Features
  • SMARTOOL universal measuring software for all metal cutting tools
  • PUT-MEASURE-ANALYSE measuring process
  • Compact and stable design for versatile placement
  • Complete control of special tool geometries
Technical Specifications
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor

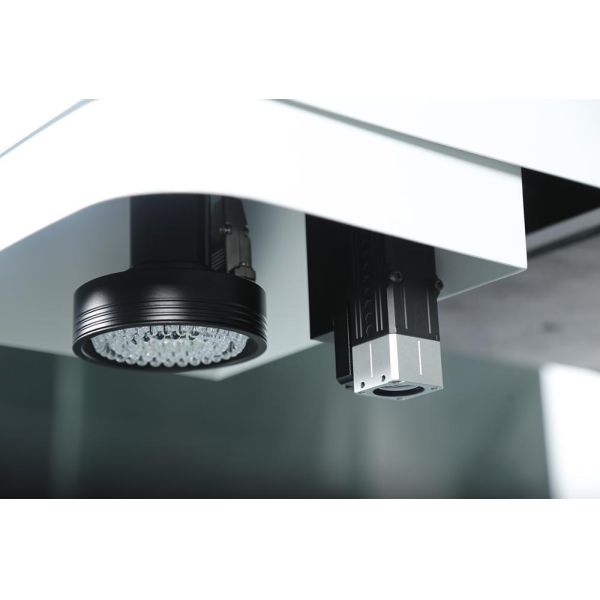

Illumination 8 sections LED ring light, contour light and flexible auxiliary light
Advanced Design Features
  • Ergonomic design and solid construction
  • HD image capturing with optional microscope magnification

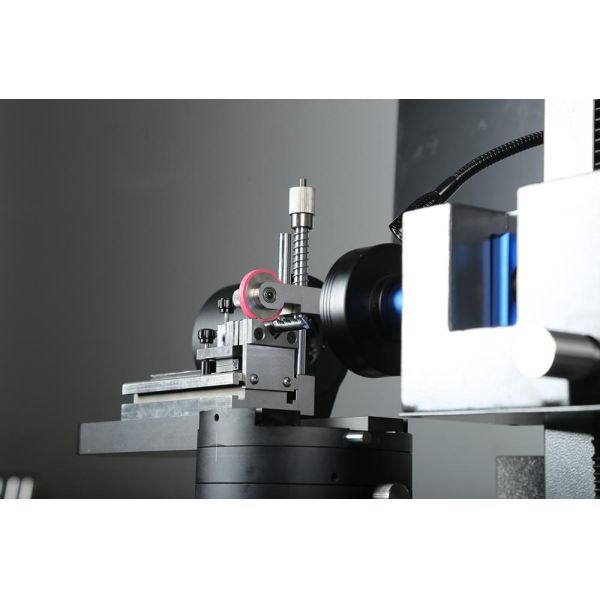

  • Stable V block for tool holding and alignment
  • Mechanical fixed measuring angles (0° and 90°)
  • High accuracy embedded encoder in rotary table
  • Programmable LED lighting system
  • SMARTOOL measuring software with automatic edge detection
  • Fast output to EXCEL or CAD files
Multiple Angle Measurement Capabilities
The rotary table offers mechanical fixed angles at 0° and 90° positions. The embedded encoder provides precise angle location for measurements including:
SMARTOOL Measuring Software
Developed based on high accuracy optical and digital measuring technology, offering numerous measuring and evaluation algorithms specifically for grinding business tools.
Software Features
  • Graphical operation interface with high resolution display
  • Dynamic real-time edge detection curve view
  • Fast angle measuring with reticle
  • CAD comparison function for tool geometry evaluation
Measurement Capabilities
About UNIMETRO
Professional manufacturer of metrology equipment with over 10 years experience, offering high performance products with reasonable pricing and comprehensive support.
Our Service
  • 24/7 online support via multiple channels
  • Fast delivery from spot stock
  • 1 year warranty with free software upgrades
  • Technical training for engineers
  • Custom testing solutions
  • On-site installation and instruction
