UNIMETRO RANGER600 Tool Inspection System for Milling
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Product Application
The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Thanks to its compact design and great stability, the RANGER600 can be employed in metrology rooms, receiving inspection, or directly in production.
Configured with SMARTOOL universal measuring software, this system is the ideal instrument for all types of metal cutting tools, from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE workflow with the RANGER600.
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Technical Specifications
Parameter Value
X axis travel 80mm
Y axis Travel 60mm
Z axis measuring range 60mm
Max tool Diameter 50mm
Max tool length 300mm
Working distance 90mm
Lens 0.7-4.5X dented zoom lens
Camera 2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution 0.0001mm
Magnification 12.6X~79.2X/25.2X~158.4X (Optional)
Field of view 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)
Measuring accuracy X~Y,(2.5+L/100)µm, L is the measured length
PC ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format DXF files
Output format EXCEL, DXF
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Advanced Design Features
  • Ergonomic design with solid construction
  • HD image capturing and display with optional microscope magnification
  • Stable V block for secure tool holding and alignment

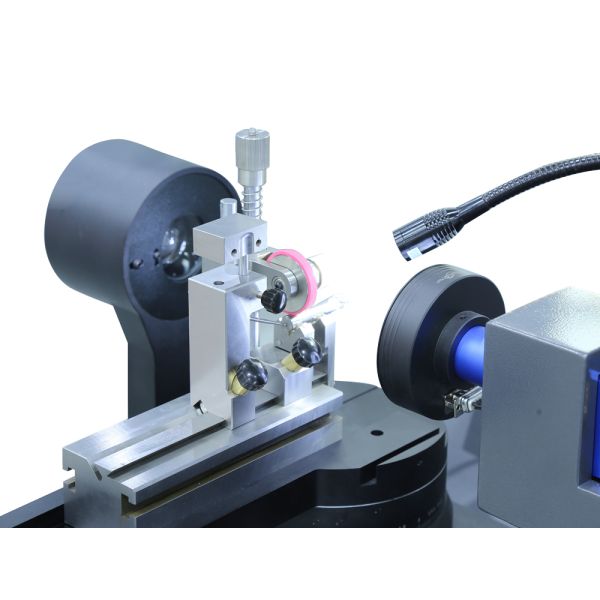

  • Mechanical fixed measuring angles of 0° and 90° on rotary stage
  • High accuracy encoder in rotary table for precise angle location
  • Programmable LED ring light with contour lighting and auxiliary light
  • SMARTOOL measuring software with specialized cutting tool functions
  • Automatic edge detection and fast angle measurement with reticle
  • CAD element comparison functions
  • Measurement results export to EXCEL or CAD files
  • ALL-IN-ONE PC system for enhanced stability

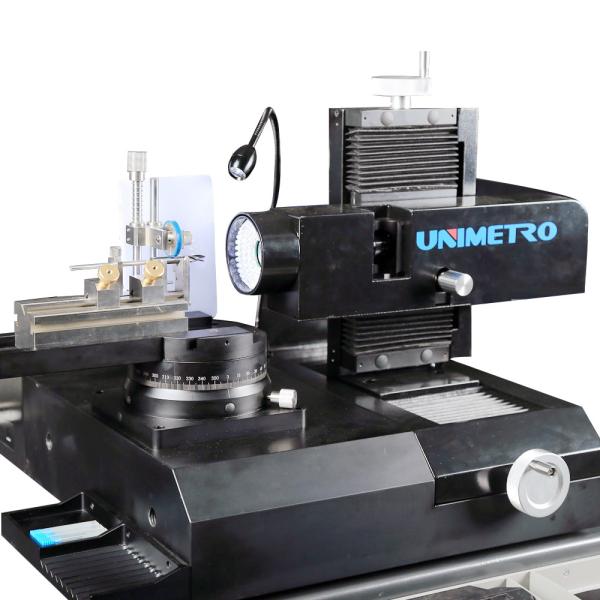

Multiple Angle Measurement Capabilities
The rotary table offers two mechanical fixed angles (0° and 90°) for precise tool positioning. The 0° position enables measurement of Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position facilitates measurement of Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle. Additional angles can be precisely located using the embedded encoder, with angle readings displayed in the software.
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Illumination System
The system includes a dimmable additional light on a flexible arm for localized image enhancement, and a parallel light path contour LED light module that moves along the X-axis to provide optimal imaging of tool contours.
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Workstation Features
The system features a solid standing workstation with practical storage space and an integrated multi-section tool holder for organized tool preparation.
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging

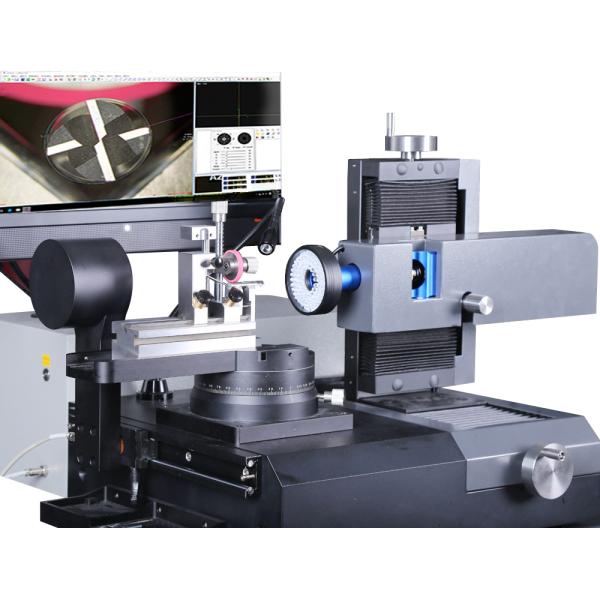

SMARTOOL Measuring Software
The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. It offers intuitive operation with numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.
Software Features
  • High-resolution image display with graphical interface
  • Dynamic real-time edge detection curve view
  • Fast angle measurement with rotatable reticle
  • CAD comparison function for tool geometry evaluation
  • All function keys and control panels displayed on software window
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
Measuring Capabilities
The system can measure various tool angles and features including Helix Angle, Axial Front Angle, Rear Angles, Tilting Edge Angle, Tool End geometries, and more.
Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging Compact Electronic Power Tool Inspection System for Cutting Tools with Wooden Case Packaging
About UNIMETRO
UNIMETRO is a professional metrology manufacturer with over 10 years of experience, offering high-performance products at reasonable prices. We provide complete high-accuracy measuring solutions and welcome professional partners from global markets.
