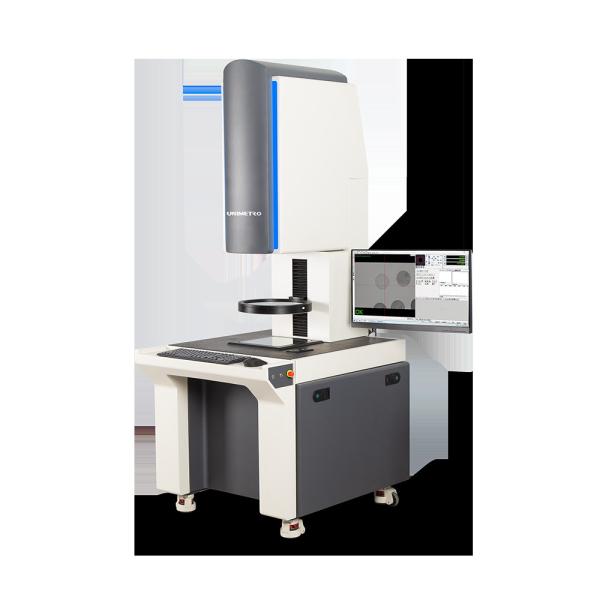

Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Specifications
Measuring Range :
600*500*200
Product Name :
Multiple Products Placed Randomly Image Measurement Machine
Brand Name :
UNIMETRO
Model Number :
GENESIS
Certification :
CE,ISO
Place of Origin :
China,Guangdong
MOQ :
1 set
Price :
Discussible
Payment Terms :
T/T,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30 work days
Packaging Details :
Wooden Case
Camera :
20M HD digital camera
Accuracy :
in 8um
Movement mode :
Automatic
Lens :
Double lens (big FOV+auto zoom lens)
Description

Multiple Products Placed Randomly Image Measurement Machine

Descrition

The Genesis series fast image mosaic measuring instrument combines the fast image stitching measurement technology with the traditional image measurement technology. It is equipped with a large field of vision telecentric lens and a fully automatic zoom telecentric lens. At the same time, it realizes the functions of fast measurement and large magnification fine measurement, and supports the measurement function of placing multiple pieces at will, so that users can obtain the use experience and efficiency of one click measuring instrument and traditional image measuring instrument on one machine.

Software Function

Genesis series, together with flashpro ultra-high speed detection vision software, provides subversive rapid measurement function. The software has made many groundbreaking changes in fast image processing, concurrent algorithm, precision compensation, system framework and so on.

● Complete image measurement software functions: including the measurement of various 2D element points, lines, circles, arcs, polylines and splines; Complete coordinate system, structure and tolerance calculation function;
● Import, export and offline programming functions of CAD;
● High precision sub-pixel interpolation and lens distortion compensation;
● Target recognition and image matching module;
● Support socket communication interface.

Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement

Parameters

Model number

Genesis 400

Genesis 500

Genesis 600
Measuring range X*Y*Z(mm)

400*300*200

500*400*200

600*500*200
Movement mode Automatic

Vision lens configuration Double telecentric large field optical lens + 0.7-4.5x automatic zoom lens

Image mosaic field size(mm)

80*60
Image sensor

Big FOV Lens:HIKVISION 200M digital camera
Auto zoom lens:HIKVISION 2M digital camera
Measuring accuracy

Image mosaic measurement:< 8um

Traditional image measurement:3+L/200 um

Linear scale resolution

0.0001mm

System measuring accuracy

< 8um

Surface light

Two sets of LED ring light

Contour light

Two groups of parallel LED light sources

Software

FlashPro Ultra high speed inspection vision software

Company Information
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement

Our Client&Agent

Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement
FAQ
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement Q1: Are you a factory or trading company ?
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement A1: We are a factory and giving you the quickest reply in 24 hours.
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement Q2: What's your company mainly in?
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement Q3: How to Choose the Appropriate Specification?
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement Q4: Do you accept customized service?
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement Q5: What is your warranty period?
Genesis Series Image Dimension Measuring System with 8um Accuracy, 20M HD Digital Camera, and Automatic Movement A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
