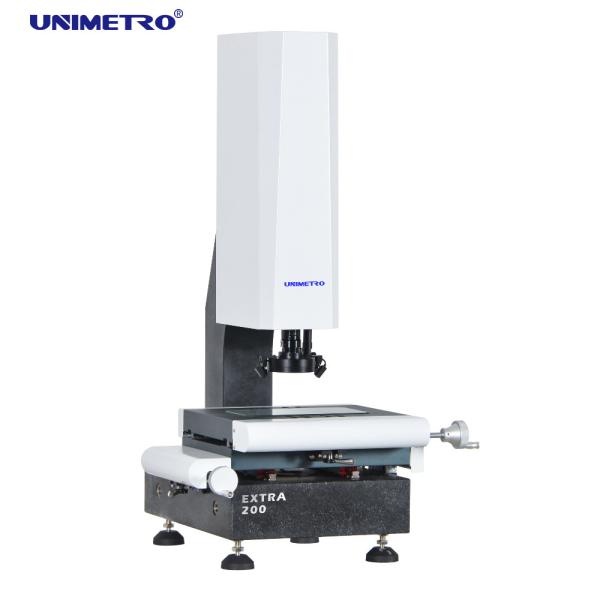

UNIMETRO EXTRA Series Vision Measurement Machine for Accurate 2D Dimension Measuring with Z Axis Auto Focus
UNIMETRO EXTRA Series Vision Measurement Machine for Accurate 2D Dimension Measuring with Z Axis Auto Focus
Specifications
Brand Name :
UNIMETRO
Model Number :
EXTRA
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
40
Delivery Time :
5~15days
Packaging Details :
Wooden case
Price :
Discussible
Product Name :
Vision Measuring Machine
Z axis movement :
Motorized
Z axis movement control :
Keyboard, software
Focus :
Automatic
X,Y Movement :
Manual
Dimension :
550*540*930mm
Measuring range :
200*100*150mm
Measuring accuracy :
2.5+L/100um
Repeatability :
2.5um
Weight :
150kg
Linear scale resolution :
0.5um(0.1um for option)
CCD camera :
HD CCD camera
Description

Manual Vision Measurement Equipment For Height Measurement With Z axis Auto Focus

Features

1) Vision Measuring Machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level.
2) Vision Measuring Machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
3) EXTRA series Vision Measuring Machine is an important instrument used in your products quality control process. It ensures your products dimension accuracy, makes your products more competitive.
4) EXTRA Series Vision Measuring Machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.
5) The Z axis of EXTRA series Vision Measuring Machine is configured with close loop servo motor system, to achieve high accuracy movement control and auto focus function, users are able to control the Z axis movement and image focusing in the software or keyboard, highly increase the measuring efficiency.

Vision Measurement Equipment Application Area

a. Mould industry
b. Automobile manufacturing
c. Medical industry
d. Mechanical manufacturing
e. 3C digital industry
f. PCB production
Etc.

Hardware Configuration

UNIMETRO EXTRA Series Vision Measurement Machine for Accurate 2D Dimension Measuring with Z Axis Auto Focus

◉ 3 axis 0.5um resolution linear scales

◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ Manual pulse generator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
◉ Easy calibration

◉ Multiple angle touching

◉ Fast coordinates system setting

◉ Compatible to full line of Renishaw stylis

◉ CAD module supported(Optional)

◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)

Parameters

Model EXTRA 200 EXTRA 300 EXTRA 400 EXTRA 500
Dimension(mm)(L*W*H) 500*540*930 600*740*980 700*840*980 800*940*980
Measuring range (mm)(X*Y*Z) 200*100*150 300*200*200 400*300*200 500*400*200
Measuring Accuracy (μm) 2.5+L/100 2.5+L/100 2.5+L/100 3+L/100
Repeatability (μm) 2.5 2.5 2.5 3
Weight (kg) 140kg 190kg 240kg 290kg
Image and Measuring CCD 200mm (can be raised according to the requirements of customers)
Lens Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
Magnification 18-195X ( For reference only. With different camera and lens the magnification will be different. )
Field of View 8.1~1.3mm
Working distance 108mm
Linear scale resolution 0.5 μm( 0.1μm for option )
Driving system X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available
Illumination Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for option

Software Functions

UNIMETRO EXTRA Series Vision Measurement Machine for Accurate 2D Dimension Measuring with Z Axis Auto Focus
powerful function, allows the users to achieve fast and precise measuring.
The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
