Optical Linear Scale with 0.0001mm Precision / TTL and 422 Signal Output for VMM, Lathe, and EDM
Optical Linear Scale with 0.0001mm Precision / TTL and 422 Signal Output for VMM, Lathe, and EDM
Specifications
Brand Name :
UNIMETRO
Model Number :
UJC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 per month
Delivery Time :
5 work days
Packaging Details :
Paper box
Price :
Discussible
Grating distance :
20um(0.02mm), 10um(0.01mm)
Grating measuring system :
Projection-type infrared measuring system, infrared wave length: 800nm
Max working speed :
20m/min(1um), 60m/min(5um)
Output signal :
TTL, RS422, ~1Vpp
Working voltage :
5V±5%DC, 12±5%DV, 24V±5%DC
Working environment :
Temperature: -10-45°C, humidity≦90%
Description
Optical Linear Scale with 0.0001mm Precision
TTL and 422 Signal Output for VMM, Lathe, and EDM
The UJ series linear transducer system provides precise position reading for linear movement applications in machine tools and measuring instruments. With resolutions up to 0.1μm, these optical linear scales deliver exceptional accuracy for demanding industrial applications.
Product Overview
Our linear scales are designed for accurate position measurement in linear movement guiding structures. Available in both open and sealed configurations, they are ideal for machine tool retrofitting and measuring instrument applications. OEM and ODM services are available to meet specific requirements.
Available Models
  • Measuring Machines: UJCXF, UJCXE, UJCXFS, UJCXH series
  • Machine Tools: UJCXF, UJCXFS, UJCXE, UJCXK, UJCXG, UJCXGL series
  • Plastic Injection Machines: UJCXEP
  • EDM & Special Applications: Custom sensors for EDM, small holes machines, and wire cut applications
Technical Specifications
Model Resolution Travel Range Max Speed Output Signal
UJCXF1/UJCXFS1 1μm 50-600mm 20m/min TTL, RS422, ~1Vpp
UJCXF5/UJCXFS5 5μm 50-600mm 60m/min
UJCXH 1μm 50-500mm 20m/min
UJCXE1 1μm 50-1000mm 20m/min
UJCXE5 5μm 50-1000mm 60m/min
UJCXG1 1μm 50-3000mm 20m/min
UJCXG5 5μm 50-3000mm 60m/min
UJCXGL5 5μm 3000-6000mm 60m/min
Additional Specifications:
Grating Distance: 20μm (0.02mm), 10μm (0.01mm)
Measuring System: Projection-type infrared (800nm wavelength)
Working Voltage: 5V±5%DC, 12V±5%DC, 24V±5%DC
Operating Environment: Temperature -10°C to 45°C, Humidity ≤90%
Application Example

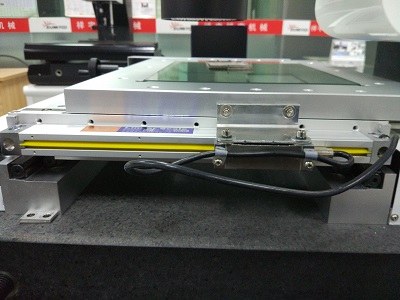

The UJC series linear scales installed on a vision measurement machine:
Optical Linear Scale with 0.0001mm Precision / TTL and 422 Signal Output for VMM, Lathe, and EDM
