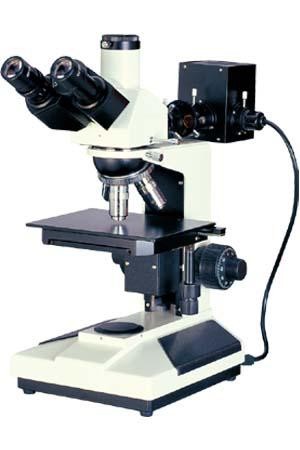

High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
Specifications
Brand Name :
UNIMETRO
Model Number :
U2003 / U2020 / U2030
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100 per month
Delivery Time :
14 work days
Packaging Details :
Wood case
Price :
Discussible
Eyepiece :
Wide field WF10X(Φ18mm)
Eyepieces tube :
Trinocular, Inclination of 30˚ and integrated analyzer
Objective :
20X, 50X, 60X, 100X, Dry for option
Epi- illumination system :
6V 20W, halogen lamp, adjustable brightness
Transmitted-illumination system :
Abbe condenser NA.1.25 Rack & pinion adjustable
Description
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
Product Overview
The U2003/2020/2030 series upright metallurgical microscope is designed for observing surfaces of opaque or transparent objects. Equipped with excellent long working distance plan achromatic objectives and wide field eyepieces, this instrument delivers superior optical performance for research applications in metallography, mineralogy, precision engineering, and electronics.
Key Features
  • Excellent long working distance plan achromatic objectives
  • Wide field eyepieces for enhanced viewing area
  • Multiple illumination modes available for flexible operation
  • Superior optical performance for precise observation
  • Versatile applications across various research fields
Technical Specifications
Component Specification
Eyepiece Wide field WF10X (field number: Φ18mm)
Objective PL L5X/0.12 (WD: 18.3mm) | PL L10X/0.25 (WD: 8.8mm) | PL L40X/0.60(spring) (WD: 3.7mm) | PL L60X/0.75(spring) (WD: 1.34mm)
Eyepieces Tube Trinocular, 30˚ inclination with integrated analyzer
Epi-illumination System 6V 20W halogen lamp with adjustable brightness, integrated field, aperture diaphragm and filter switching device, puller type polarizer
L2003/2030 Filters Equipped with Y, B, G filters and ground glass
L2020 Filters Equipped with Y, B, G, R filters
Transmitted-illumination System Outside field, aperture diaphragm, 6V 20W halogen lamp with adjustable brightness, Abbe condenser NA 1.25 with rack & pinion adjustment
L2030 Transmitted Filters Equipped with B filter and ground glass
L2020 Transmitted Filters Equipped with B, G filters and ground glass
Focus System Coaxial coarse/fine focus system with tension adjustment and limit stopper, minimum division: 2μm
Nosepiece Quintuple backward ball bearing inner locating
Stage (L2003/2030) Double layer mechanical stage, moving range: 75mm×50mm, overall size: 185mm×140mm
Stage (L2020) Double layer mechanical stage, moving range: 75mm×50mm, overall size: 160mm×140mm
Optional Accessories
Accessory Type Options
Eyepiece 10X(Φ18mm) Dividing eyepiece(Φ18mm)
Objective 20X, 50X, 60X, 100X (Dry)
CCD Adapter 0.4X, 0.5X, 1X, 0.5X (With dividing)
Digital Camera Adapter CANON(EF), NIKON(F)
Company Information
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes High-Performance Upright Metallographic Microscope with Multiple Illumination Modes High-Performance Upright Metallographic Microscope with Multiple Illumination Modes High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
Our Clients & Agents
High-Performance Upright Metallographic Microscope with Multiple Illumination Modes High-Performance Upright Metallographic Microscope with Multiple Illumination Modes
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will advise you on suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability on breakable components to ensure product reliability.
Note: The transmitted and reflected illumination system of the L2020 model are controlled independently.
