Specifications
Brand Name :
UNIMETRO
Model Number :
UMDIC-100
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
8 work days
Packaging Details :
Paper box
Price :
Discussible
Objective :
Flat field stress free objectives
Work stage size :
180mm*145mm
Specimen height :
130mm
DIC generator :
Insert type, switchable, the direction can be adjusted 360 degrees
DIC detector :
Insert type, switchable, the direction of the DIC module is set, no need for adjusting
CCD adapter :
1X standard type C
Description

Single Lens Industrial Microscopes DIC Differential Interference Contrast

Features

The UMDIC-100 series defferential interference contrast microscope is using infinity optical system, multiple objectives with long work distance color difference free and stress free for option such as 5X, 10X and 20X magnification. Matching different DIC device for different magnification observing.

The illumination is using high brightness and long life cycle LEDs, smart structure and safe operation. Specially fit for detecting on the production line.

Single eyepiece observing is using flat field eyepiece with large field, inclined 30 degrees, synchronous output with the camera. It is using reliable mounting design, which is compatible with CCD or camera with different magnification.

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Working principle

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Double layers stage

Base dimension: 300mm*250mm

Stage size: 180mm*145mm

Moving range: 35mm*30mm

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Illumination

Using high brightness white LED co-axial illumination, external power adapter with wide voltage range, output voltage: 85V - 265V 50/60Hz AC. Rotatable 360 degrees polarization generator included.

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Photography

0.5X, 1X standard C type adapter, 2X digital camera for option, customized camera adapter based on customers’ requirement.

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

DIC observing

The interference height is calibrated between the DIC module and the compatible objective, no other adjusting should be required, convenient for the users. The interference color change can be adjusted by the accurate ball screw rotating.

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Specification

Objective Flat field stress free objectives.
PL 10X/0.25 Work distance 20.2 mm
Focus system Coaxial rough/fine adjusting focus system, rough focus knob tension adjustable, minimum division of fine focusing: 2μm
Work stage

Double layer work stage

Mechanical stage overall size 180mm*145mm

Moving range Transersal 35mm Longitudinal 30mm maximum heght of the specimen up to 130mm
DIC observing module 5X, 10X compatible, interference color adjustable, no need for vertical height adjusting.
DIC generator Insert type, switchable, the direction can be adjusted 360 degrees.
DIC detector Insert type, switchable, the direction of the DIC module is set, no need for adjusting.
Light source Using high brightness LEDs, with wide voltage range power adapter, output voltage 85V - 265V 50/60Hz AC.
CCD adapter 1X standard type C

Optional Accessories

Objective Flat field stress free objectives.
PL 5X/0.10 Work distance 18.2 mm 2260205
PL 20X/0.40 Work distance 8.0mm 2260120
CCD adapter 0.5X 810004
2X digital camera adapter 840005
Camera DV-2 With USB output (1.3M,2.0M,3.0M,5.0M,9.0M pixel) /

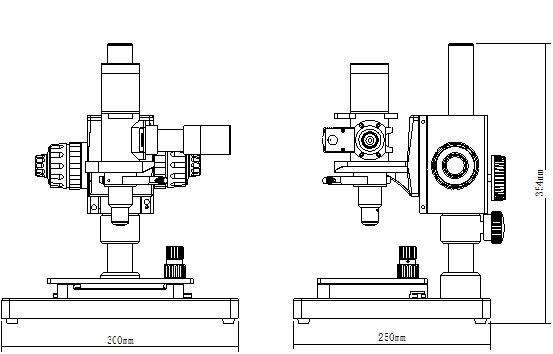

Dimension Drawing

Optical Single Lens Industrial Microscope DIC Differential Interference Contrast

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
improved a lot on some breakable parts. You can rest assured of our product quality.
