130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection
130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection
130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection
130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection
Specifications
Brand Name :
UNICOMP
Model Number :
AX9100max
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
can negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100set/montrh
Delivery Time :
15 days
Packaging Details :
Unicomp Wood.
X-ray Tube Type :
sealed type
Pixel Size :
84μm
Pixel :
1536*1536
Footprint :
1455(W)×1760(D)×1945(H)mm
Detector :
High Resolution FPD
Description

It is widely applied in numerous fields such as BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Modules, Cables, and Photovoltaic Industry, to name a few.

  • Application Fields

130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection

  • Functions and Feature

130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection

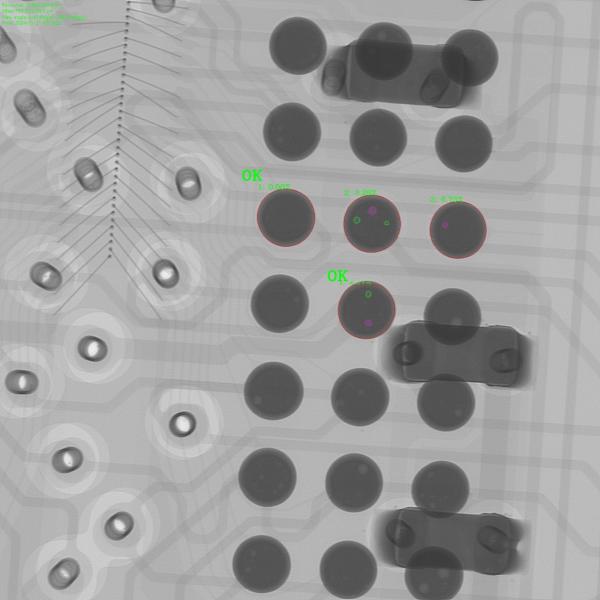

  • Inspection Image

130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection

System Summary
Footprint 1455(W)×1760(D)×1945(H)mm
Machine Weight 2400 kg
Power Supply
AC 110~220V, 50/60Hz
Packaging Dimension 1710(W)×1950(D)×1875(H)mm
Packing Weight 2600 kg
Power Consumption 4 kW
X-Ray Tube
Tube Type Type Sealed type
Max. Power Output 65W
Voltage 0~130kV (Adjustable)
Focus Spot Size ≤7μm
Imaging System
Detector High Resolution FPD
Pixel Size 84μm
Effective Detection Area 129*129mm
Frame Rates 20fps
Pixel 1536*1536
System Magnification 1600X
Software
One-click Zoom in & out Fast & Automatic navigation of ROI region
Fixed-point following during FPD tilting Table automatic following while Axis tilting seperately
Algorithms For Image Super-Resolution Reconstruction Intelligently improve the overall image clarity with one-click
Automatic images comparison Intelligently adjust overall image contrast with one-click
Variety of filter processing algorithms Sharpening, enhancement, color reversal, denoising image preprocessing functions
Motion Control System
Movement Control Method Dual Joystick, Keypad & Mouse
Max. Loading size Ф620mm
Max. Inspection size 600*450mm
Tilting Inspection Maximum 60°(Tube & Detector)
Objective Stage Horizontal Rotation 360°
Industrial PC
Monitor(Dual) 27 "4K HD display
Operating System Windows 10 64bit
Hard disk 1TB
RAM 16G
CPU model Intel i7 Processor
Other Features
Door Open Manually
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
Authority Management Fingerprint Access Management System, and Support Password Accessing
X-Ray Safety <1μSv/h (Meets All International Standards)

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

  • Dimensions and Appearance

130KV Micron Focus Spot Size Tube X-Ray Machine Unicomp AX9100 Upgraded Model AX9100MAX With Dual Computers For PCB&BGA Inspection
