UNH Series NDT X-RAY Testing Equipment( DR)
UNH Series NDT X-RAY Testing Equipment( DR)
Specifications
Brand Name :
UNICOMP
Model Number :
UNH225
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
Can Negotiate
Payment Terms :
T/T,L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Tube Voltage :
225KV
Machine Weight :
20000kg
Power Supply :
380AC/50Hz
Power :
9kW
Tube Type :
Open Tube
pixel size :
100μm
Description

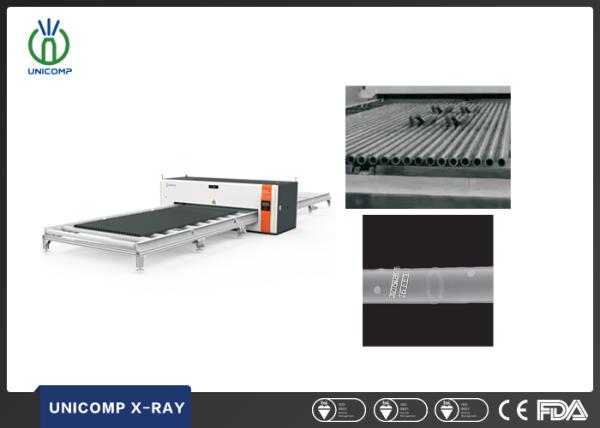

UNH Series NDT X-RAY Testing Equipment( DR)

Product Description:


The Type UNH X-ray Intelligent Inspection System, independently developed by UNICOMP, is a dedicated solution for tube panel weld inspection. It is primarily applied to defect detection in small-diameter tube panel welds, capable of identifying: porosity, cracks, slag inclusions, lack of fusion, and incomplete penetration. This system represents a highly efficient, fully automated online inspection solution.

Features:

  1. Fully automated intelligent operation with high reliability: 24/7 continuous operation and ultra-low failure rate.
  2. High Security: High-grade protection,radiation is far below the nation standard.Set up withmultiple safety measures.

Technical Parameters:

Product Name: UNH Series NDT X-RAY Testing Equipment( DR)
Dimensions: 6500mm*2600mm*2400mm(L*W*H)
Machine Weight: 20000kg
Effective Imaging
Area
250*300[mm]
Tube Voltage: 225KV
Focal Spot Size
0.4mm/1.0mm
Training: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Services: Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others.

Support and Services:

Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.

FAQ:

Q: How about the package? Is it safe during the delivery?

A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.


Q: Do you provide the Warranty? How about the after-sales service?

A: 1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.


Q: If we come to your factory if you will provide free training?

A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.


Inspection Images:

inspection pictures are highly visible and can visually show the existence of bubbles, cracks ,impurities, loose and
other internal defects in the casting products.
