Specifications
Brand Name :
Unicomp
Model Number :
UNX4015N
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Price :
USD
Payment Terms :
T/T,L/C
Supply Ability :
100 pcs per month
Delivery Time :
45 work days
Packaging Details :
Unicomp package
Machine weight :
450kg
X-ray tube :
80kv,210W/350W
Power Supply :
AC 220V, 50Hz
Max. Loading weight :
10kg
X-ray detector :
0.1mm/0.2mm/0.4mm/Single viewDual viewTDI
Conveyor Speed :
10-70M/min
Heavy load Conveyor Speed :
10-40M/min
Description

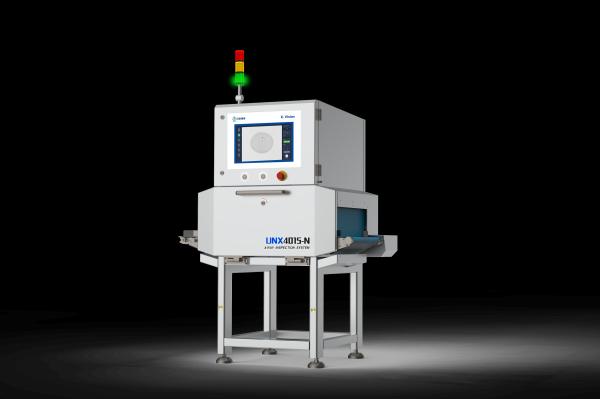

UNX4015N X-Ray Food Inspection System
High resolution food scanner machine designed to detect glass, ceramic, and other foreign materials inside chicken breast and various food products.
Product Applications
The UNX4015-N X-ray system is specialized for detecting foreign matter contaminants in small bags and lightweight products including:
  • Candy, chocolates, and confectionery
  • Fresh meat, poultry, and seafood
  • Vegetables and fresh produce
  • Pasta, instant noodles, and bread products
  • Biscuits, nuts, and dried foods
  • Ham sausage, beef jerky, and processed meats
Key Features
  • Easy to Operate: One-button start/stop with optional default product settings
  • High precision automatic foreign object detection for metal, ceramic, glass, bone, shell and other contaminants
  • Sensitivity adjustment, alarm management, and comprehensive data statistics reporting
  • Industry-leading detection sensitivity with AI-based intelligent algorithms
  • Tool-free maintenance for conveyor belt and protective curtains
Technical Specifications
Equipment Specifications
Dimensions 1140(W) × 1160(D) × 1975(H) mm
Machine Weight 450 kg
X-ray Tube 80kV/210/350W
Power Supply AC 220V, 50Hz
Maximum Loading Weight 10 kg
X-ray Detector 0.1mm/0.2mm/0.4mm/Single view/Dual view/TDI
Channel Size 400mm(W) × 150mm(H)
Conveyor Belt Speed 10-70 M/min, Reload speed 10-40 m/min
Usage Environment Temperature 5~40℃, Relative humidity <80%
Detection Capability
Detection Accuracy SUS BALL ≥ ø0.3mm
SUS wire ≥ ø0.2×2mm
Glass ball ≥ ø1.0mm
Ceramic ball ≥ ø1.0mm
System Computer
Ports 1×LAN, 2×USB
Industrial PC 15.6" LCD display; Windows 10
Optional Configuration
Rejector Options Sound-light alarm, flipper, dropout, air jet, pusher, chute, shuttle
Other Specifications
Ingress Protection Channel: IP66, Others: IP65
X-Ray Safety <1μSv/h
X-ray Imaging
High resolusion food scanner machine Unicomp UNX4015N detect glass ceramic inside Chicken breast
UNX4015N X-ray Detection Interface

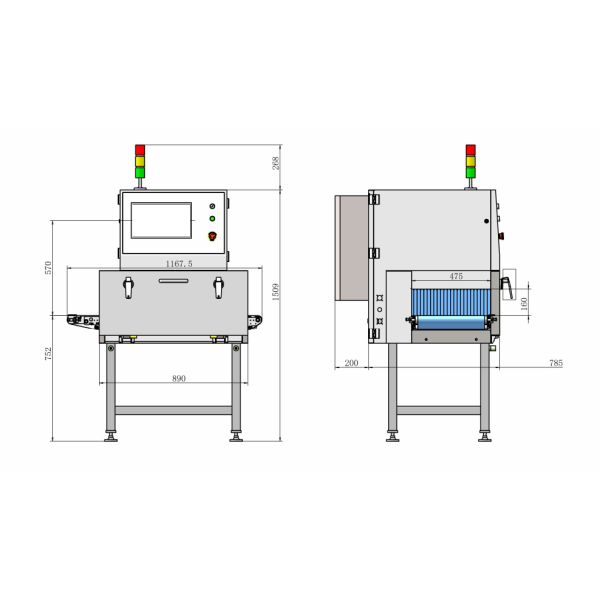

Dimensions and Appearance
High resolusion food scanner machine Unicomp UNX4015N detect glass ceramic inside Chicken breast
UNX4015N Equipment Footprint and Design
