UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket
Specifications
Payment Terms :
T/T,L/C
Application :
Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Size :
1550mm*1068mm*1794mm (L*W*H)
Brand Name :
UNICOMP
Power Consumption :
6kW
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Model Number :
UNS160
Weight :
1.5T
MOQ :
1Set
Delivery Time :
30 days
X-ray Leakage :
< 1uSv/h
Price :
can negotiate
Tube Voltage :
160KV
Supply Ability :
10 sets per month
Name :
X-ray Inspection Machine
Certification :
CE
Industry :
Industry Nondestructive Testing
Place of Origin :
China
Description
UNS160 X-ray Inspection Machine for Cast Iron Pipe Bracket
Advanced real-time NDT X-ray equipment designed for comprehensive quality control of automotive components, industrial parts, and cast iron pipe brackets.
Applications
  • Cast parts and pressure vessels
  • Steel pipe, cylinder, and wood components
  • Epoxy resin defect detection
  • Wheel, tires, and metal parts inspection
Technical Specifications
System Parameters Dimensions 1550mm*1068mm*1794mm (L*W*H)
Equipment weight 1.5T
Power 6KW
Load weight 30kg
Power Supply 380AC/50Hz
Packaging Dimension 1820*1560*2150mm
X-ray leakage dose rate ≤1uSv/h
X-ray Tube Specifications
Tube voltage 160kV
X-ray Tube Type Sealed
Power 480W
Focal size 0.5mm
Detector Specifications (FPD Selection)
Pixel matrix 3072mm*3072mm
Pixel size 139μm
Software Functions
Image Processing
Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display current mouse pointer image coordinate and gray value.
Image Measurement
Distance, radius, polygon, angle measurement; arrows and text labels; save processed images.
Motion Control
Speed adjustment of each moving axis; CNC programming; manual operation.
Additional Functions
  • Save detection time of bulk workpieces via CNC programmable control
  • No dead angle detection with C-arm five-axis motion detection mechanism
  • Servo stepper motor drive for operational stability
  • Complete protective functions including voltage regulator, isolation, filtering, and grounding
  • Industrial cloud interface for real-time data and picture upload with traceability and big data analysis (optional)
Key Features
  • Strong penetration, high reliability, low breakdown, long life
  • High definition, resolution FPD
  • Multi-functional workstation with 360° rotation and shift
  • High automation with fast detection speed
  • User-friendly software design with customizable function development

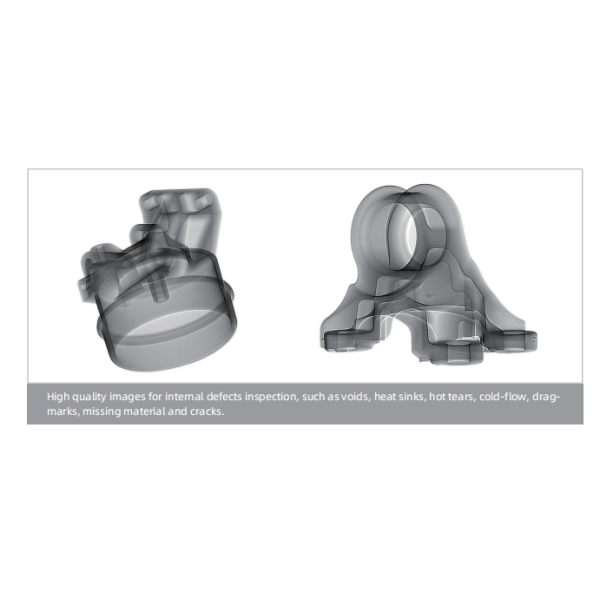

Inspection Images
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket

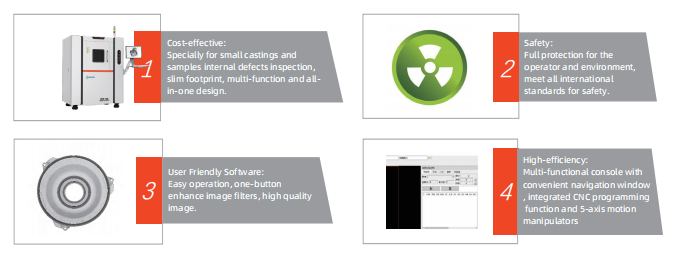

Features Overview
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket
Detailed Features
UNS160 X‑ray Inspection Machine NDT Non‑Destructive Testing Equipment for Cast Iron Pipe Bracket

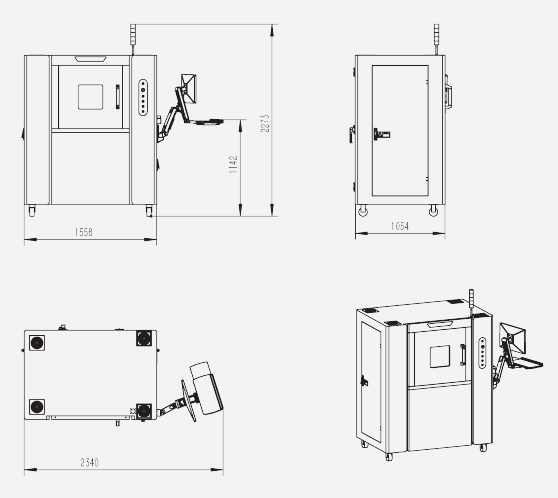

Dimensions and Appearance
Our Services
  • Help customers analyze product projects and provide detection solutions
  • Free sample detection testing
  • Professional detection solutions
  • Skilled jig design services
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance promise
  • 24-hour response via email and other channels
Frequently Asked Questions
How about the package? Is it safe during delivery?
All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
Do you provide warranty? How about after-sales service?
1-year warranty free for spare parts with lifetime technical support. Professional after-sales team available with assistant videos provided.
If we visit your factory, will you provide free training?
Yes, we warmly welcome factory visits and provide complimentary training sessions.
